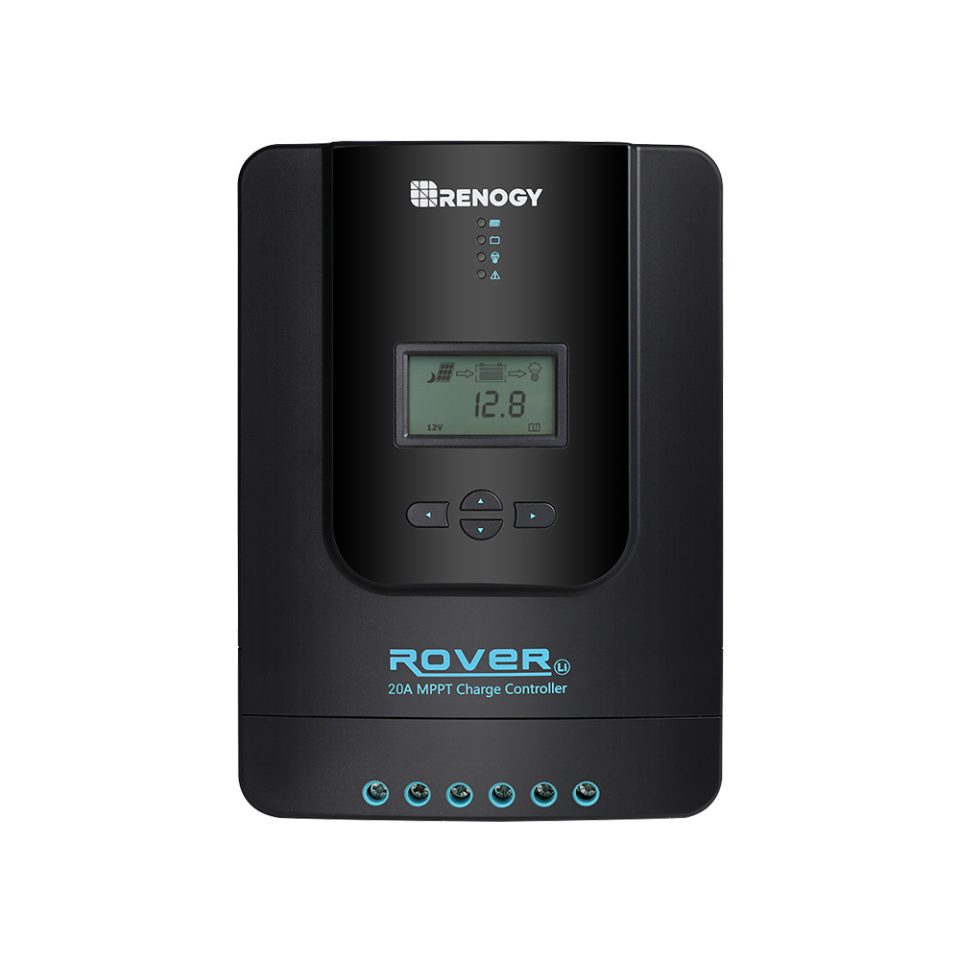

Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT)
Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) - Image 2
Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) - Image 3
Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) - Image 4
Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) - Image 5
Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) - Image 6
Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) - Image 7

Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT)

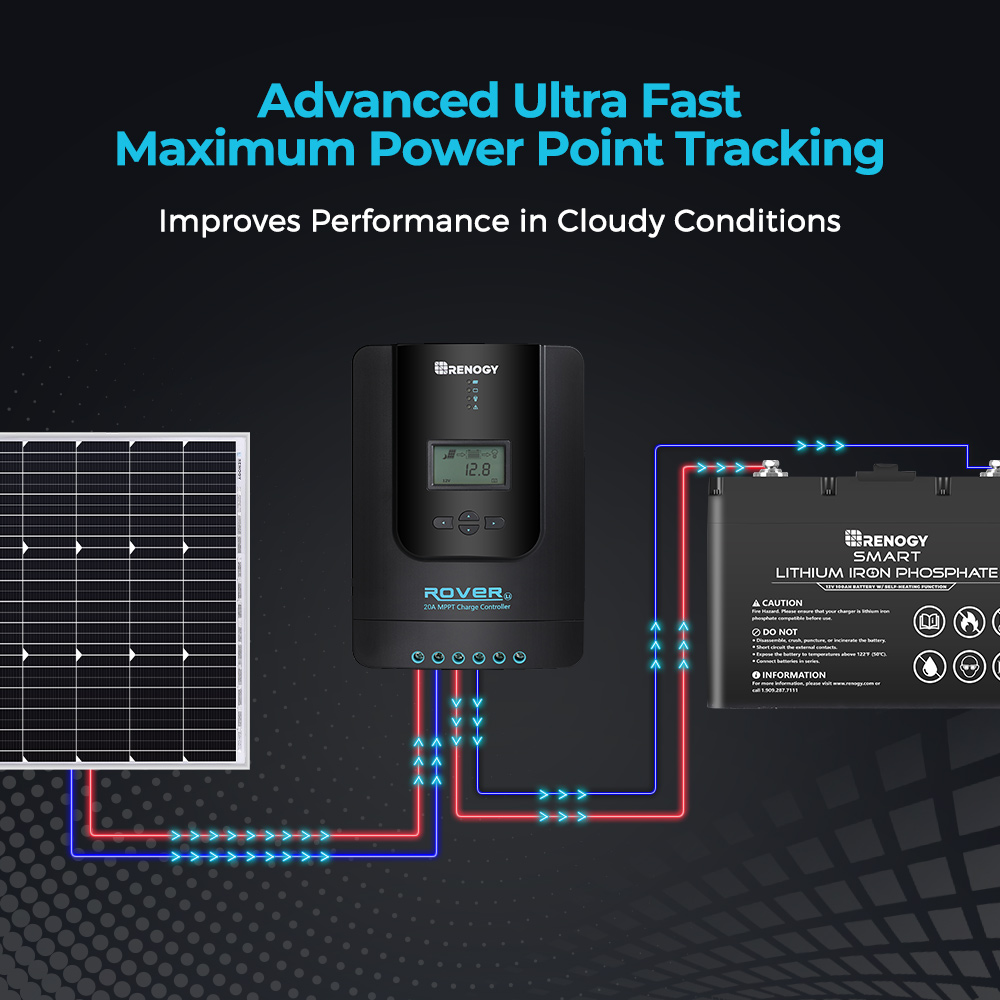

  • High System Efficiency: Optimized tracking, power conversion, and heat dissipation for superior performance.

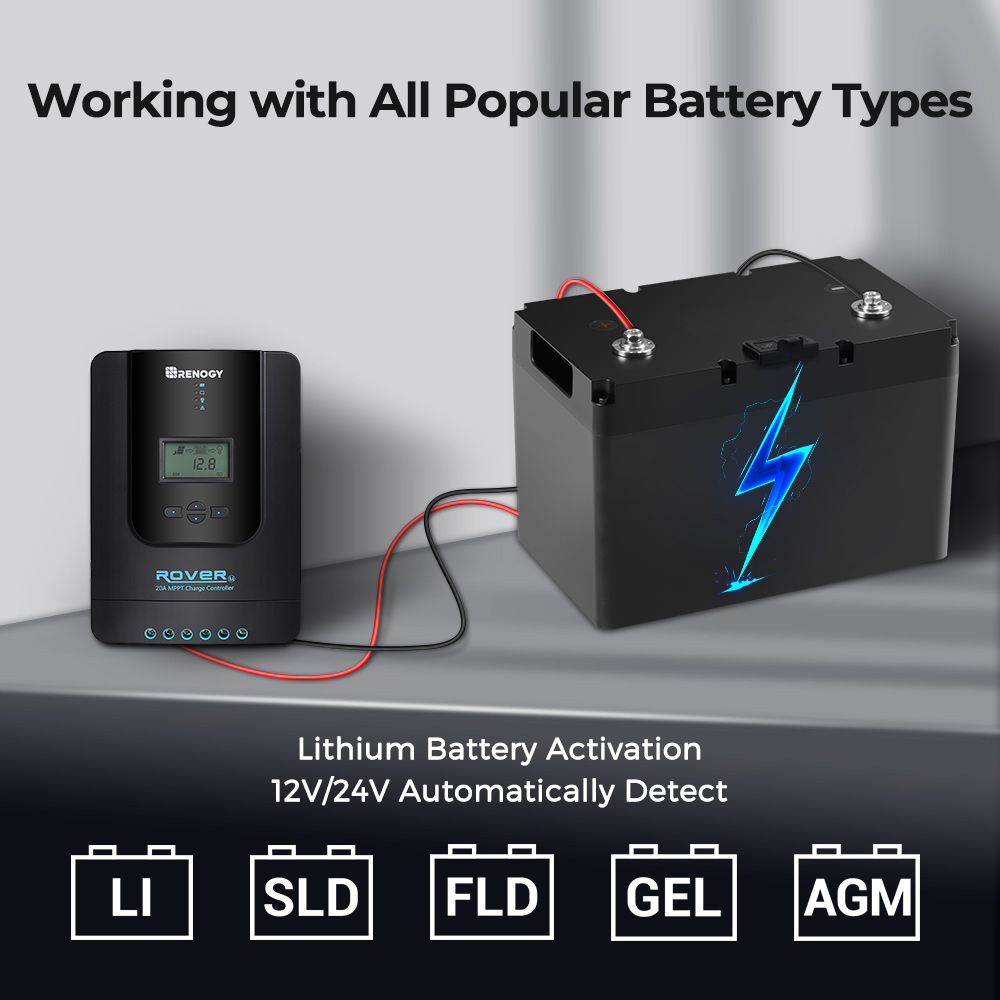

  • Smart 4-Stage Charging: Automatically detects 12V/24V systems and delivers precise multi-stage charging.

  • Advanced Safety Protections: Multiple electronic safeguards protect your system from faults and failures.

  • Remote Monitoring Ready: Compatible with RS485 communication for real-time system monitoring and control.

£91.99

Description

Robust Charging. Serious Value.

Rover 20A MPPT Solar Charge Controller

Room for Expansion

Visualized Energy Data

Rapid Heat Dissipation

The Rover charge controller excels with its rapid heat dissipation, ensuring efficient performance in even the most demanding environments. Its ability to quickly release heat helps maintain peak performance, protecting your batteries and system components.

Powering Your Adventures Faster

Experience unmatched charging efficiency with our MPPT charge controller. It maximizes every bit of sunlight, ensuring optimal battery charging. In just 4.9 hours, it can fully charge a 12V 100Ah battery, making it the ideal companion for your off-grid adventures.

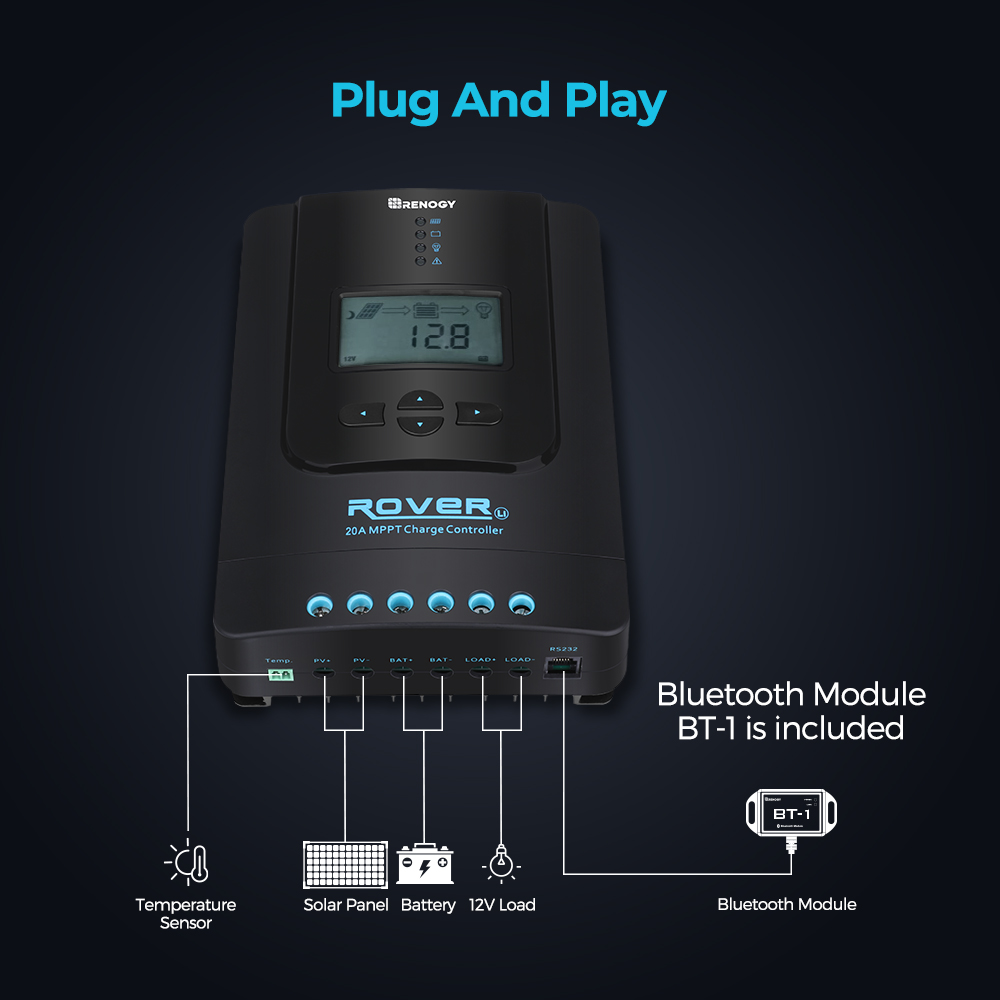

Works with Bluetooth

Control Your Energy From Distance

Versatile Load Control

Rover 20A Charge Controller features Auto-On/Off Mode, Timer Mode, Manual Mode, Test Mode, and Always-On Mode, further maximizing your system flexibility.

What’s in the box

The Renogy Difference

Going solar is not that complicated. Renogy is here to help you build your system faster so you can roam further.

Specifications

Renogy Rover 20A MPPT Solar Charge Controller (RNG-CTRL-RVR20)
Electrical Parameters Electrical Parameters
Nominal System Voltage 12/24V (Auto-Detect for Non-Lithium Batteries) Rated Charge Current 20A
Max. PV Input Voltage 95 VDC Max. PV Input Power 12V/260W, 24V/520W
Power Consumption <100mA/12V; <58mA/24V Max Battery Voltage 32V
Ground Type Negative Electrical Protection Overcharging, over-discharging, overload, short circuit; capable of charging over-discharged lithium batteries
Environmental Data Environmental Data
Protection Level IP32 Operating Temperature Range -35°C to 45°C / -31°F to 113°F
Storage Temperature Range -35°C to 75°C / -31°F to 167°F Operating / Storage Humidity ≤ 90%, No Condensation
Temperature Compensation -3mV/°C/2V
Mechanical Specifications Certifications & Warranty

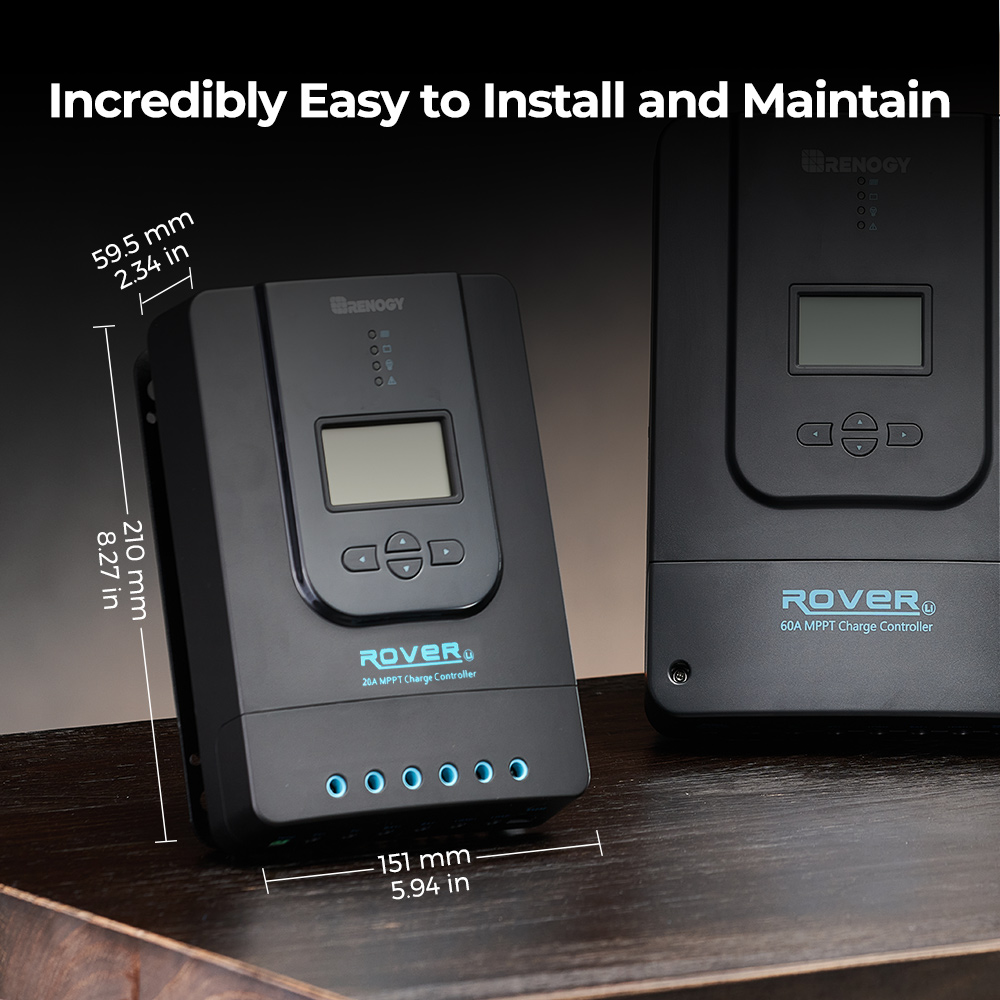

Dimensions 210 x 151 x 68 mm / 8.27 x 5.95 x 2.69 in Weight 3.1 lbs / 1.4 kg
Max. Terminal Size 8 AWG / 10mm² CE YES
FCC Part 15 Class B YES Warranty 3 Year Material & Workmanship
