200W Flexible Solar Panels

Description

200 Watt 12 Volt Flexible Monocrystalline Solar Panel

Empowering Your Off-Grid Life

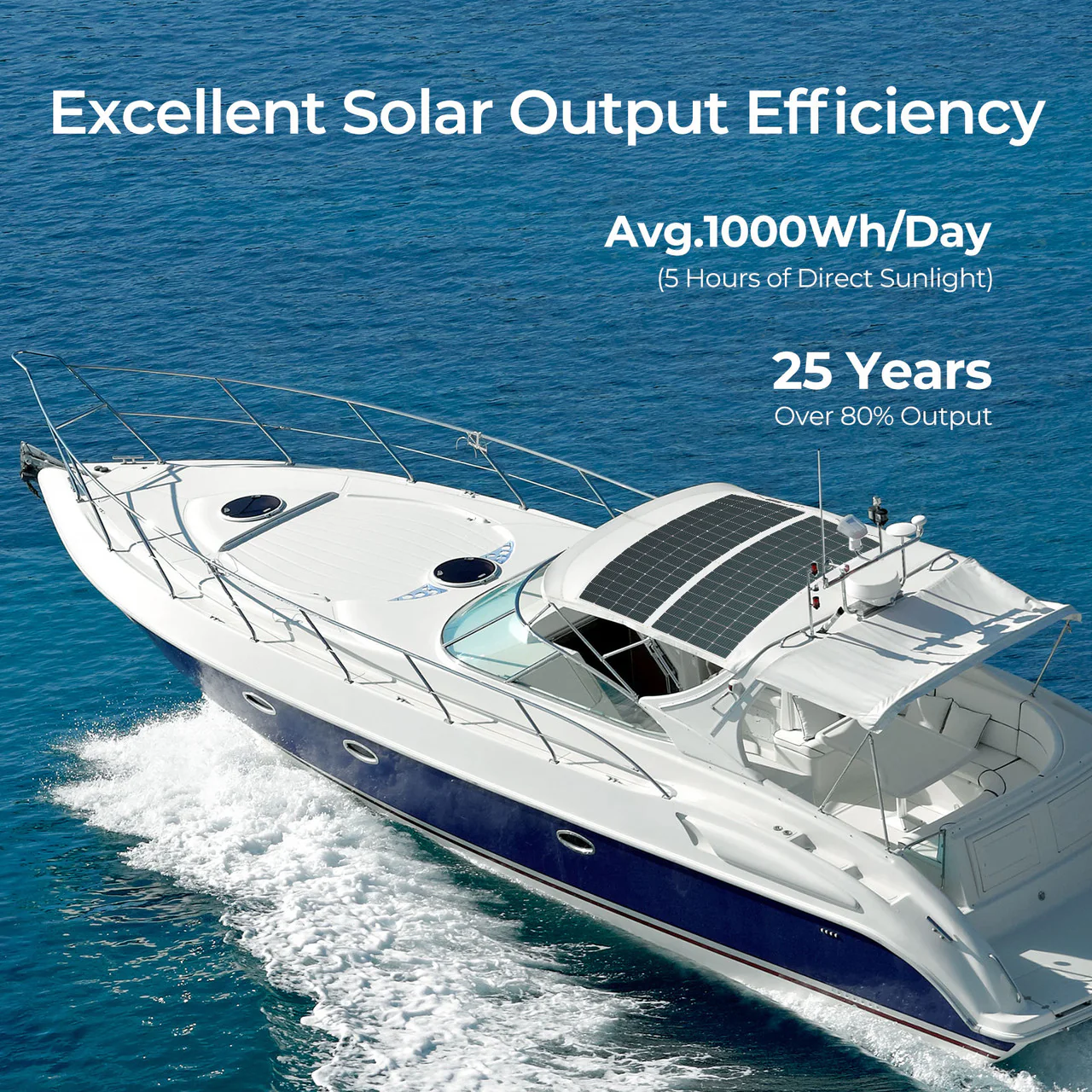

With an average daily electricity output of 1000Wh (based on 5 hours of direct sunlight), the Renogy 200W Flexible Mono Solar Panel ensures reliable and sustainable power for off-grid living, maintaining over 80% output efficiency even after 25 years of use.

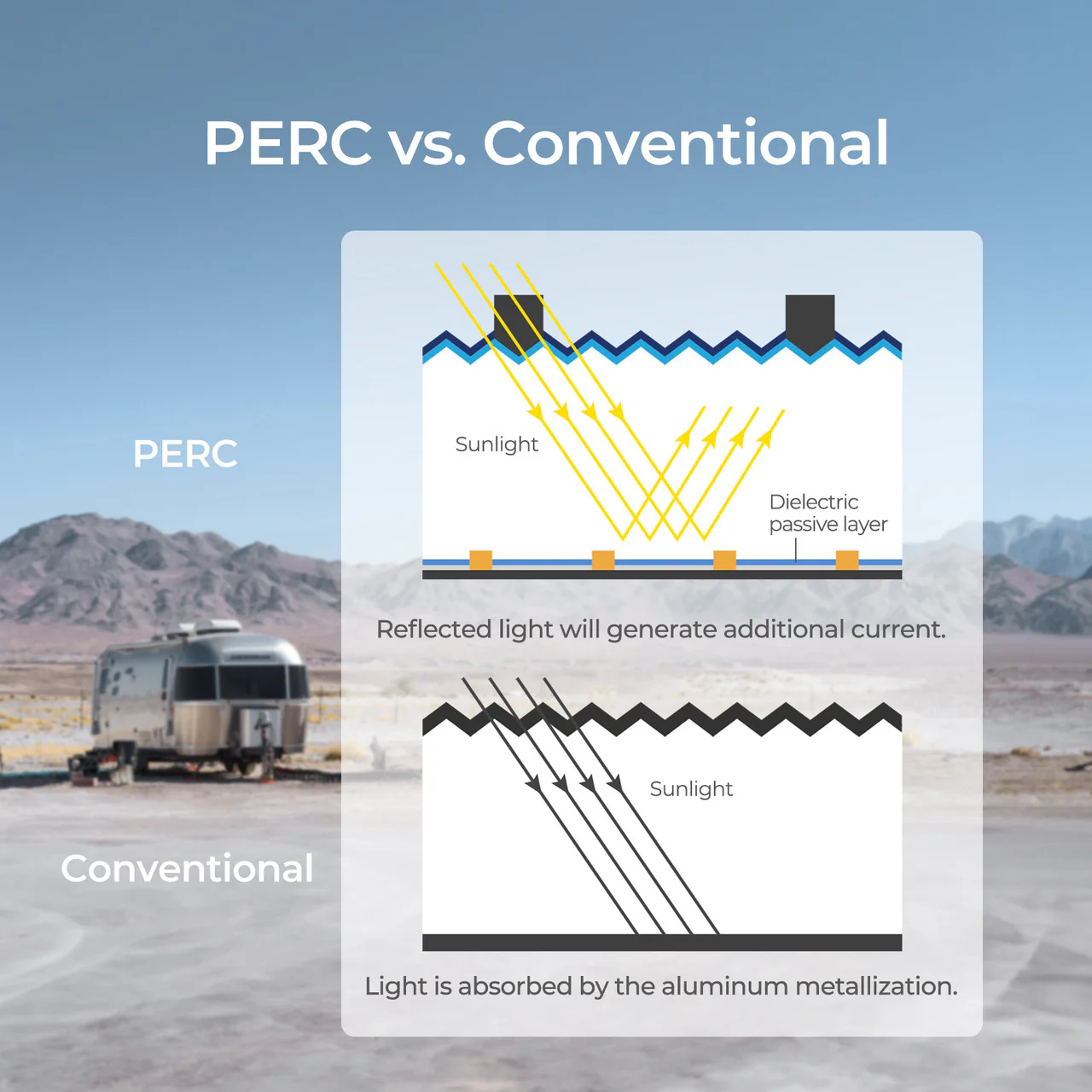

Reflect sunlight back into the solar cell and achieve a better conversion rate of 22%.

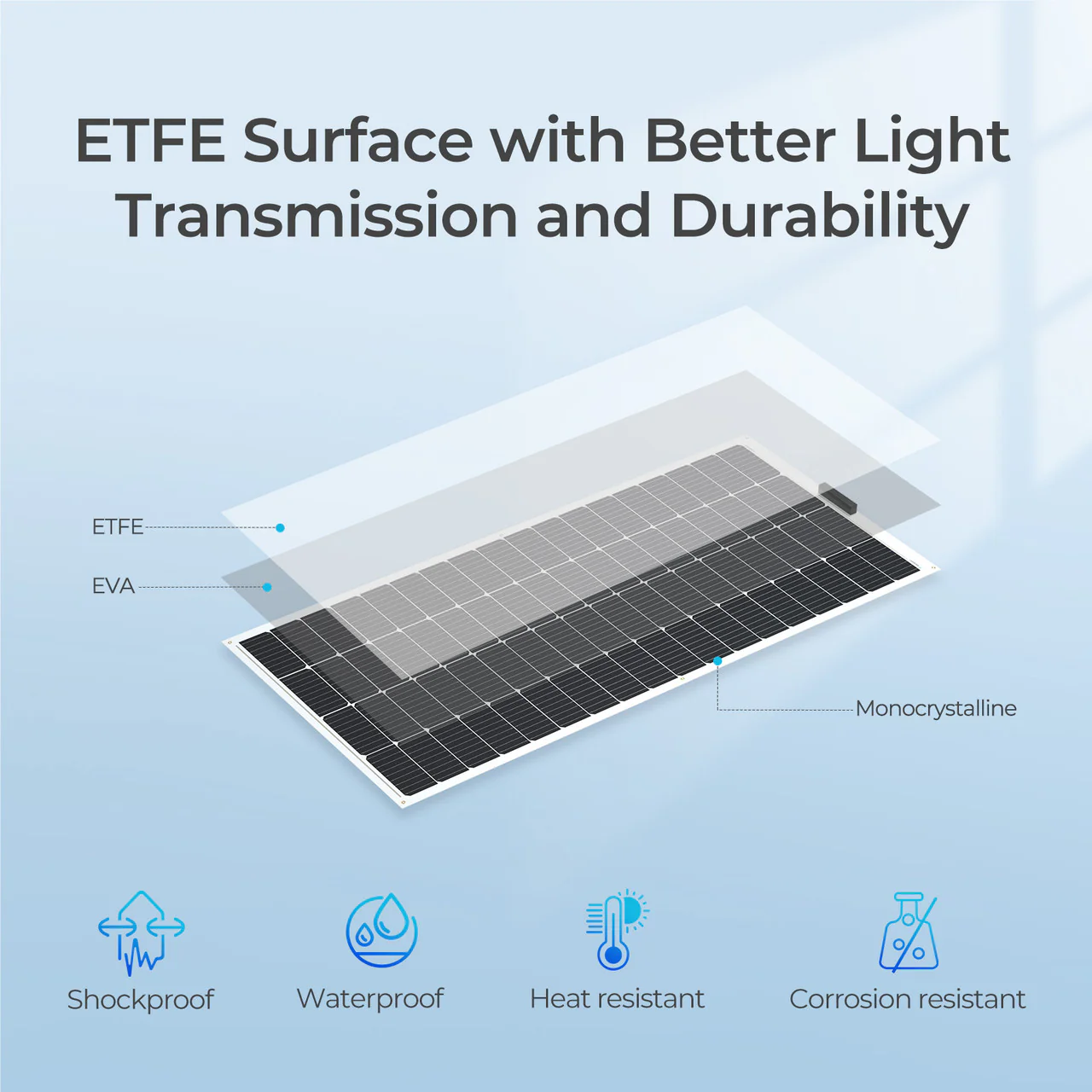

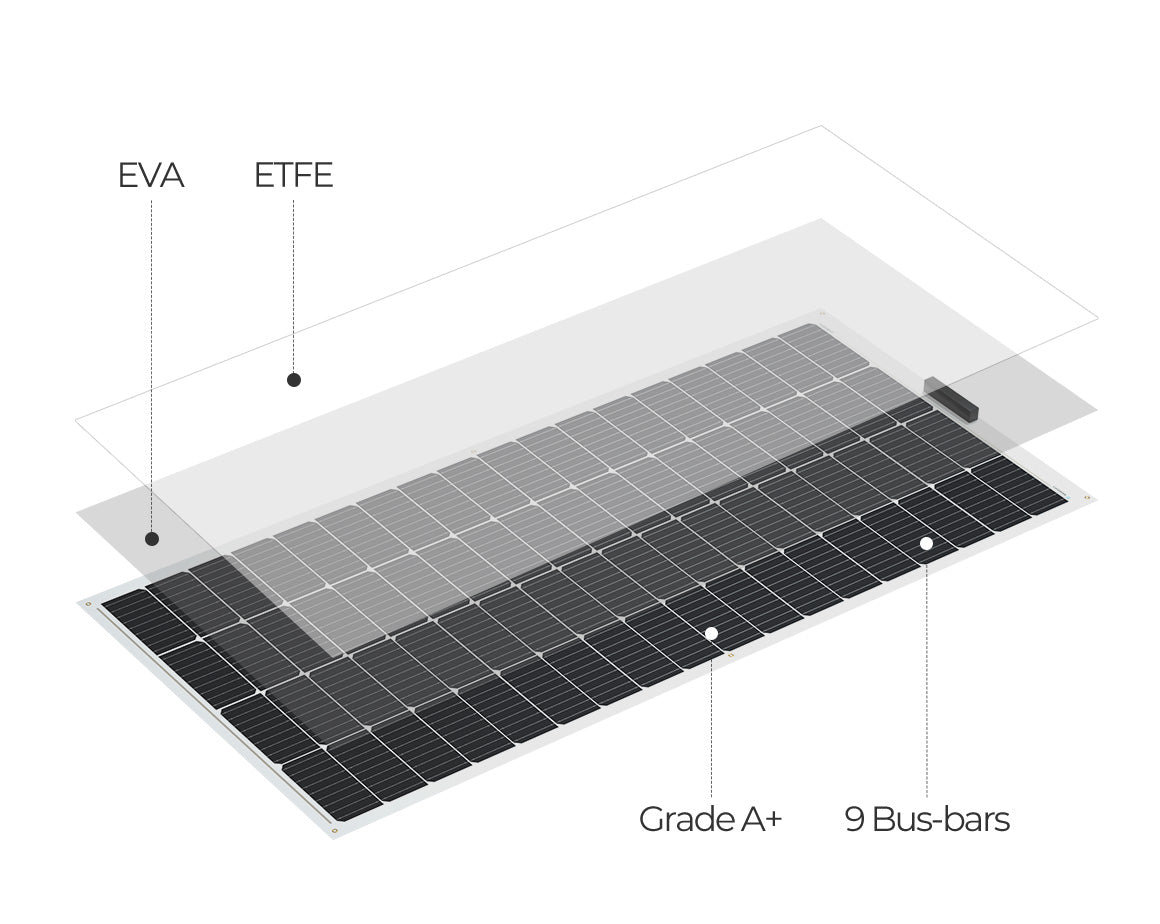

The ETFE surface and 9 bus-bar cells enhance light transmittance and improve the conductivity of the solar panel.

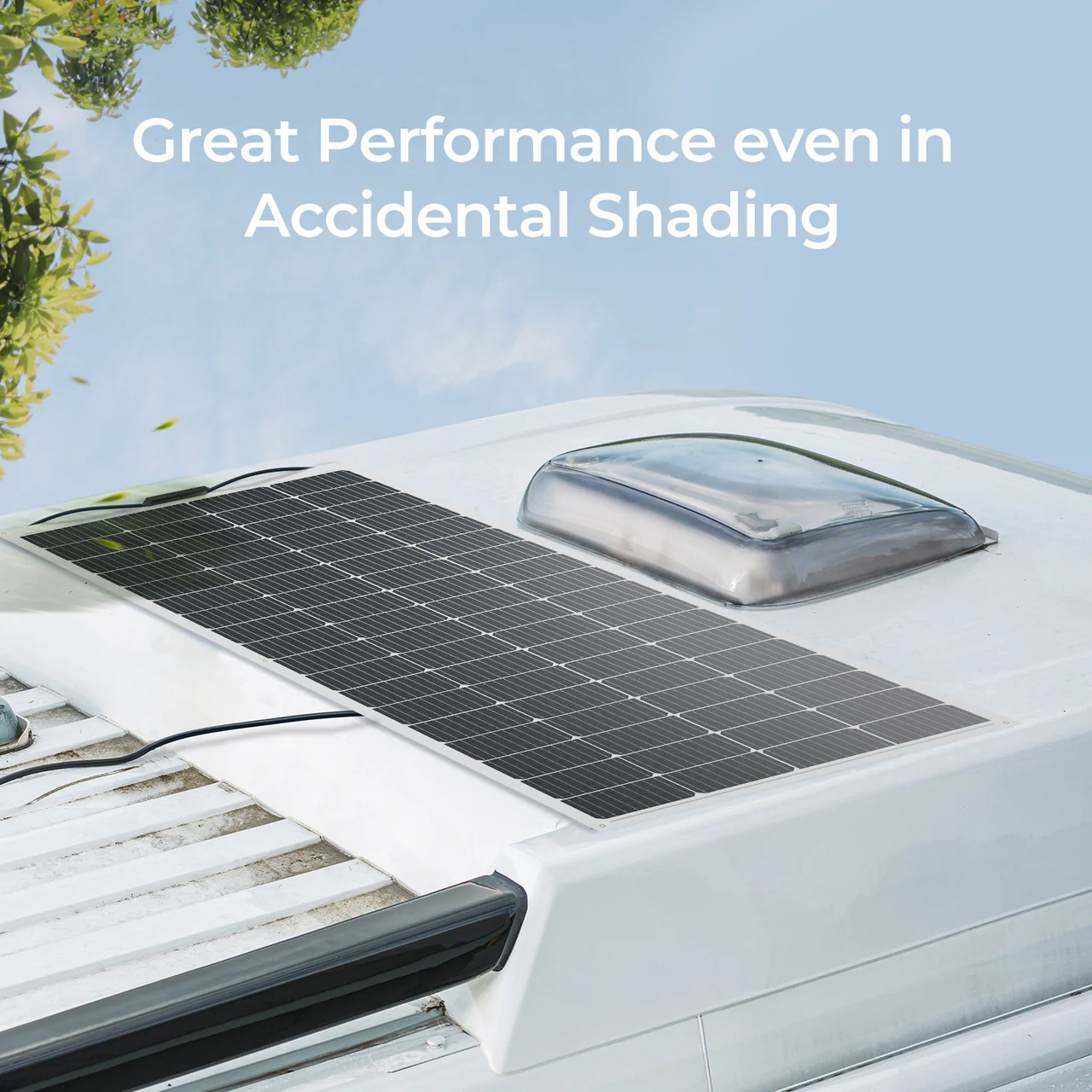

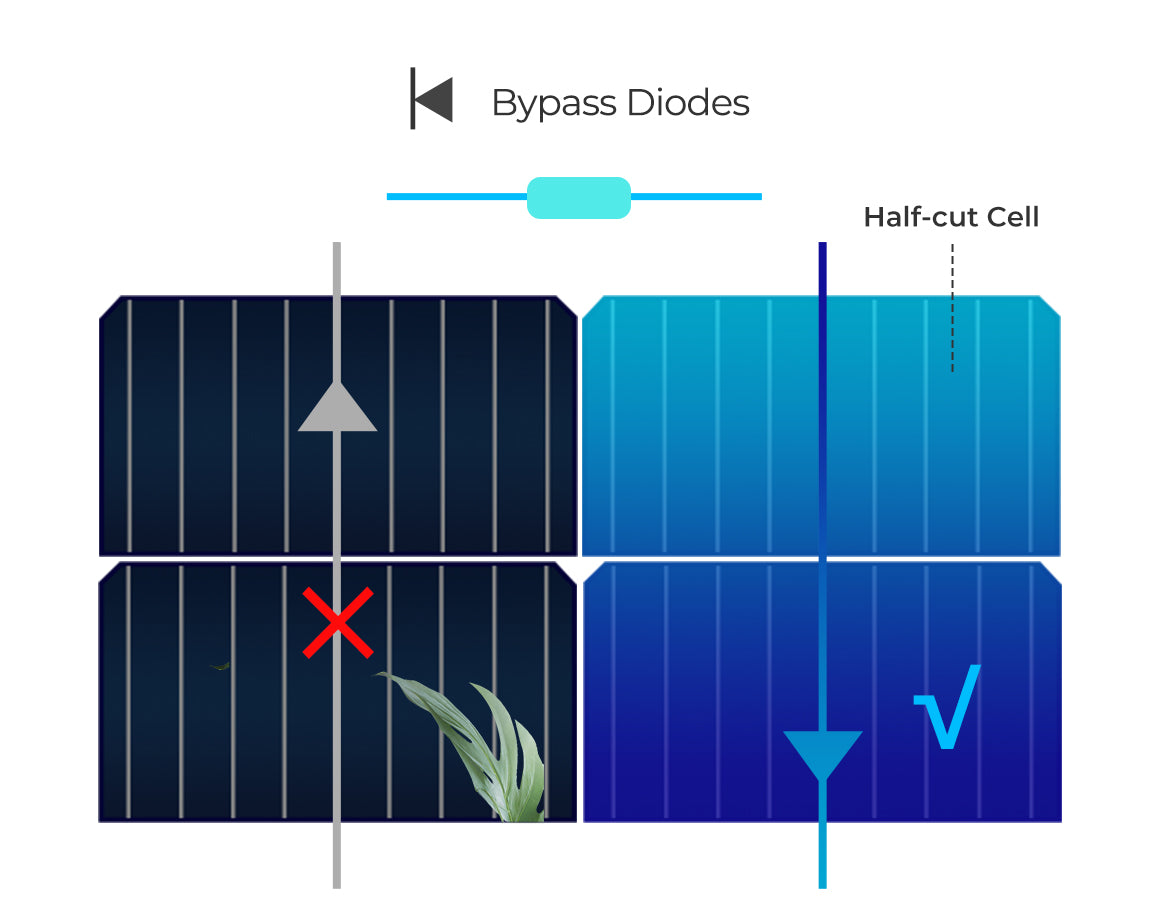

Higher wattage output is achieved by reducing internal resistance. Better resistance to hotspot effect. Consistent solar conversion during accidental shading.

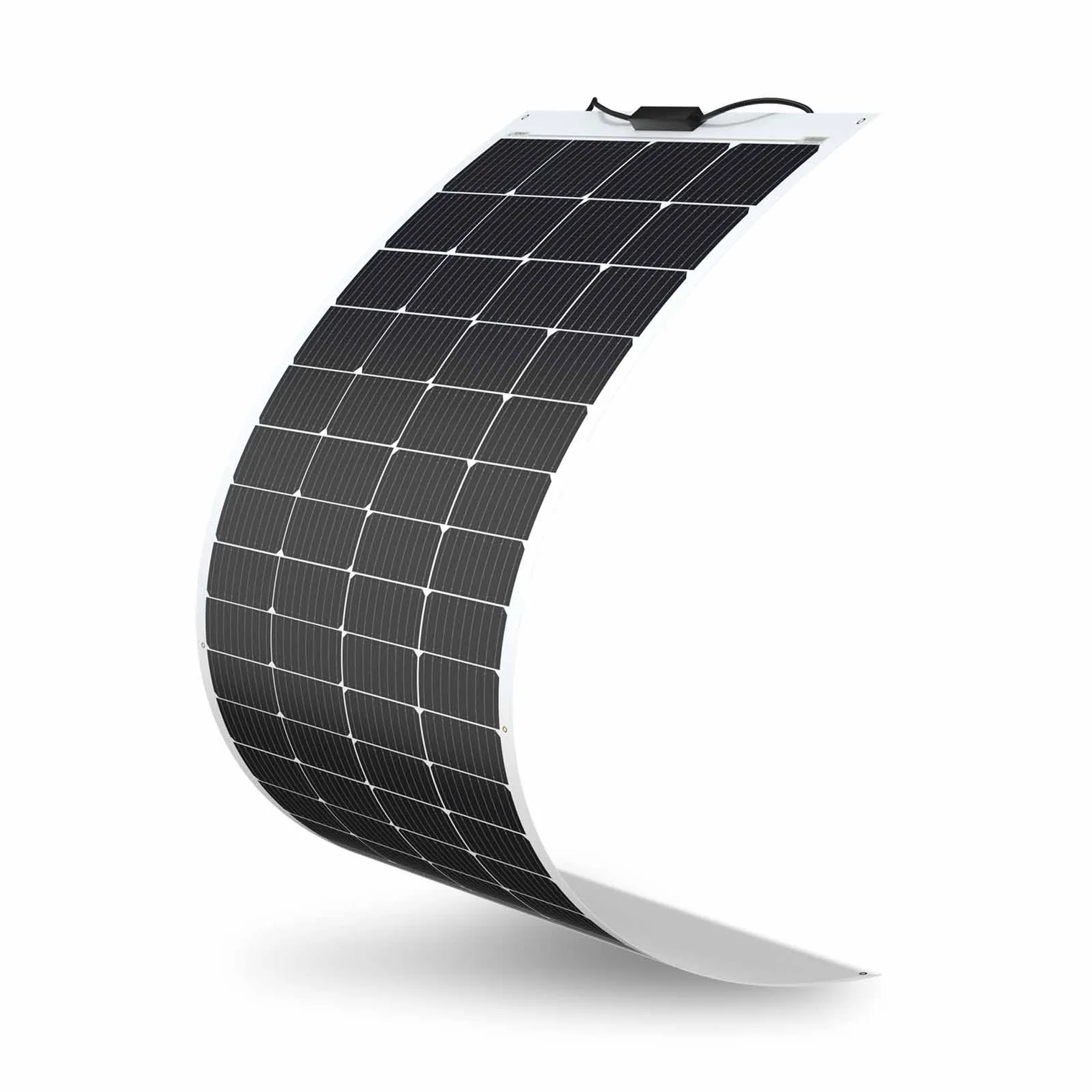

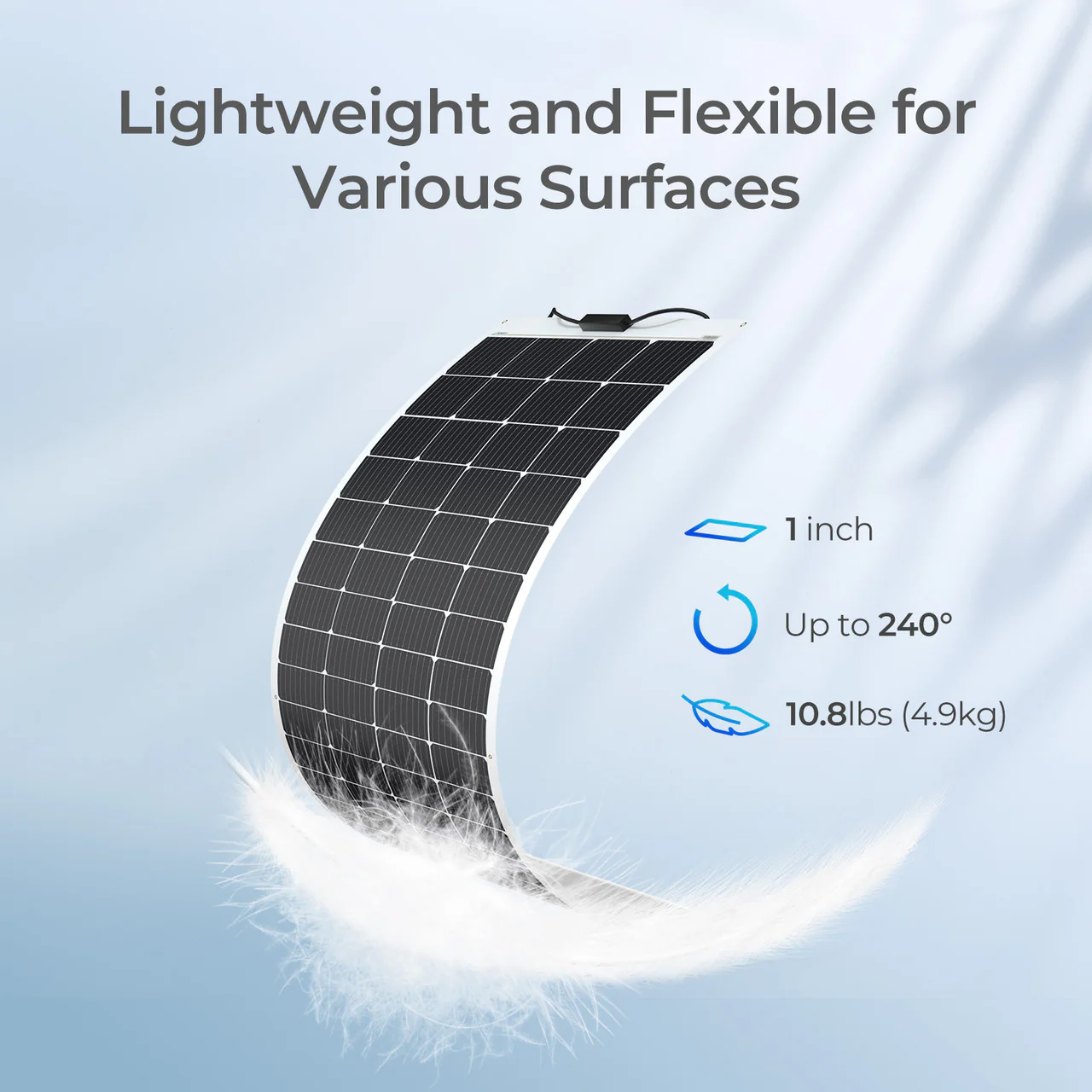

Flexible for Different Surfaces

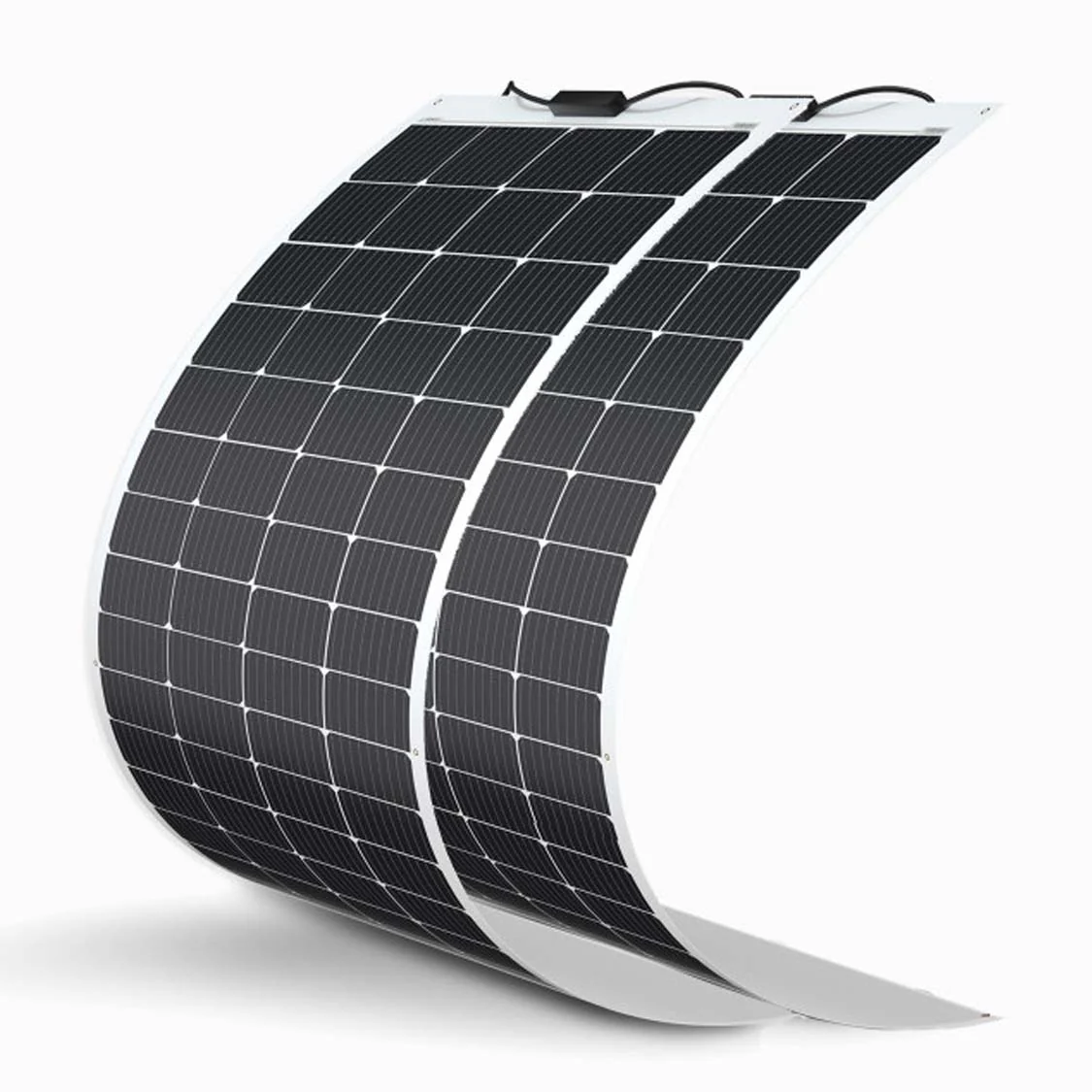

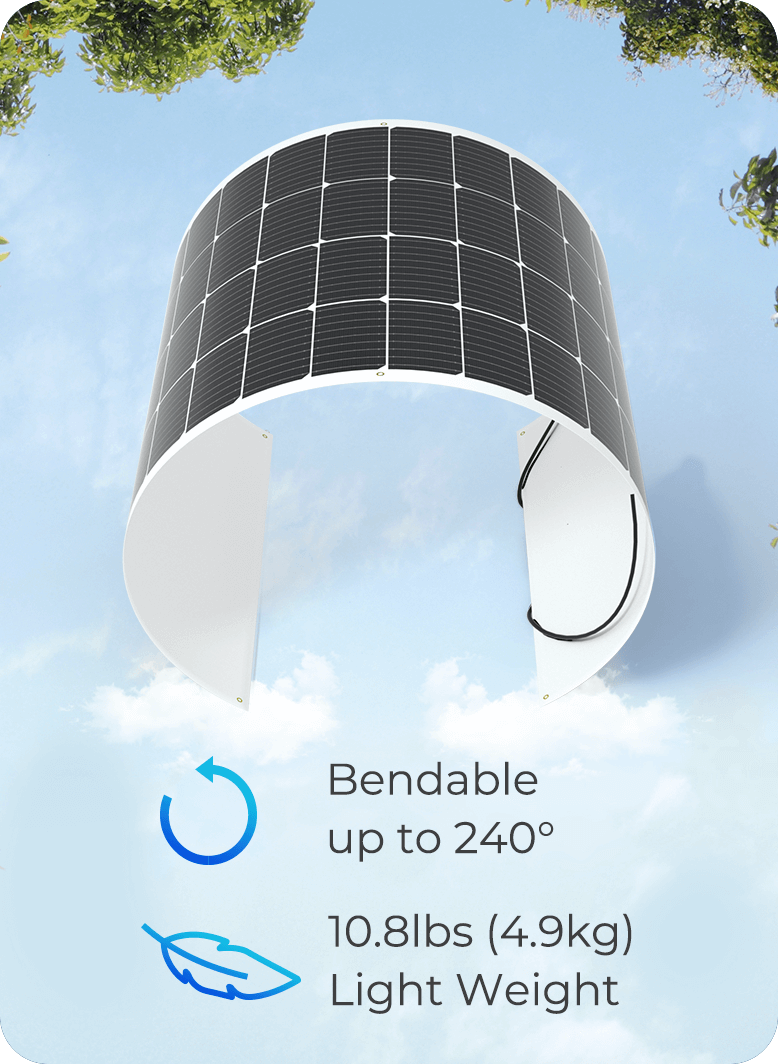

Renogy 200W flexible panel is bendable up to 240° and weighs 50% lighter than rigid panels, making it easy to carry and install. Furthermore, an extra composite material layer is embedded inside for increased durability and flexibility.

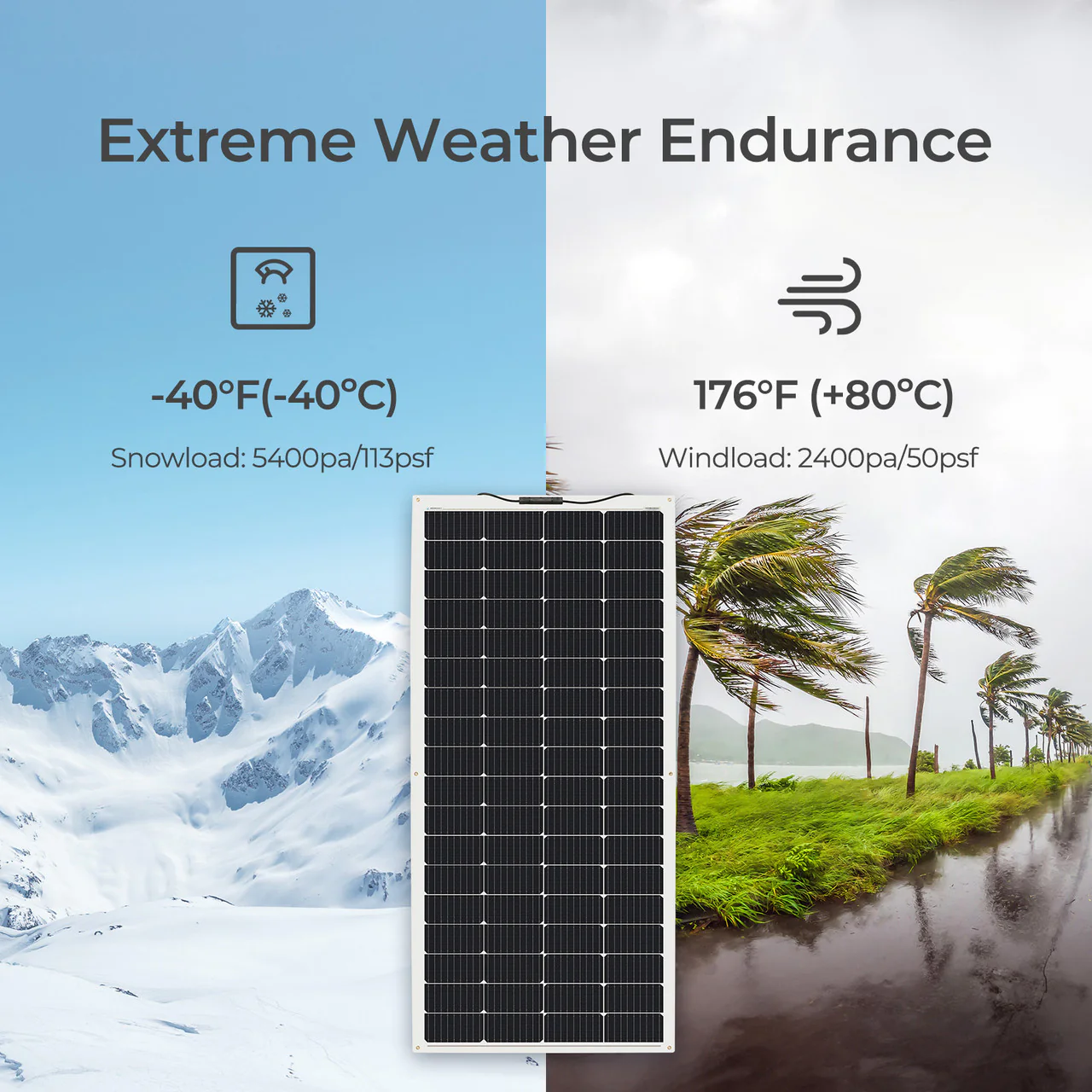

Built to Endure Harsh Weather

No matter how bad the weather gets, you can always confidently venture anywhere with the companionship of Renogy 200W flexible solar panel.

Specifications

Parameter	Value
Product	200W 12V Flexible Monocrystalline Solar Panel

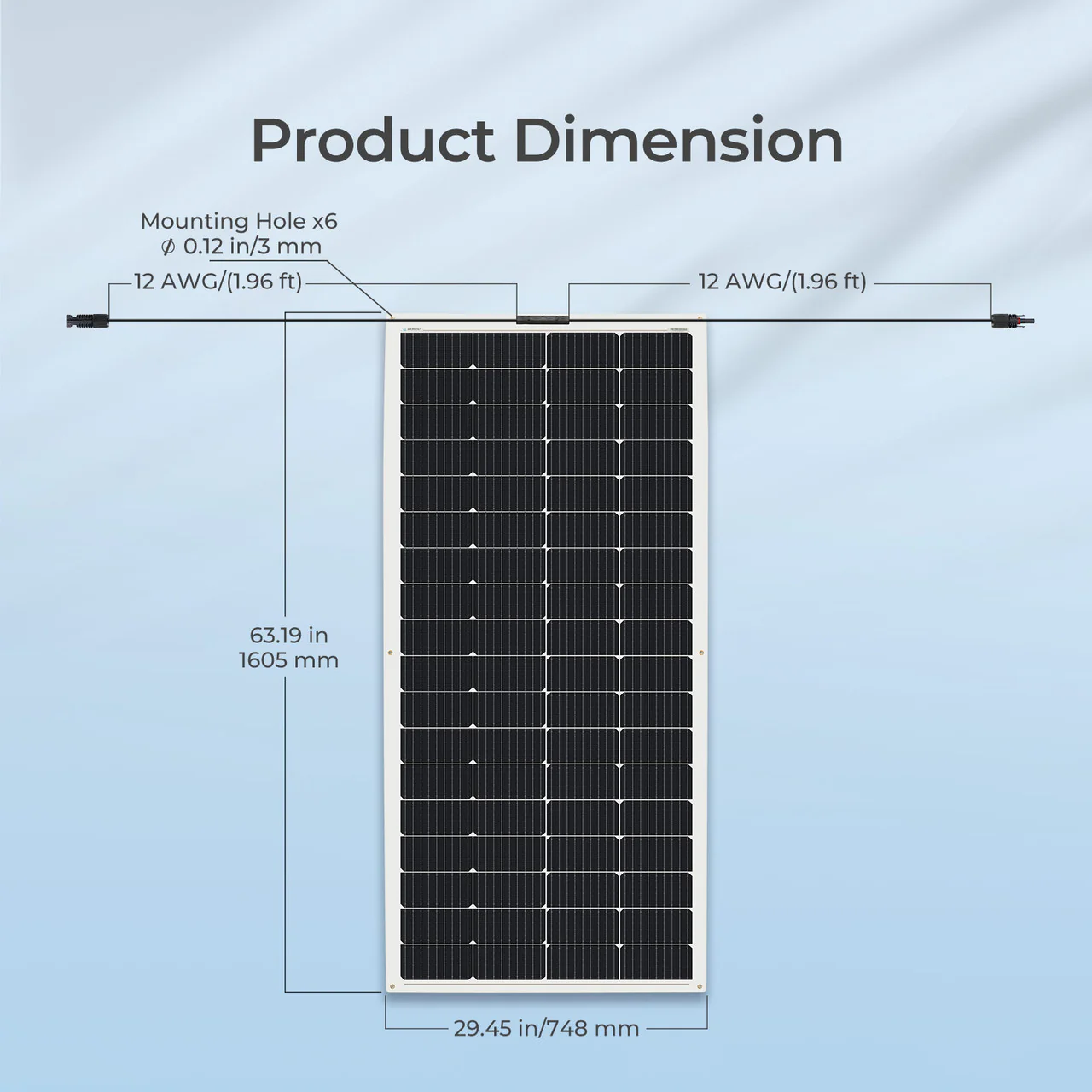

Dimensions	160.5 x 74.8 x 0.3 cm (63.2 x 29.4 x 0.1 in)
Weight	4.9 kg / 10.8 lbs
Output Cables	12 AWG (2.3 ft)
Cell Type	Monocrystalline (6.5 x 3.3)
Number of Cells	72 (18 x 4)
Junction Box	IP68

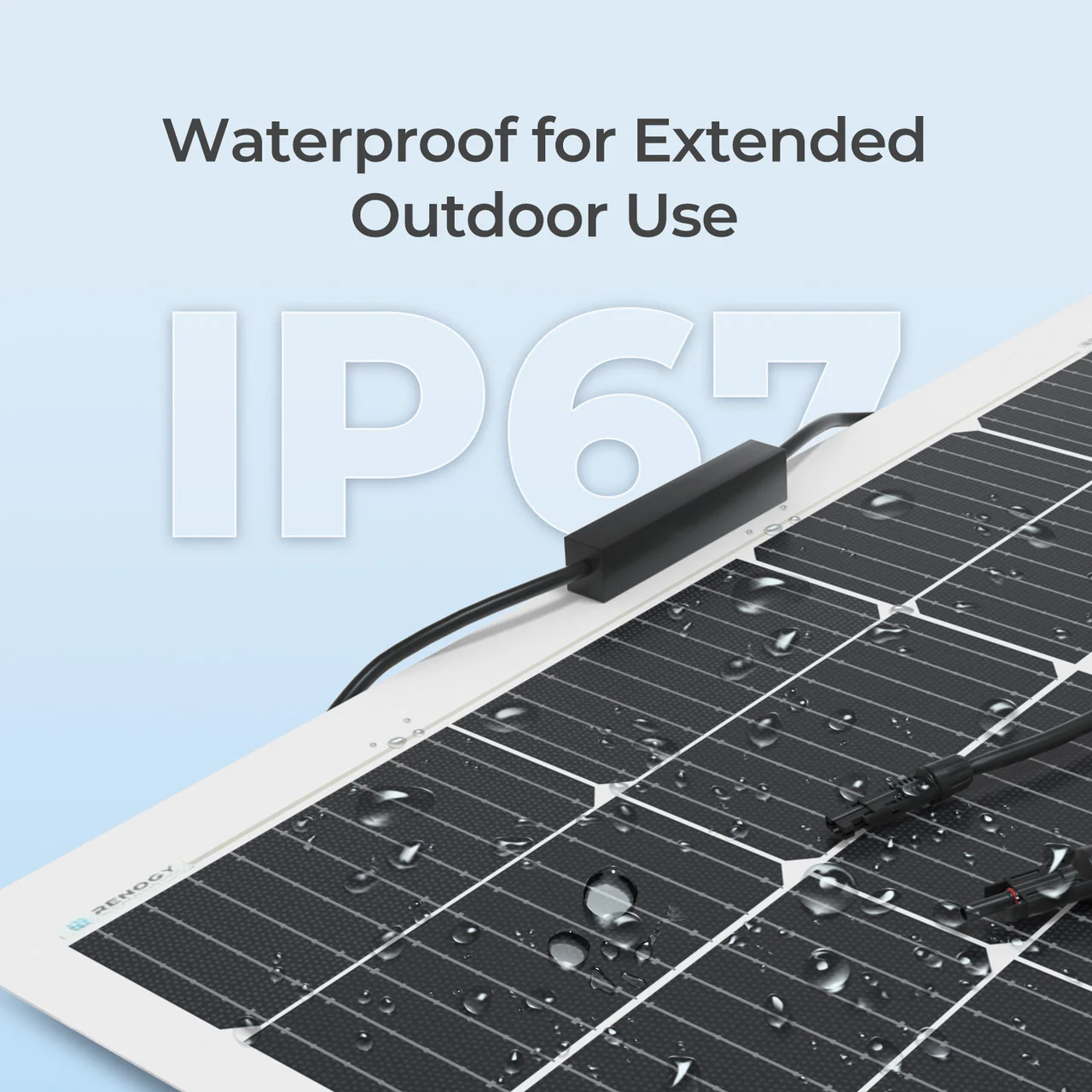

Solar Connectors	IP67
Maximum Power at STC	200W
Module Efficiency	16.7%
Optimum Operating Voltage (Vmp)	20.1V
Open-Circuit Voltage (Voc)	23.9V
Optimum Operating Current (Imp)	10.02A
Short Circuit Current	10.74A
Operating Temperature	-40°F to 176°F (-40°C to +80°C)
Maximum Series Fuse Rating	15A
Maximum System Voltage	600V DC
Certifications	CE, ISO9001
Material & Workmanship Warranty	5 years
Performance Warranty	5-year 90% output warranty & material and workmanship warranty
Parameter End	TRUE
Voltage	12V
Watt	200W
