REGO 12V 3KW HF Inverter Charger 230VAC

High-Current Output

  • AC Transfer Relay: Integrates a 30A AC Transfer Relay for continuous 30A current to AC output when connected to both grid and battery.
  • 3 Times Peak Power: Easily starts large power inductive loads such as 2000W air conditioners.

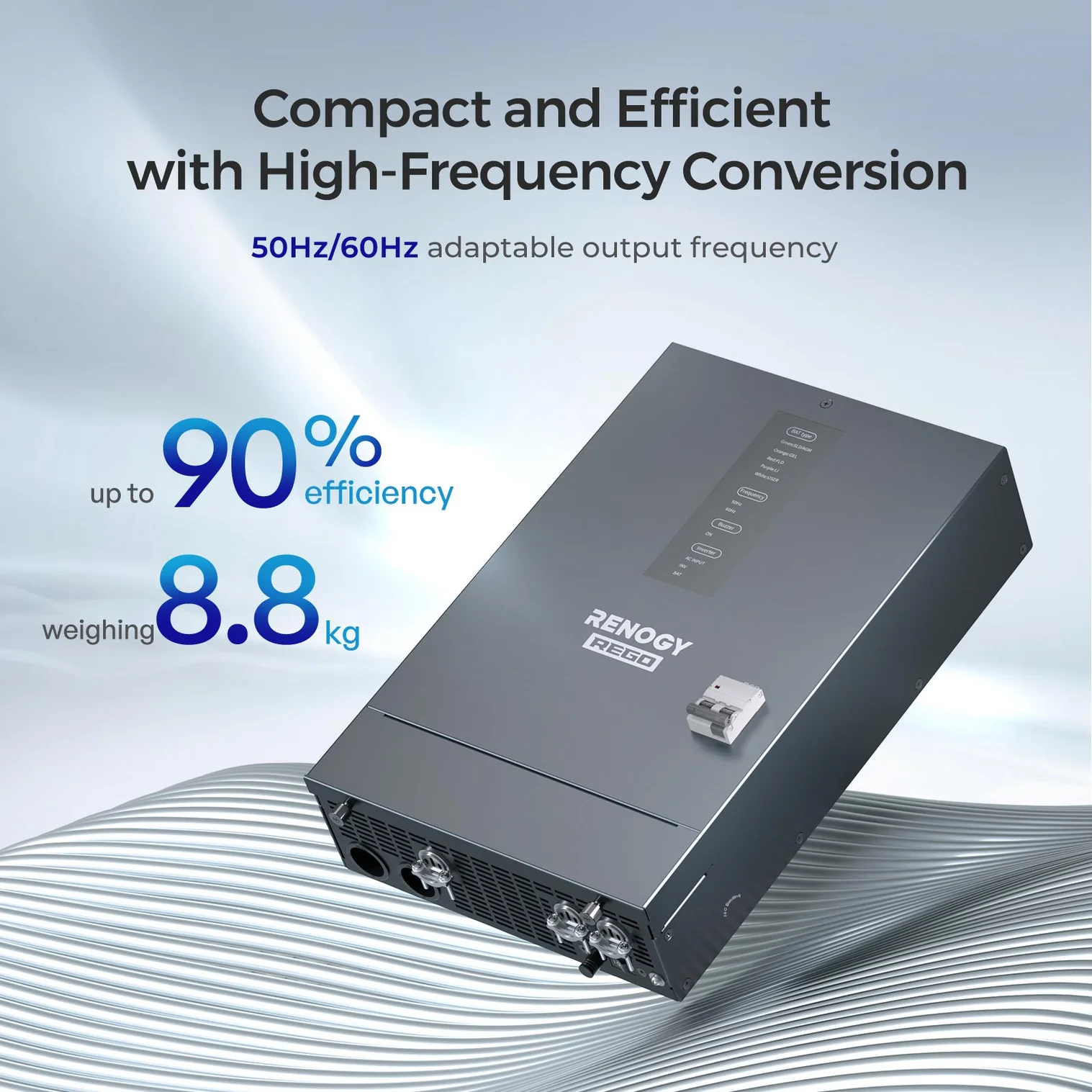

  • Efficiency: Achieves a peak conversion efficiency of over 91%

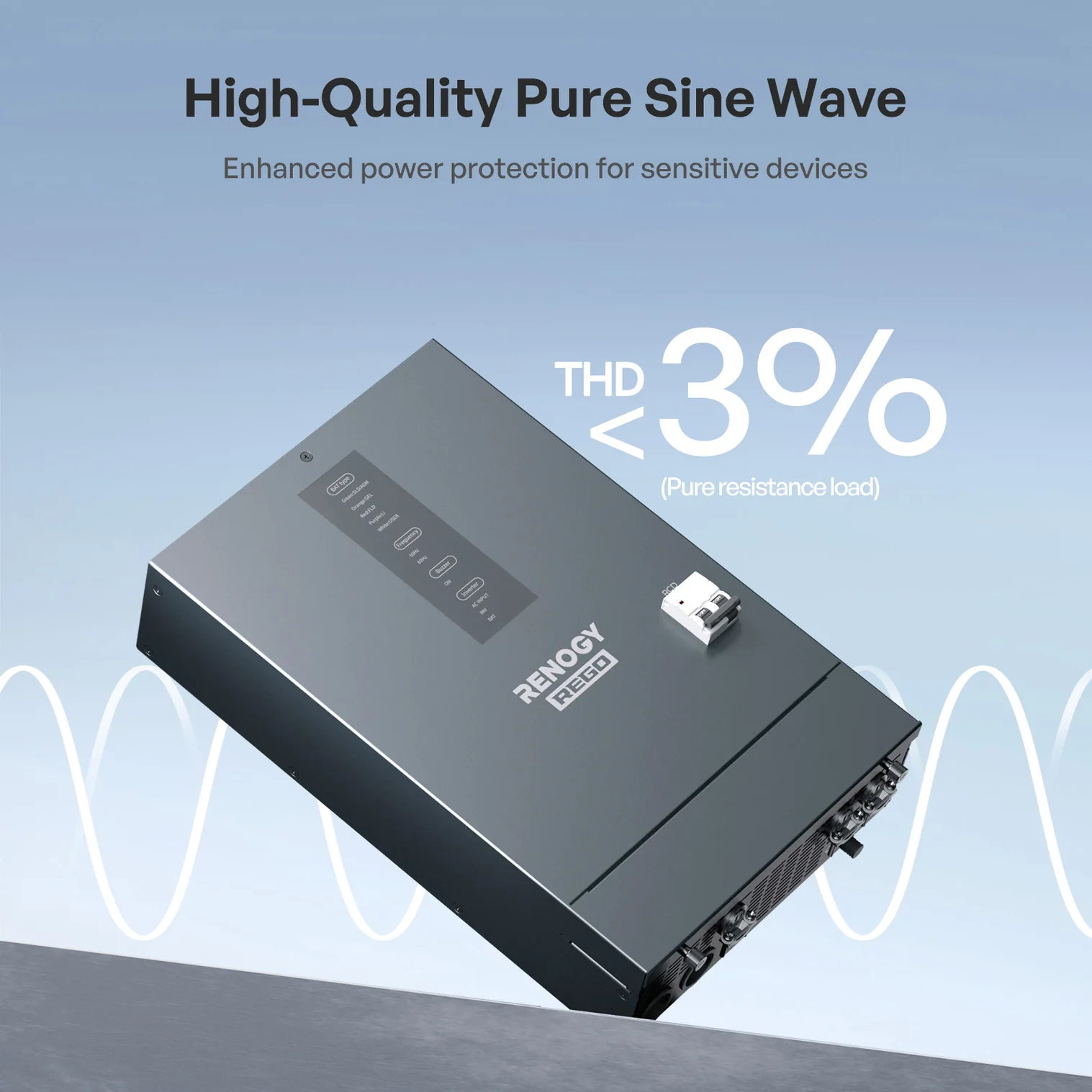

  • THD: <2% for smooth AC power with minimal harmonic distortion, equivalent to grid power quality.
  • Warranty: Backed by a 5-year warranty for peace of mind.

£1,012.12

Description

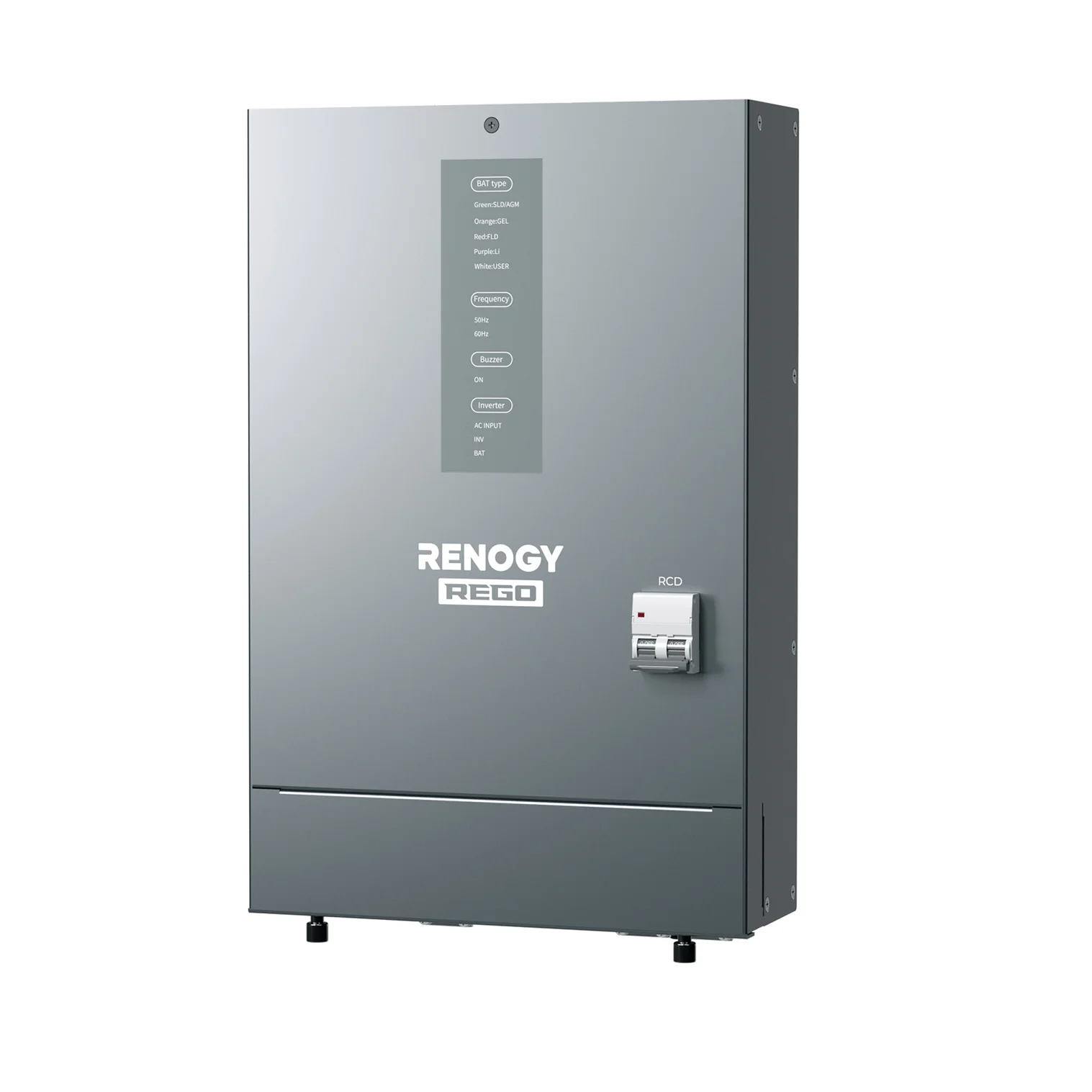

REGO HF Inverter Charger

12v | 3000W

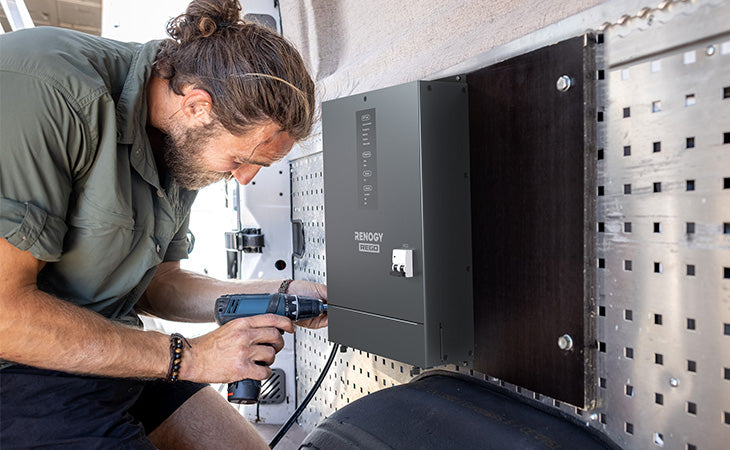

The Rego 12V 3000W HF Inverter Charger is engineered to deliver seamless power management for Off-grid homes and RVs. This inverter charger excels in converting DC to AC power and charging batteries when connected to mains power, ensuring continuous power supply with out interruptions.

Versatility

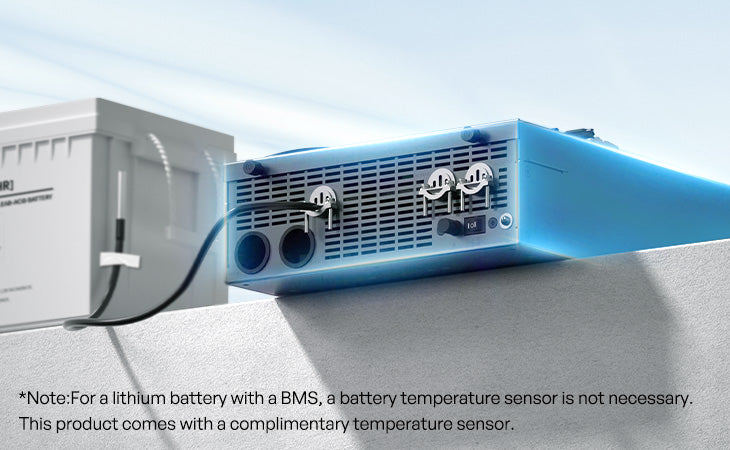

  • Activation and Heating: Supports lithium battery activation and heating film for optimal performance in cold environments.

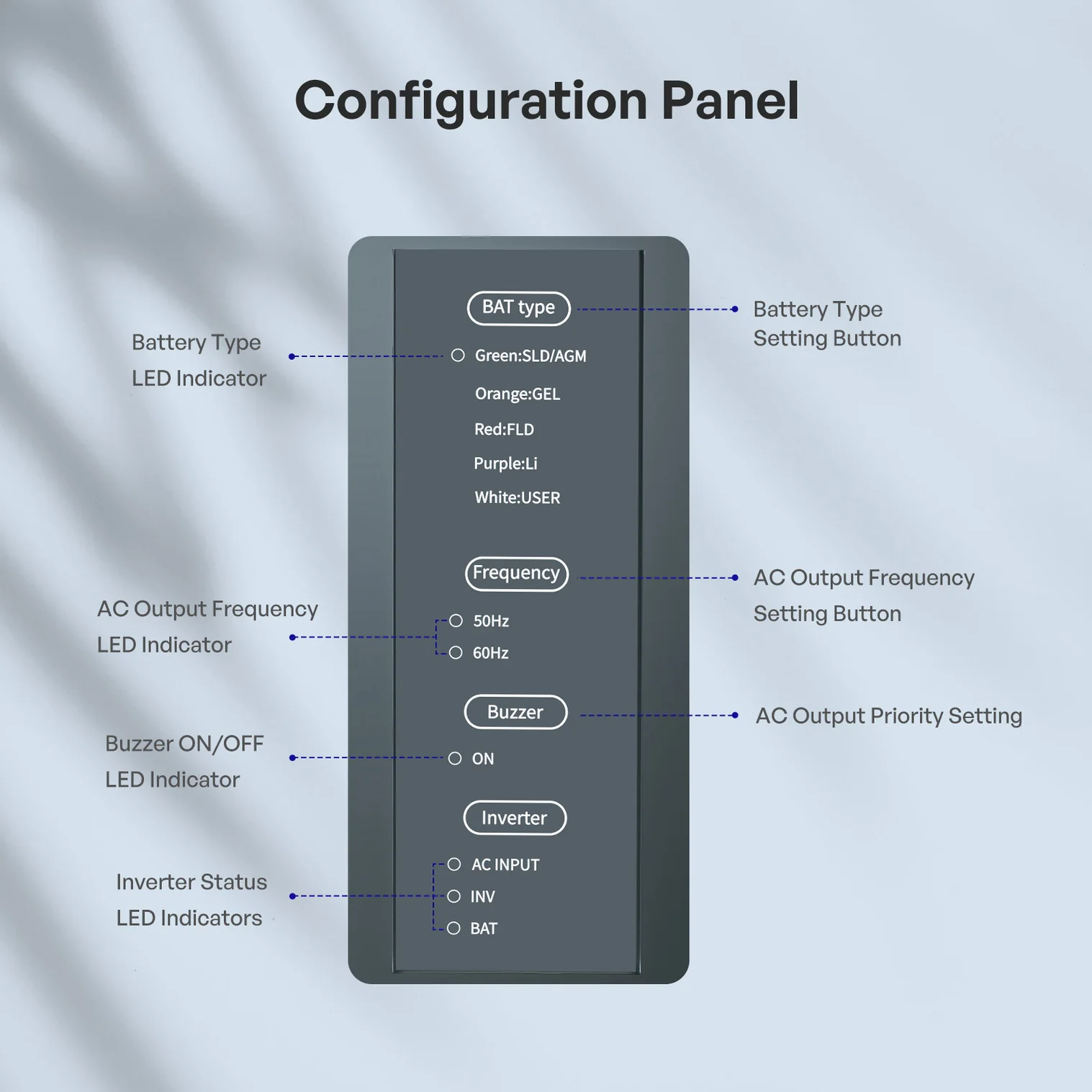

  • Compatibility and Easy Configuration: Supports lithium, GEL, Flooded, SLD and AGM batteries. Allows custom parameter settings with simple switch setup for battery types, output frequency and input priority.
  • Charging Stages: Offers up to three-stage charging various battery types
  • Adjustable Current: Supports adjustable charging current up to 150A to meet different power needs.

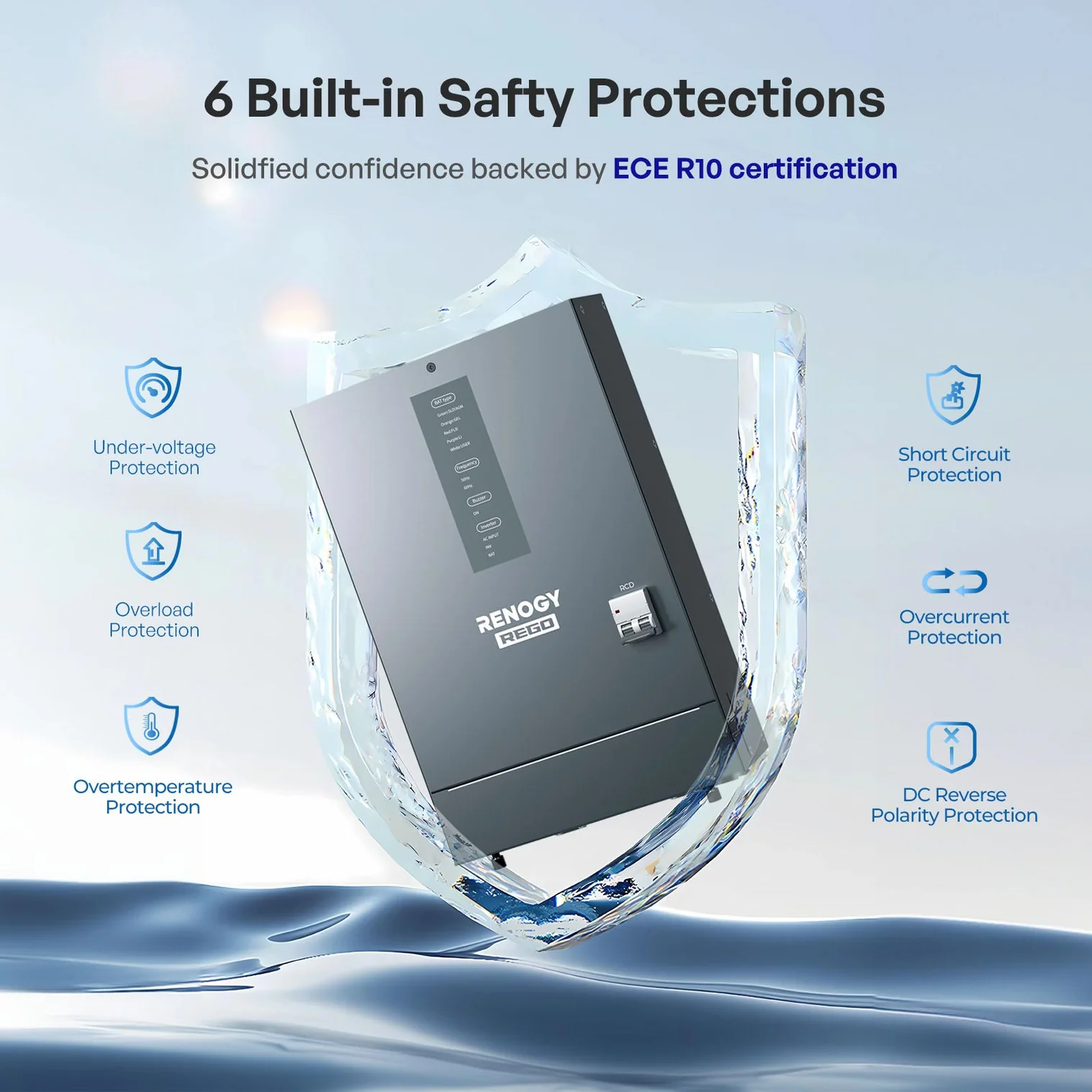

  • Safety Features: Provides undervoltage, overvoltage, overcurrent, overload, over temperature, short circuit protections and DC reverse polarity protection.
  • Dry Contacts: Equipped with dry contacts for automatic generator start stop functions facilitating efficient battery charging
  • DC Pre-Charge: The inverter starts slowly, compatible with various batteries ensuring safe and reliable operation.
  • Modes: Features ECO and Sleep modes that adjust according to usage, enhancing energy efficiency.
  • Power Assist Function: Output combines AC and inverter power for maximum continuous output of 6000W
  • Built-In Bluetooth and RV-C Communication: connects to DC Home app for energy data monitoring, control and configuration. Over the air firmware upgrades

Specifications

Renogy 3000W Inverter Charger (Model RIV1230RCH-24S)
Inverter Output Inverter Output
Rated Output Power 3000W @ 45°C Surge Power (1 sec / 3 sec / 10 sec) 9000VA / 4500VA / 3600W
Nominal Output Voltage 240VAC RMS Output Frequency 50Hz ±0.1Hz or 60Hz ±0.1Hz
Waveform Pure Sine Wave THD < 3% (Resistive Load)
Nominal Efficiency > 92% Peak No Load Power Consumption (Sleep) < 10W
DC Input & AC Charging DC Input & AC Charging
Nominal DC Input Voltage 12 VDC Input Voltage Range 9–17 VDC ±0.3V (Full Load 11–15.8VDC)
Short Circuit Protection Software Protection Output Current 5–150A Adjustable (Default 150A) @ 25°C
Battery Types Supported GEL, AGM, SLA, FLD, LI, USER
AC Input & Transfer AC Input & Transfer
Nominal AC Input Voltage 187–265 VAC Input Frequency Range 40–70Hz
Transfer Time ~10ms Transfer Relay Rating Max 30A / Max 6000W
Short Circuit Protection 30A RCD Line Mode Efficiency > 95%
Optimal Charging Efficiency > 91%
Environmental Environmental
Operating Temperature
