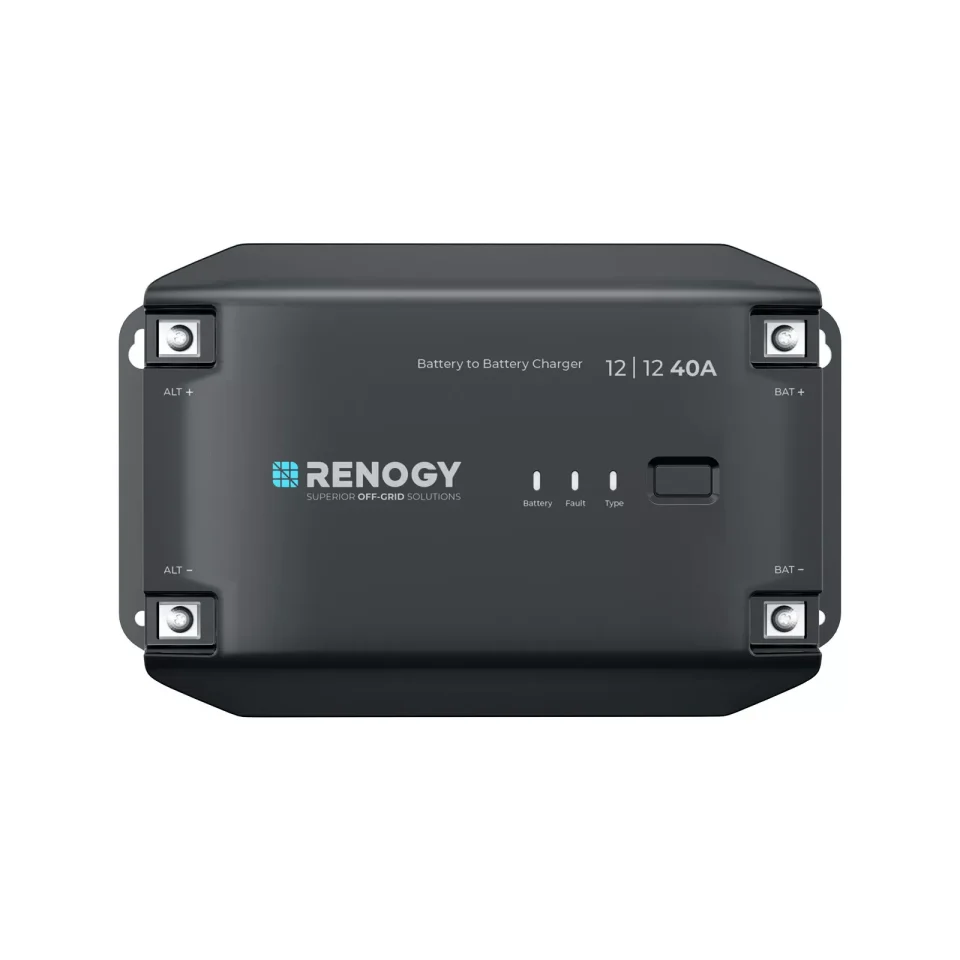

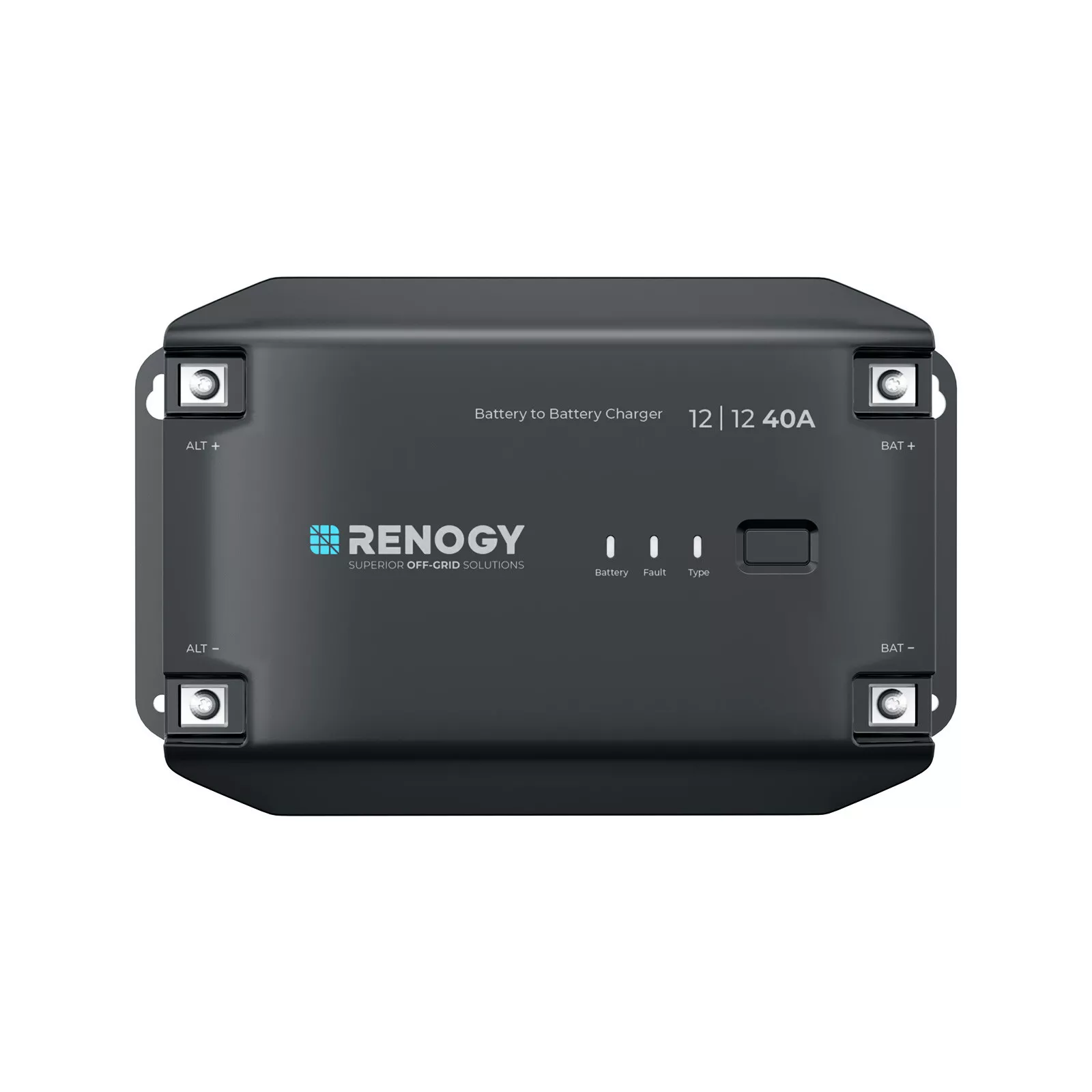

12V 40A DC to DC Battery Charger

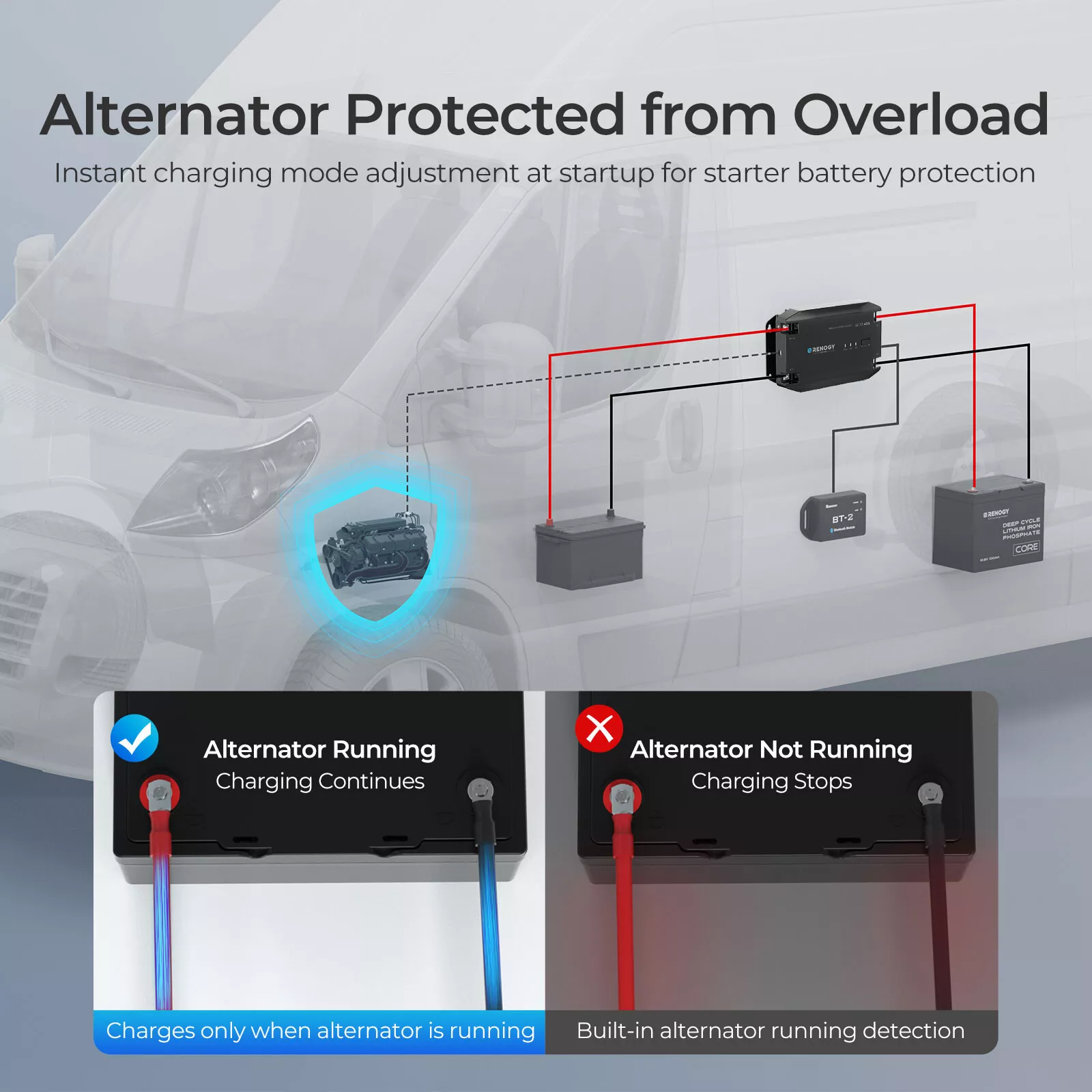

  • Starter Battery Protection: Alternator running detection prevents unwanted discharge, preserving your starter battery.

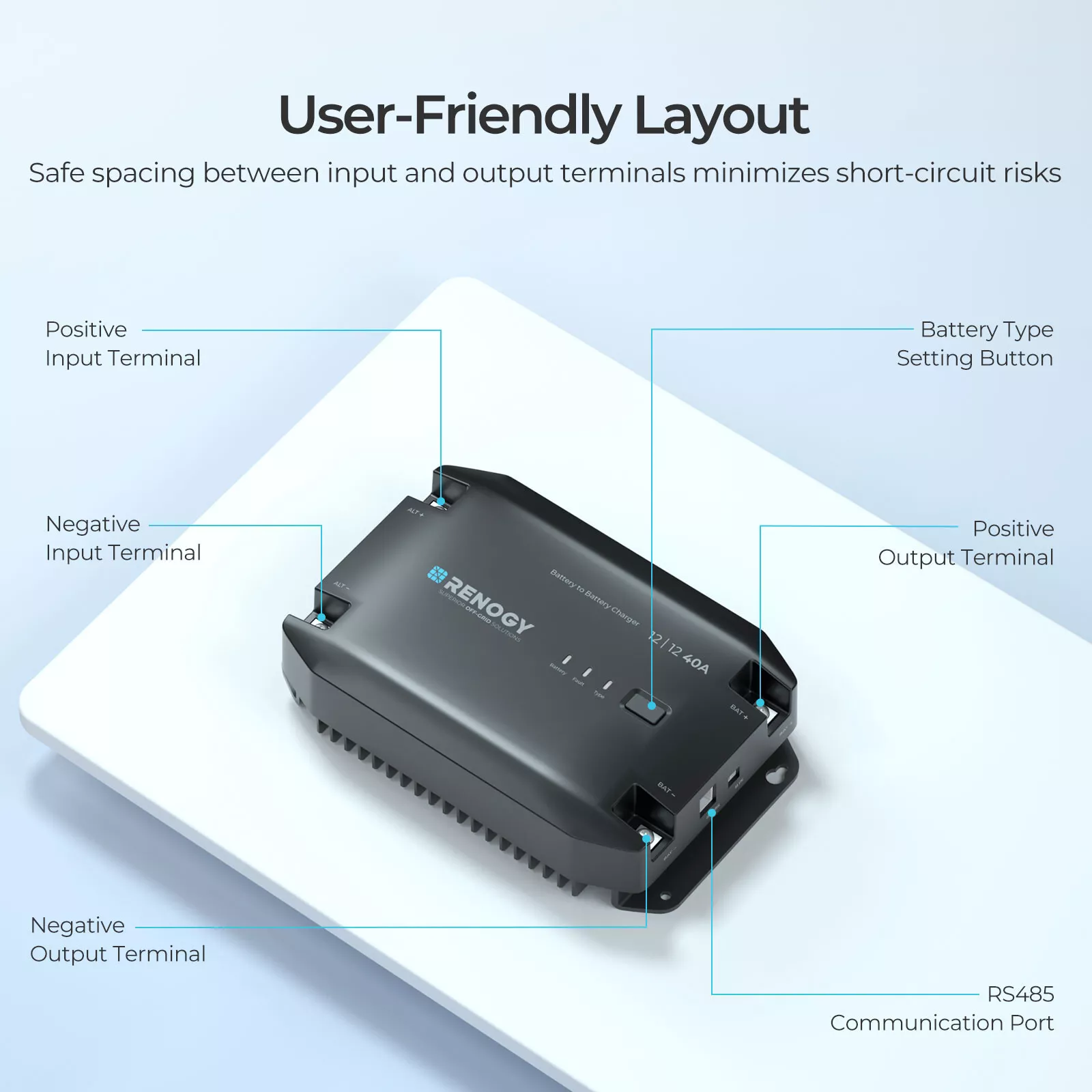

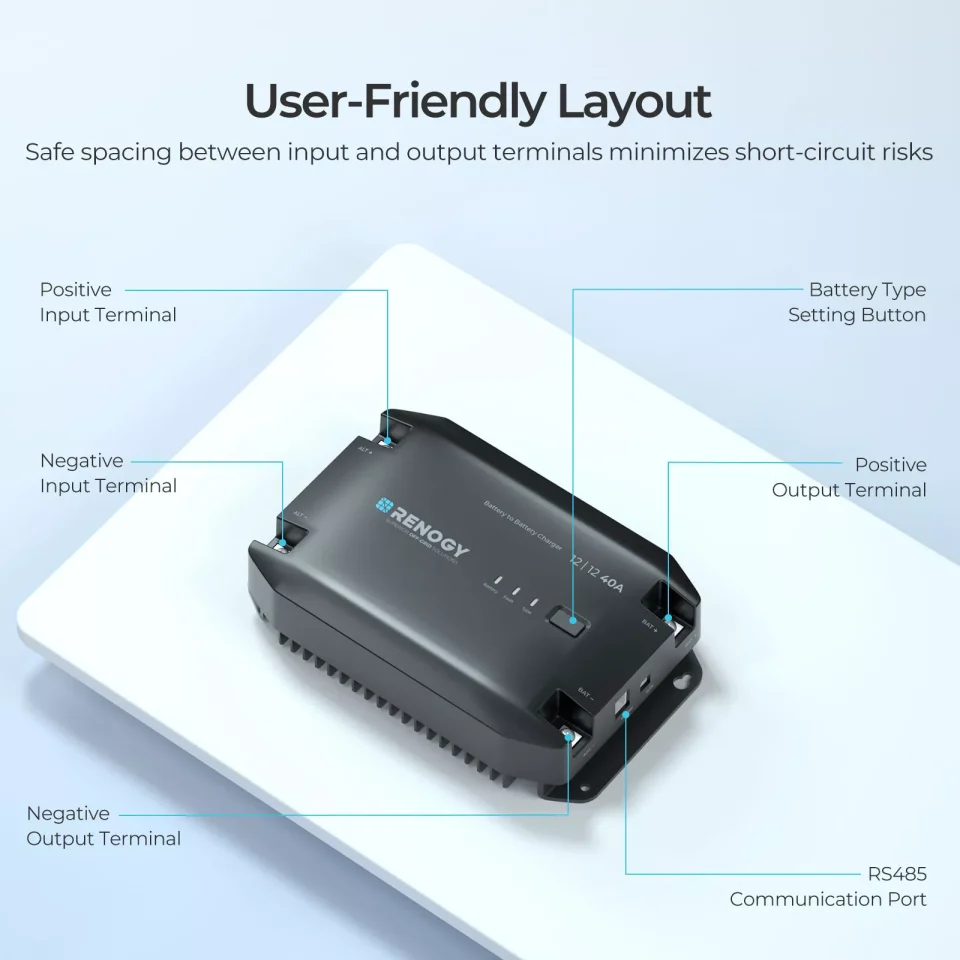

  • Effortless Installation: Compact, streamlined design allows for quick and easy setup in tight spaces.

  • Wireless Monitoring: Compatible with BT-2 Bluetooth module for remote monitoring via the DC Home app.

  • Comprehensive Safety Features: Built-in protections ensure safe, stable, and efficient charging performance.

  • Custom Lithium Activation: Supports lithium battery activation with customizable parameters for advanced control.

£109.99

Description

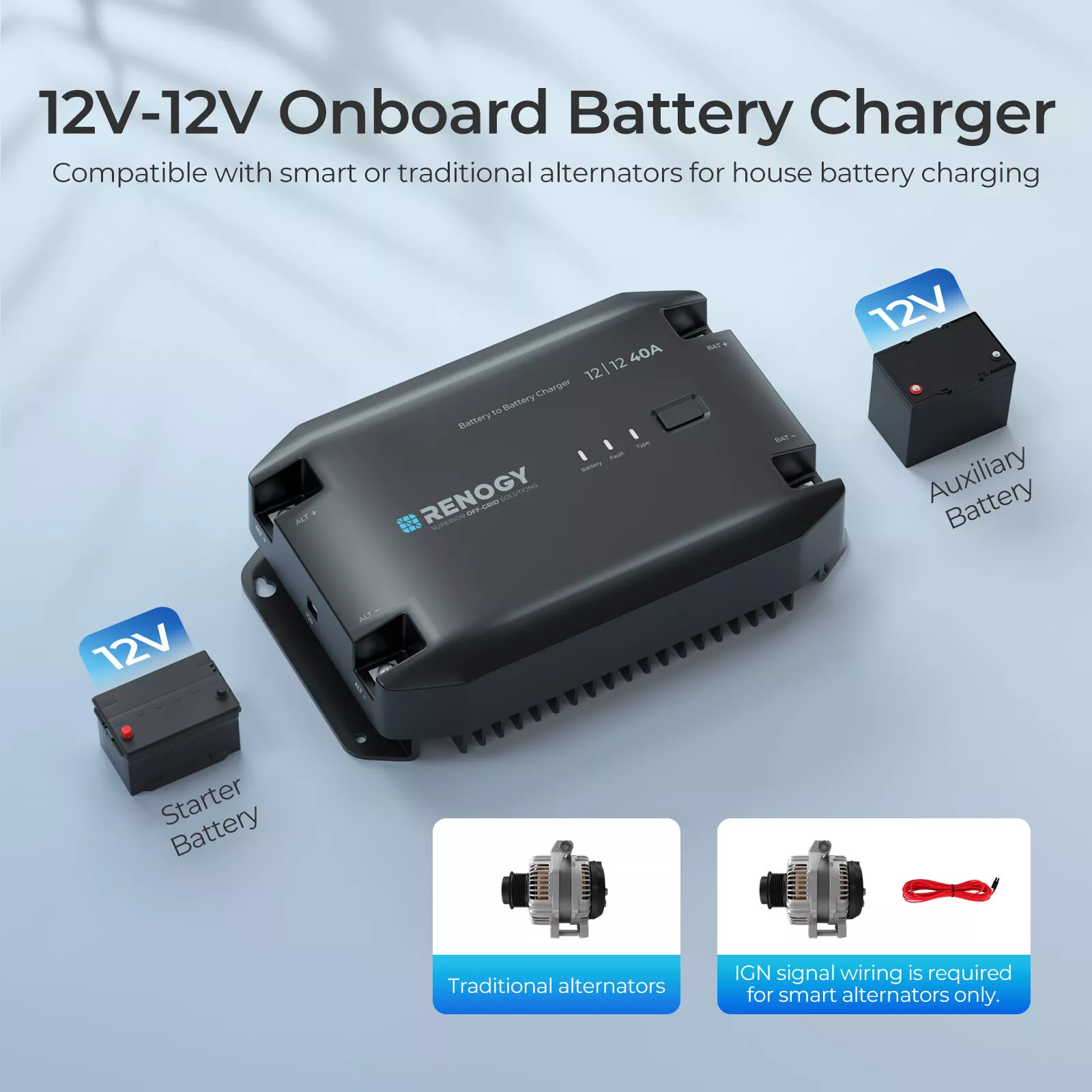

Meet the Renogy 12V 40A DC to DC Battery Charger, the second generation of the DCC series. Built for the ultimate on-the-go charging experience, this state-of-the-art charger combines efficient energy utilization with smart control. It is compatible with both traditional and smart generators, safeguarding the batteries of your vehicle while reaching up to 94% charging efficiency. With advanced charging logic, the charger improves performance for better energy management. Stay on top of things through remote monitoring with the Renogy app to check system status at any time and from anywhere. Whether one is venturing out into the great outdoors or simply embracing the van life, the Renogy 12V 40A DC to DC Battery Charger is a reliable companion for efficient and effective charging.

Renogy 12V 40A DC to DC Battery Charger

Elevate your driving charging experience with smart control.

Advanced High-Temperature Performance

The second-generation DCC charger intelligently reduces output power in high-temperature environments, ensuring safe and efficient charging without compromising system performance.

Optimize Battery Health

Enable or disable lithium battery activation based on battery status via the DC Home app, extending battery lifespan directly from your phone!

Smart Control for Simplicity and Efficiency

Effortless remote monitoring and control of charging parameters.

Comprehensive Accessories for Easy Installation

The included battery temperature sensor delivers real-time data to the charger, enabling precise adjustments to charging parameters for optimal performance and battery longevity.

Quieter Cooling Solution
Corrosion-Proof for Long-Term Use

Quieter Cooling Solution

Experience enhanced performance with natural heat dissipation and reduced 30dB noise levels.

Specifications

General Specifications
Terminal Range 8 AWG – 6 AWG
Grounding Common Negative
Communication Protocol RS485 Communication
Operating Temperature Range -4°F to 122°F (-25°C to 60°C)
Storage Temperature Range -4°F to 122°F (-40°C to 85°C)
Humidity 0% – 95% RH, No Condensation
Maximum Operating Altitude 3000 m
Enclosure Rating 0% – 95% RH, No Condensation
Dimensions (L × W × H) 9.31 × 6.00 × 2.30 in (236.5 × 152.5 × 58 mm)
Weight 4.41 lb (1.88 kg)
Certifications CE, RoHS, FCC

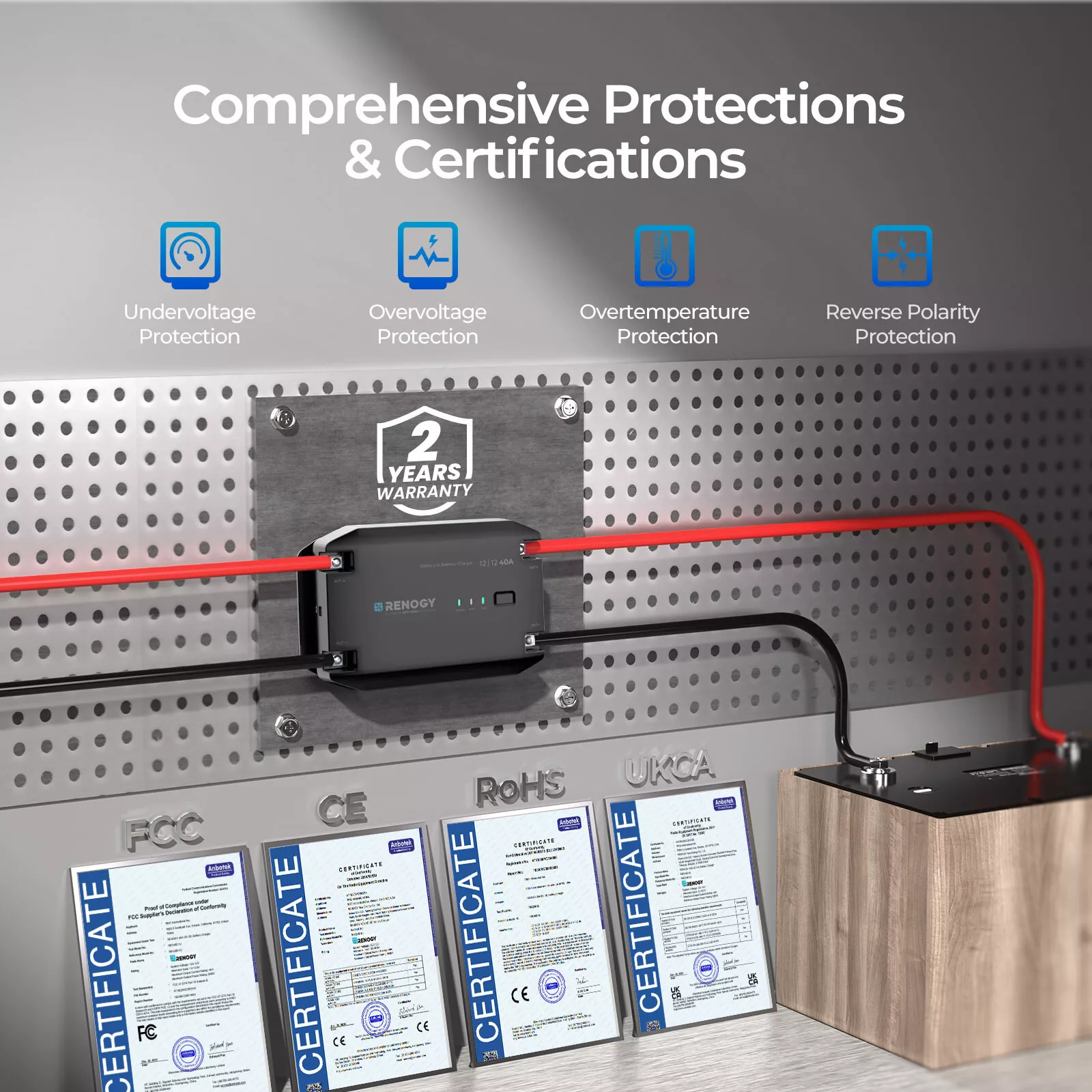

Protection Reverse Polarity Protection,
Overvoltage Protection,
Over‑Discharge Protection,
Overcurrent Protection,
Over‑Temperature Protection
Electrical Data
System Voltage 12V – 12V
Alternator Input Voltage Traditional Alternator: 13.2 – 16.0 VDC
Smart Alternator (Euro 6): 12.0 – 16.0 VDC
Maximum Output Current Rating 40 A
Output Power 584 W

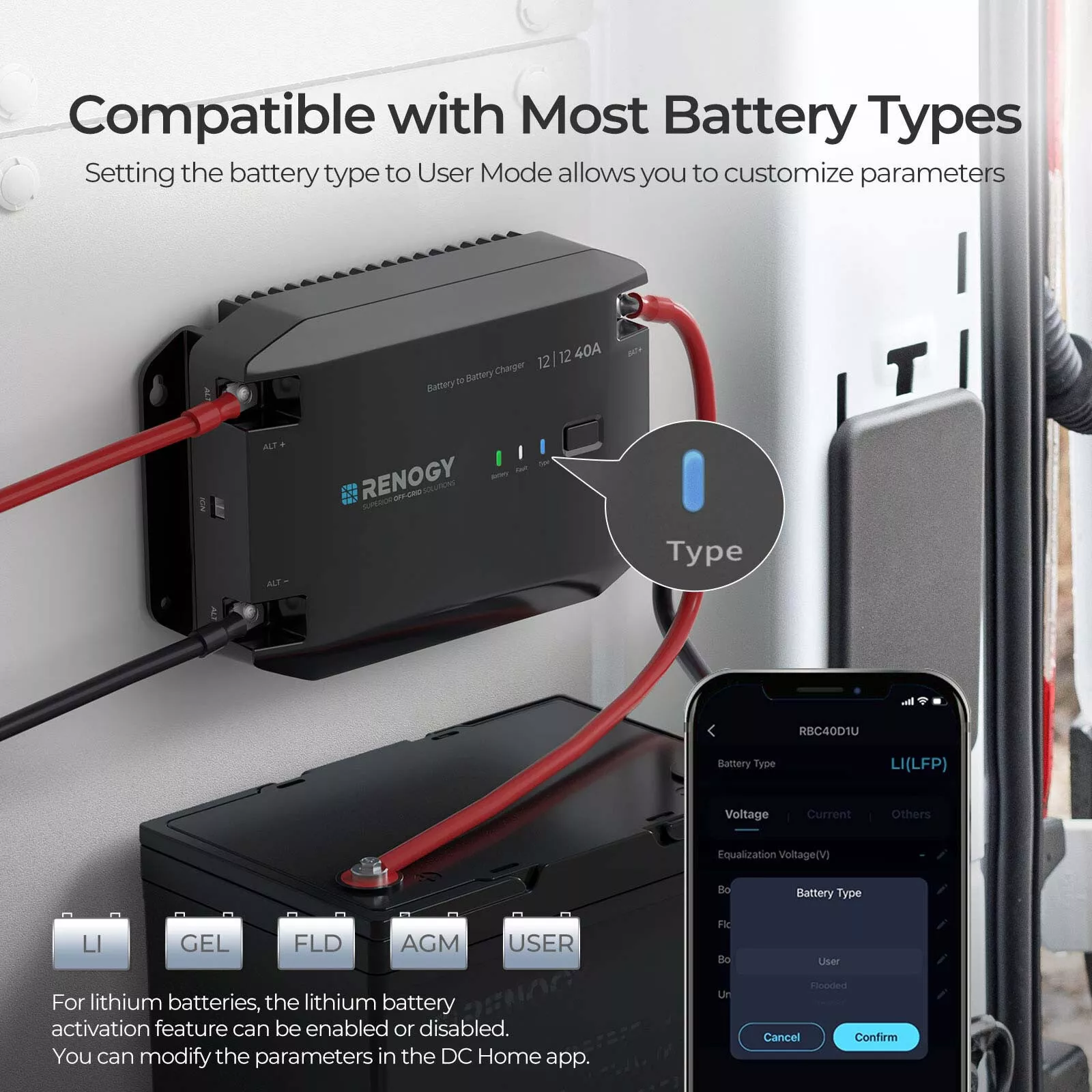

Battery Types AGM, Gel, Flooded, Lithium‑iron Phosphate, User
Input Fuse Rating 60 A
Output Fuse Rating 50 A
Charging Efficiency 94%
Temperature Compensation -3mV / ℃ / 2V (Non‑Lithium)
0mV / ℃ / 2V (Lithium – No Compensation)
Idle Power Consumption < 15 mA
Package Includes
Included Items Battery Charger ×1,
Temperature Sensor ×1,
IGN Signal Wire ×1,
User Manual ×1,
Terminal Ring ×4
Warranty Information
Warranty 2‑Year Prorated Material and Workmanship Warranty
