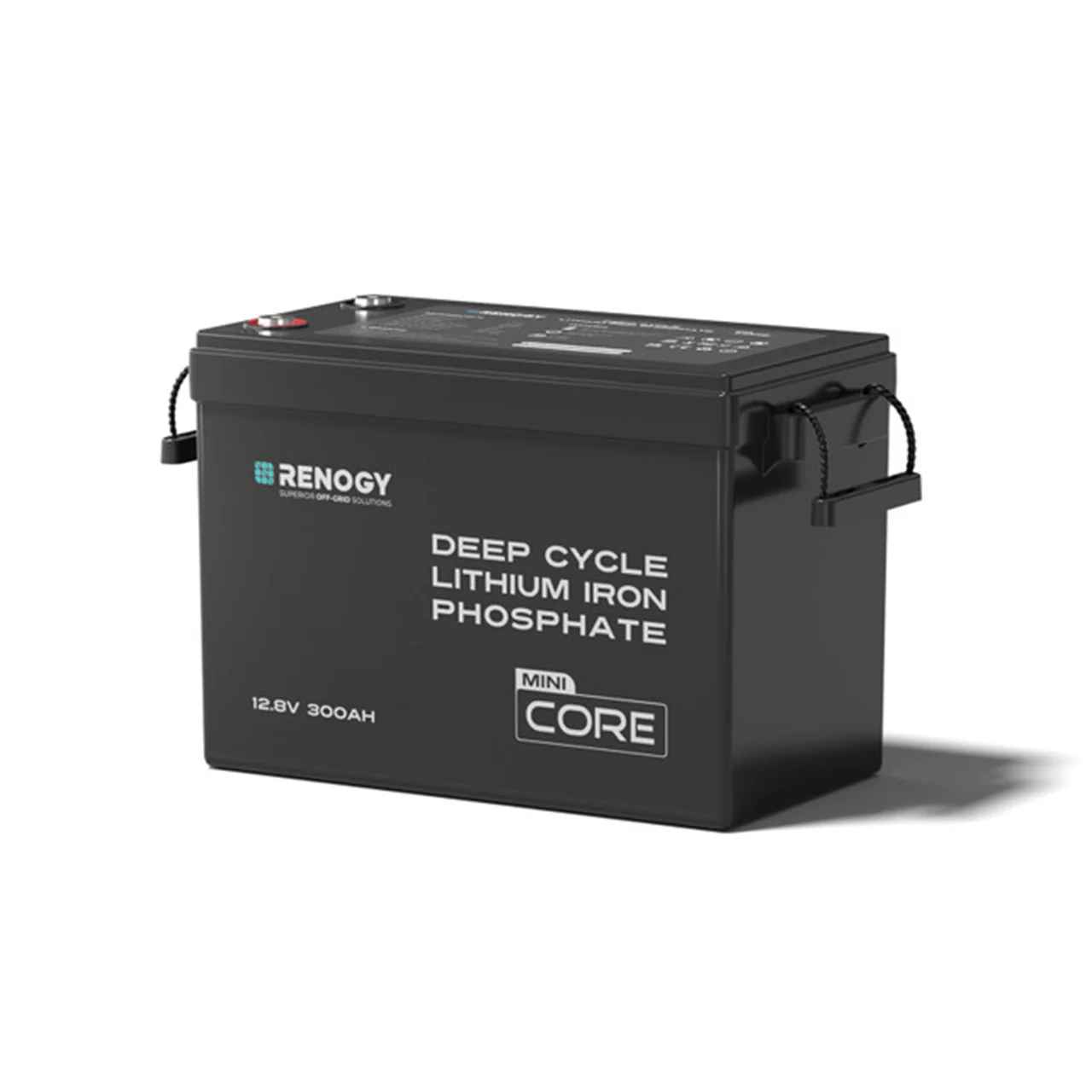

Renogy 12V 300Ah Lithium Battery w/Self-Heating

Description

Smaller, Sleeker, Still Renogy Strong.

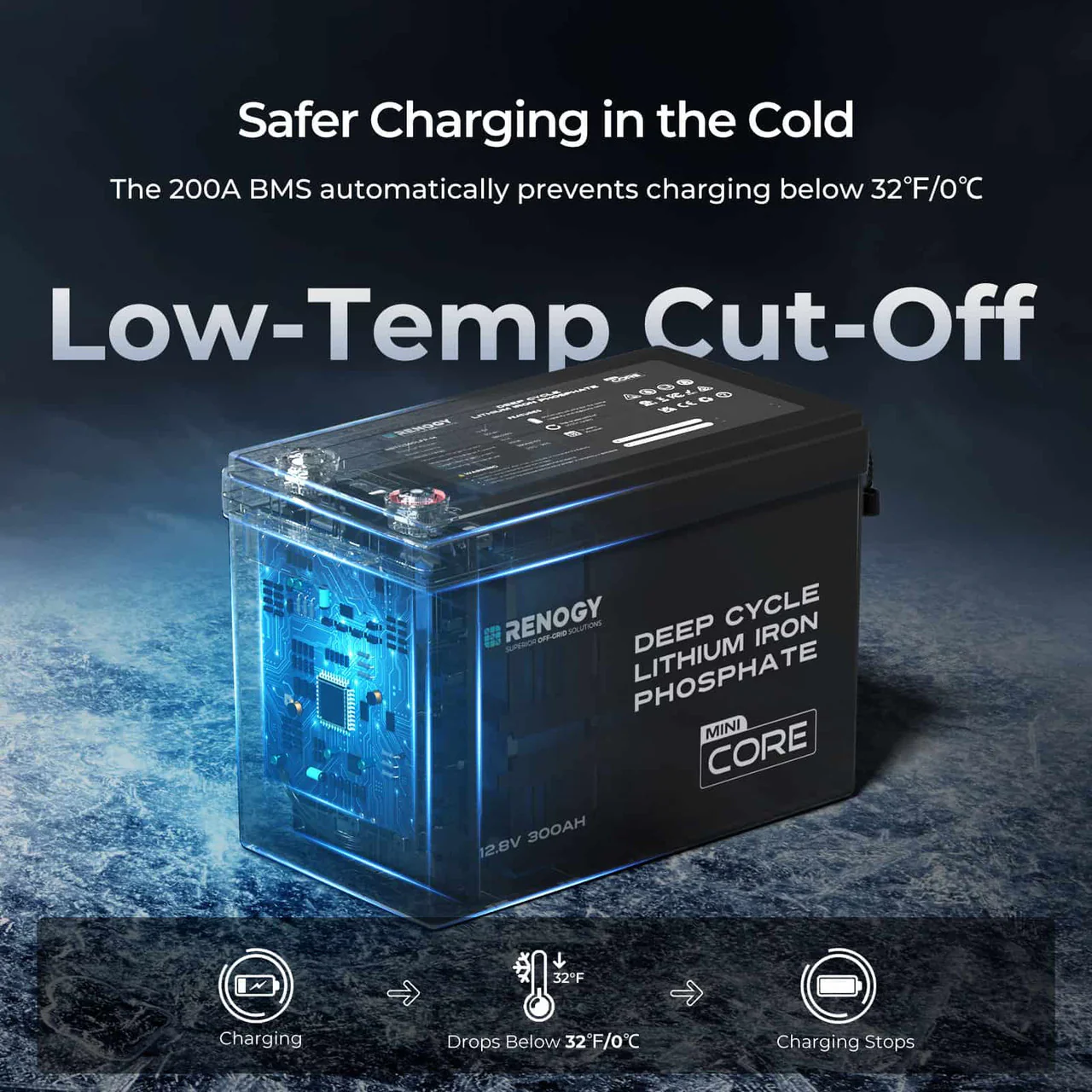

Power up with compact confidence! The Renogy Core Mini Series LiFePO₄ Battery is up to 50% smaller than its counterparts while maintaining a robust BMS plus a low-temperature cut-off for enhanced protection. Perfect for both travel and home use, it’s the ideal solution for versatile power demands.

The Compact Advantage

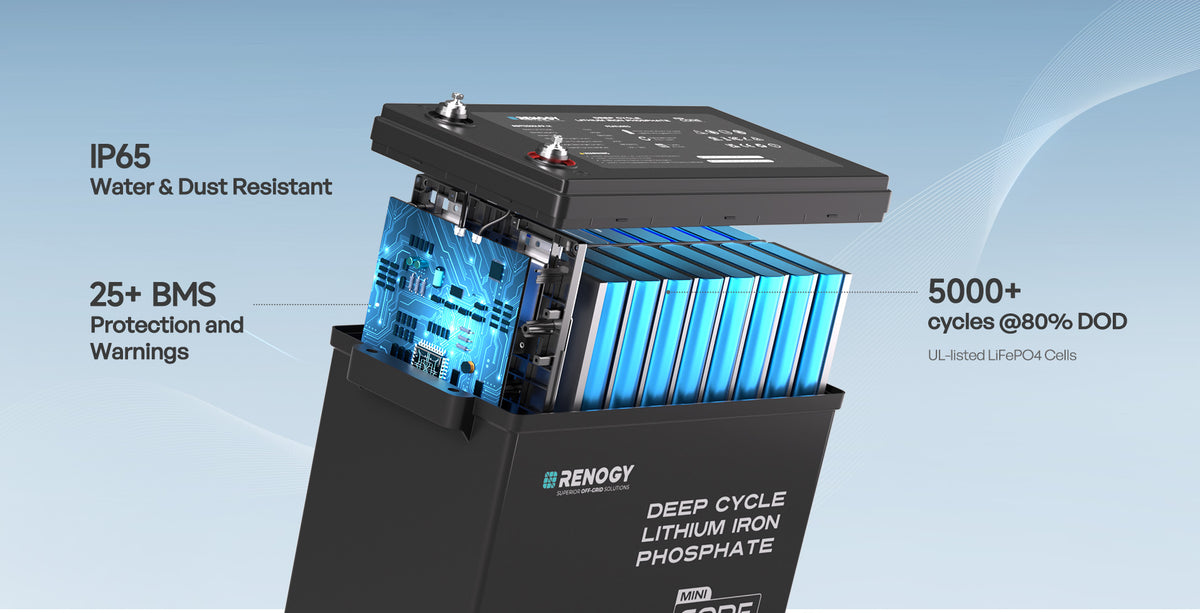

Next-gen design with premium safety and full power

Portable Lithium Power

Premium EV-grade cells deliver 5000 cycles at 80% discharge—outperforming traditional lead-acid batteries in both lifespan and reliability

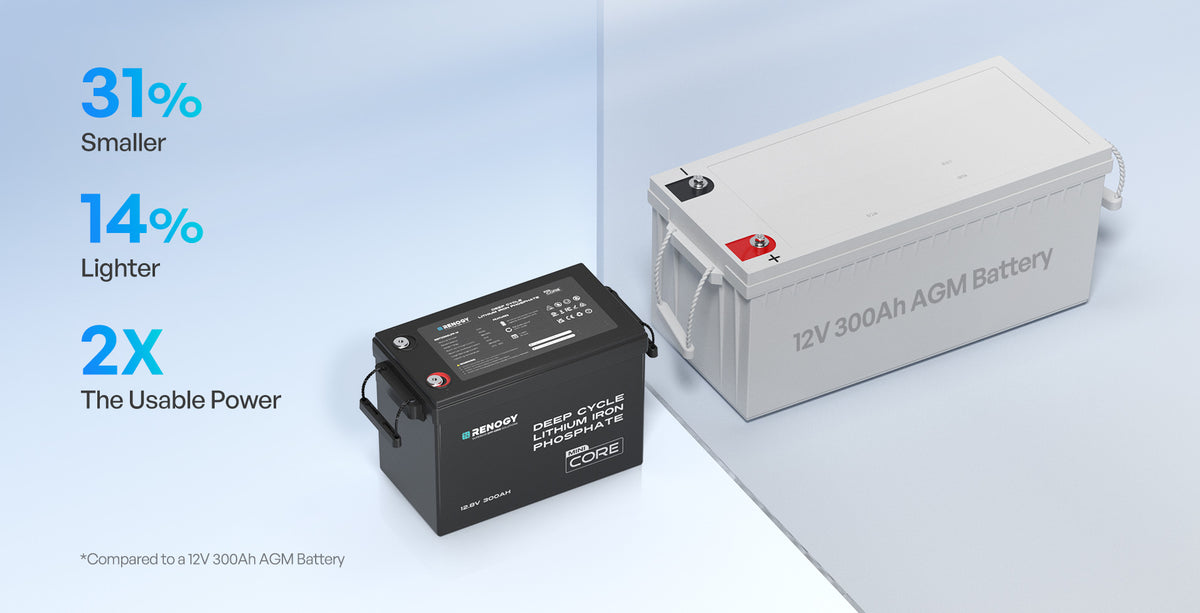

Small in Size, Big on Adventure

Optimized for RV and Marine Applications — Compact in size, yet engineered to reliably power a wide spectrum of onboard appliances across both environments.

Safety Certified Design

UL, FCC, and CE certified for reliable performance in any application

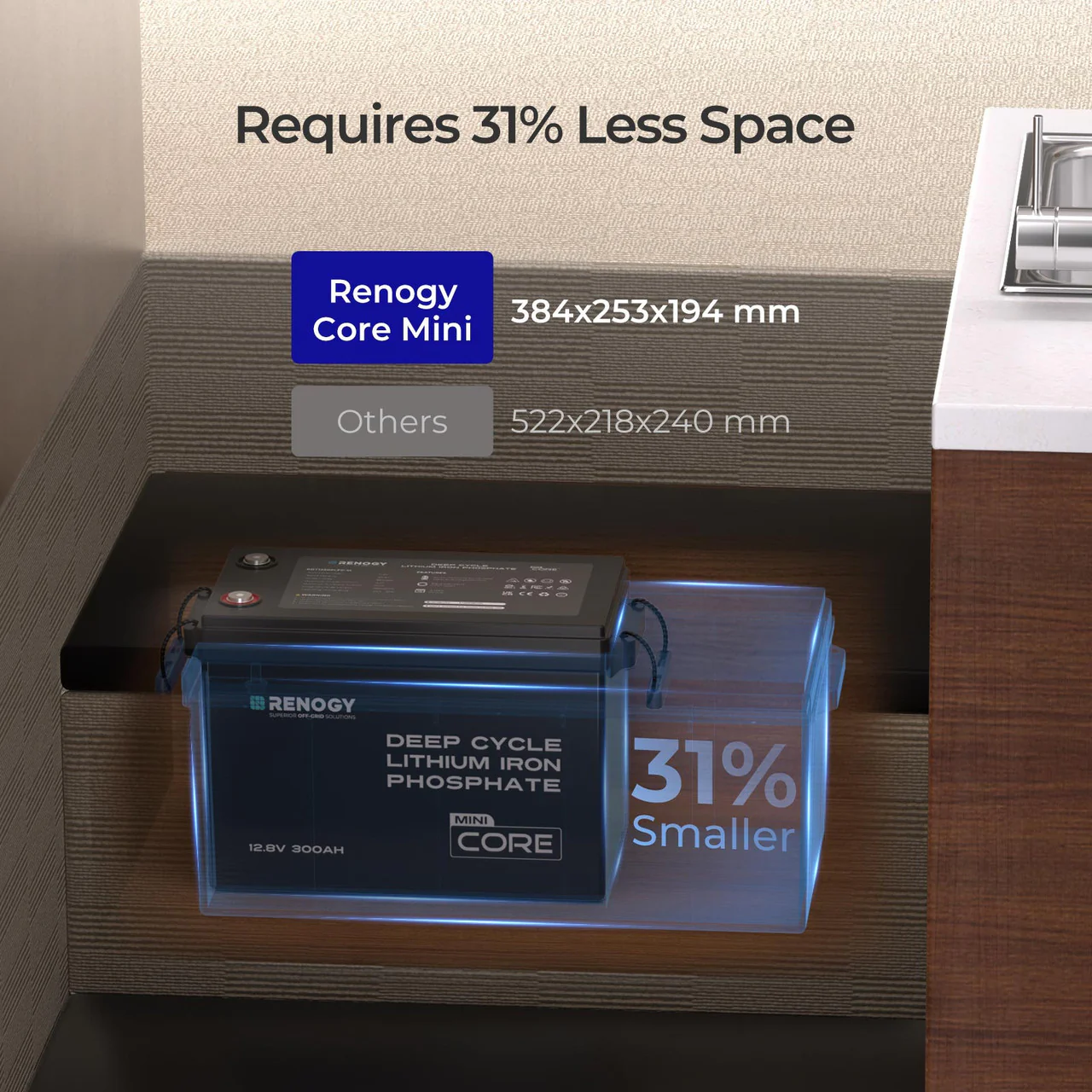

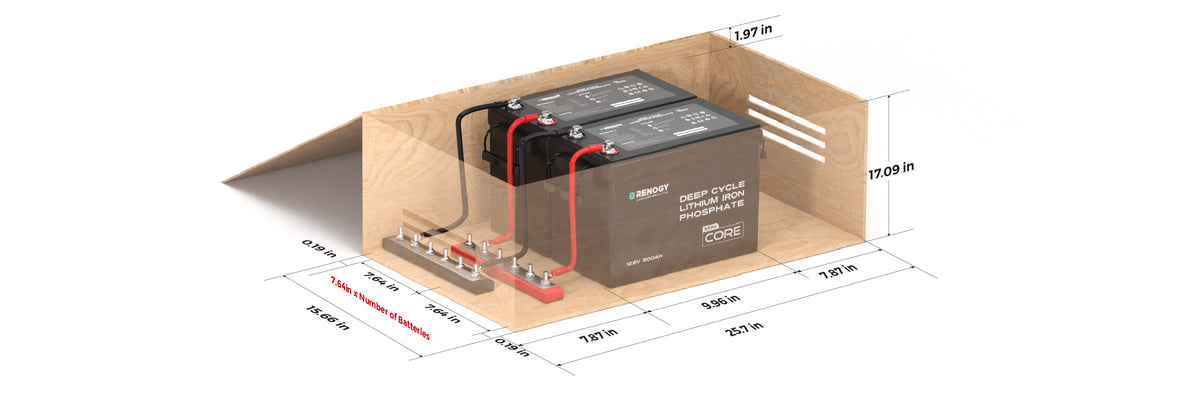

Space Requirements

Additional information

Specifications	Electrical Specifications Rated Capacity (0.5C, 25°C): 300AH Nominal Voltage: 12.8V Dimension (L x W x H): 384 x 194 x 253 mm (15.12 x 7.64 x 9.96 in) Weight: 25.0 kg / 55.1 lbs Terminal Bolt Size : M8 × 1.25 × 12 mm & M8 × 1.25 × 16 mm Energy: 3840Wh Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL) Storage Temperature Range: -4°F to 140°F (-20°C to 60°C) Charge Temperature: 32°F to 140°F (0°C to 60°C) Discharge Temperature: -4°F to 149°F (-20°C to 65°C) Operation Relative Humidity: 5% to 95% Protection Rating: IP65 Charge Voltage: 10V to 14.8V Maximum Continuous Charge Current: 150A Maximum Continuous Discharge Current: 200A Peak Discharge Current: 380A @ 10s MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS and UKCA: YES Warranty: 5-year material warranty

Specifications

Electrical Specifications

Rated Capacity (0.5C, 25°C): 300AH
Nominal Voltage: 12.8V
Dimension (L x W x H): 384 x 194 x 253 mm (15.12 x 7.64 x 9.96 in)

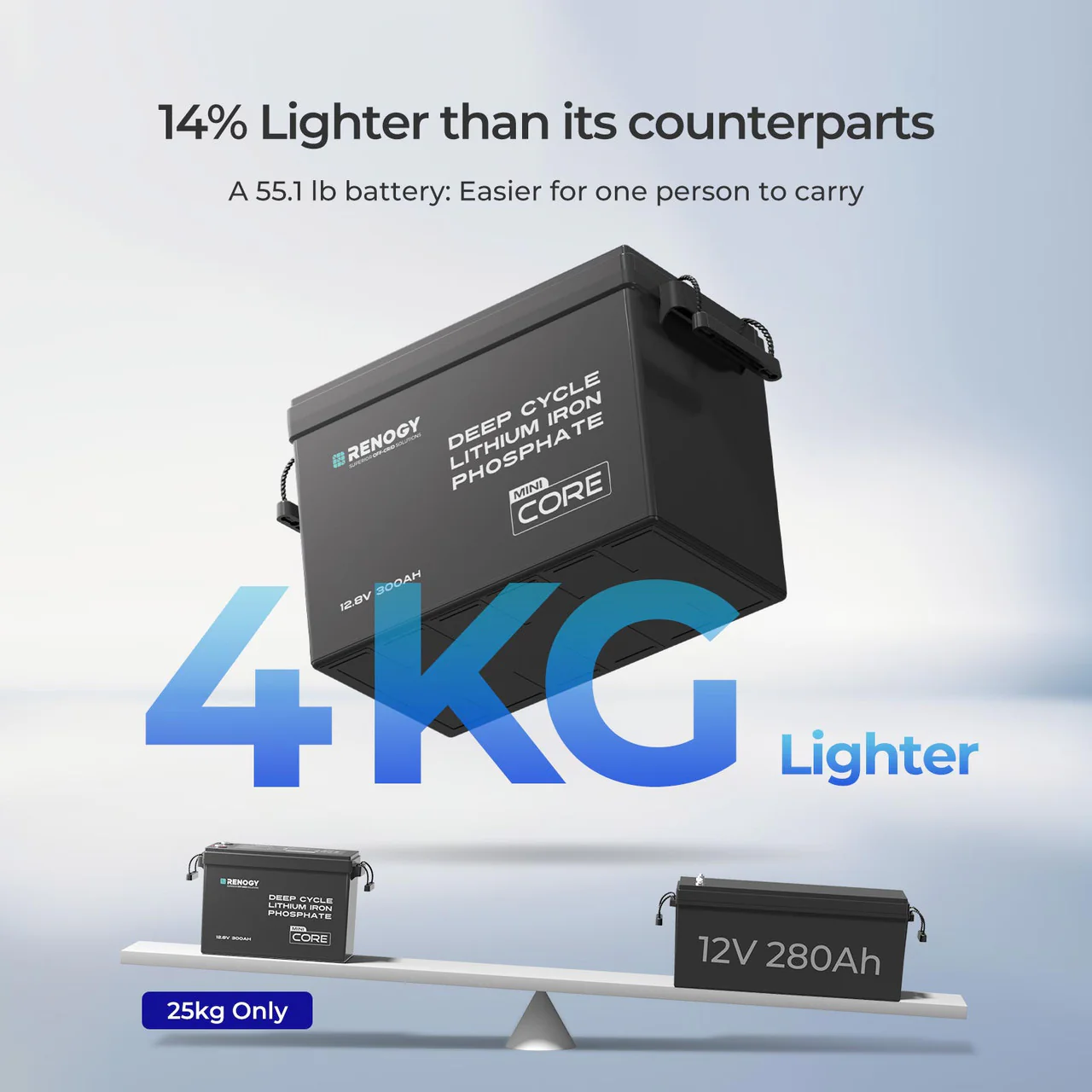

Weight: 25.0 kg / 55.1 lbs
Terminal Bolt Size : M8 × 1.25 × 12 mm & M8 × 1.25 × 16 mm
Energy: 3840Wh
Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)
Charge Temperature: 32°F to 140°F (0°C to 60°C)
Discharge Temperature: -4°F to 149°F (-20°C to 65°C)
Operation Relative Humidity: 5% to 95%
Protection Rating: IP65
Charge Voltage: 10V to 14.8V
Maximum Continuous Charge Current: 150A
Maximum Continuous Discharge Current: 200A
Peak Discharge Current: 380A @ 10s
MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS and UKCA: YES
Warranty: 5-year material warranty
