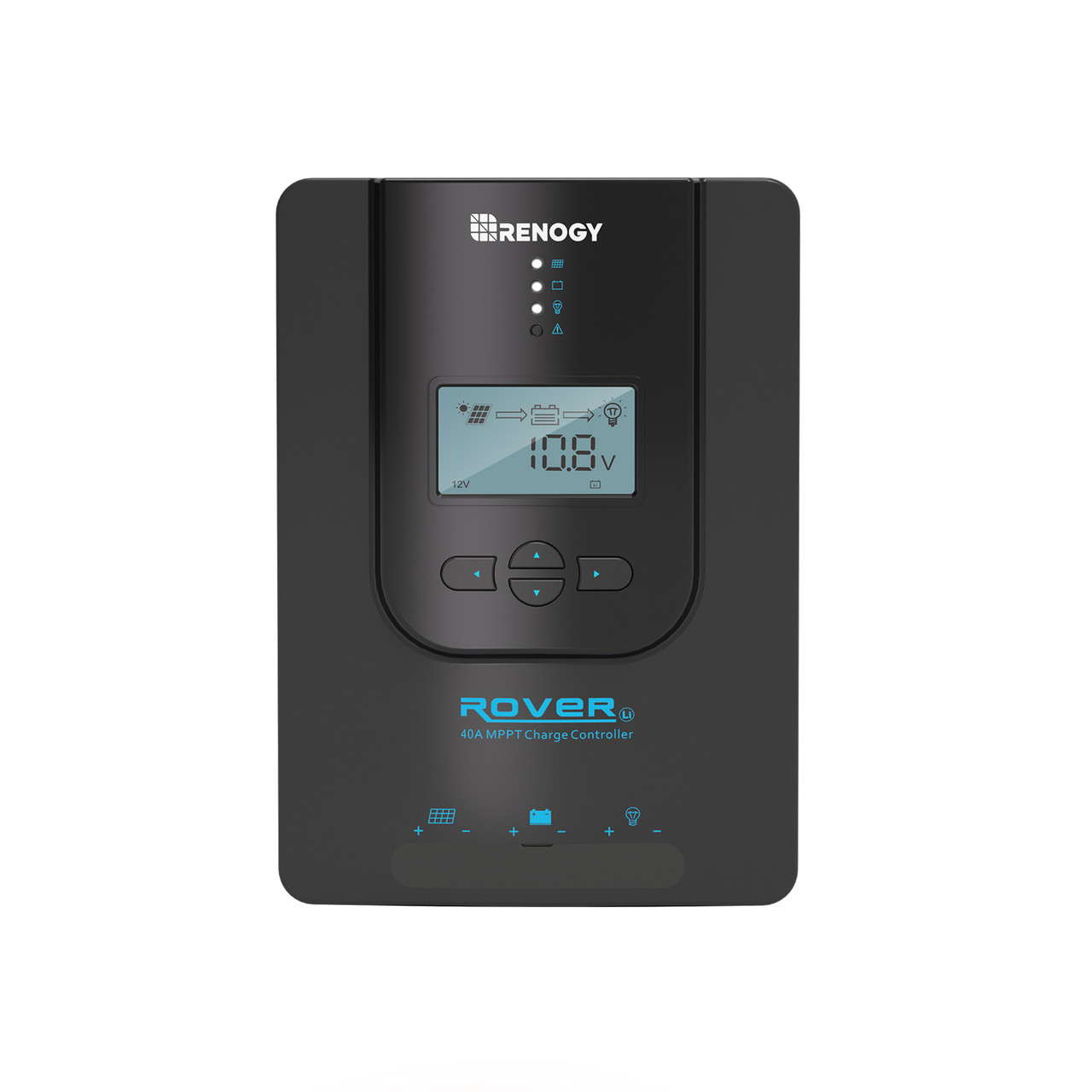

Renogy Rover Li 40 Amp MPPT Solar Charge Controller (With BT)
Renogy Rover Li 40 Amp MPPT Solar Charge Controller (With BT) - Image 2
Renogy Rover Li 40 Amp MPPT Solar Charge Controller (With BT) - Image 3
Renogy Rover Li 40 Amp MPPT Solar Charge Controller (With BT) - Image 4
Renogy Rover Li 40 Amp MPPT Solar Charge Controller (With BT) - Image 5
Renogy Rover Li 40 Amp MPPT Solar Charge Controller (With BT) - Image 6

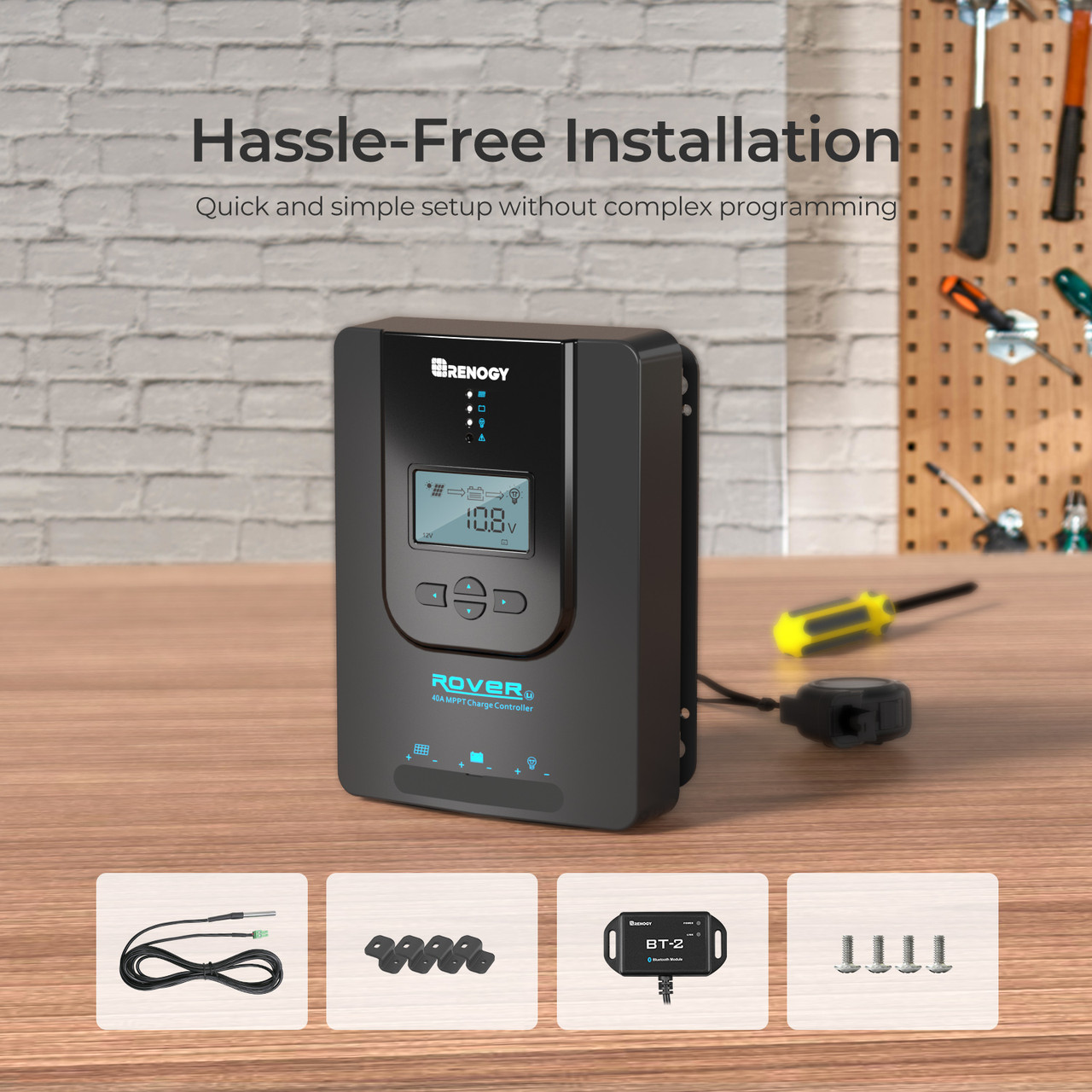

Renogy Rover Li 40 Amp MPPT Solar Charge Controller (With BT) - Image 7
Renogy Rover Li 40 Amp MPPT Solar Charge Controller (With BT) - Image 8
Renogy Rover Li 40 Amp MPPT Solar Charge Controller (With BT) - Image 9

Renogy Rover Li 40 Amp MPPT Solar Charge Controller (With BT)

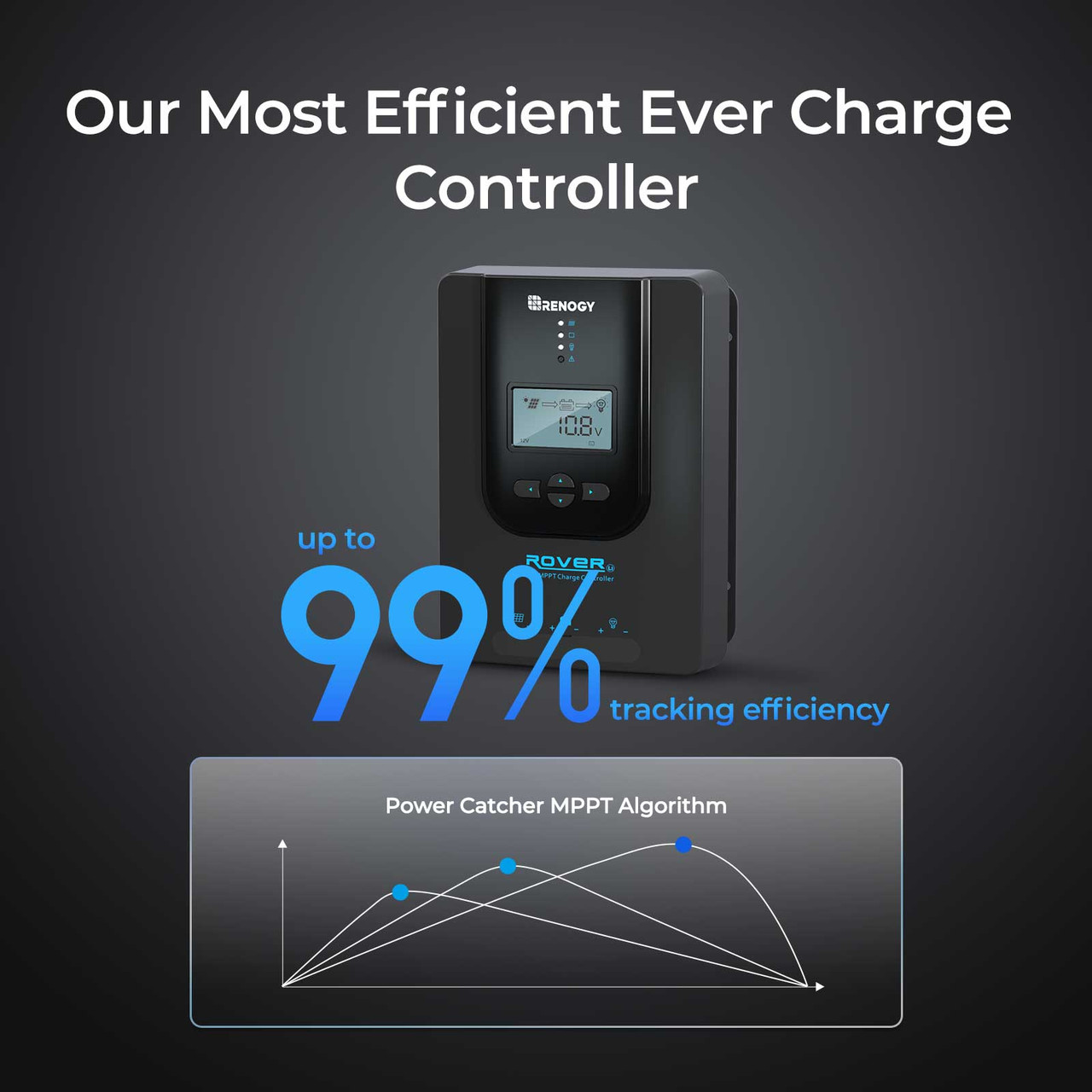

  • Exceptional Efficiency: Achieves up to 99% tracking efficiency and 98% peak power conversion.

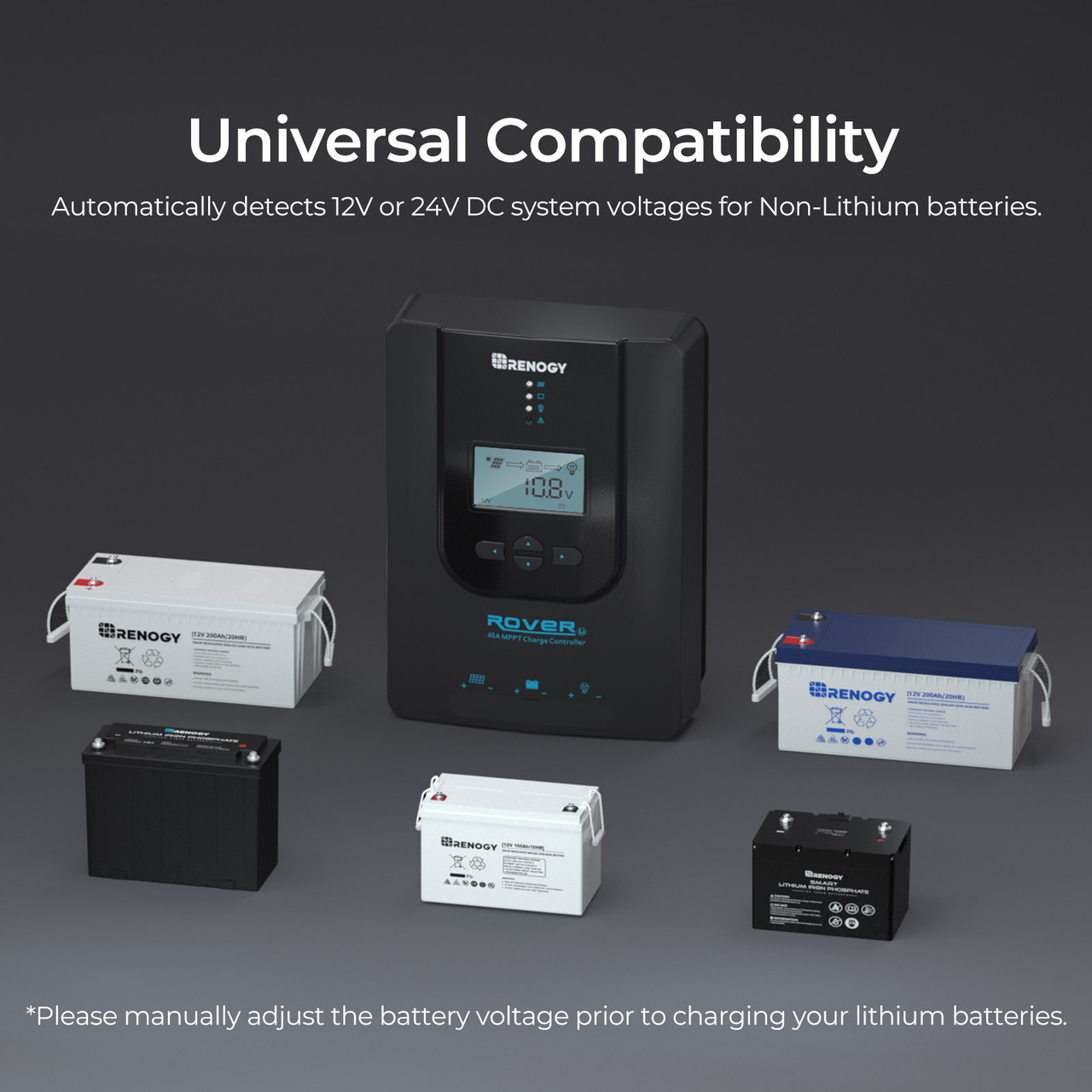

  • Smart Voltage Detection: Automatically recognizes 12V or 24V systems (non-lithium batteries).

  • Comprehensive System Protection: Built-in safety features guard against common electrical issues.

  • Advanced 4-Stage Charging: Ensures safe, efficient charging with Bulk, Boost, Float, and Equalization modes.

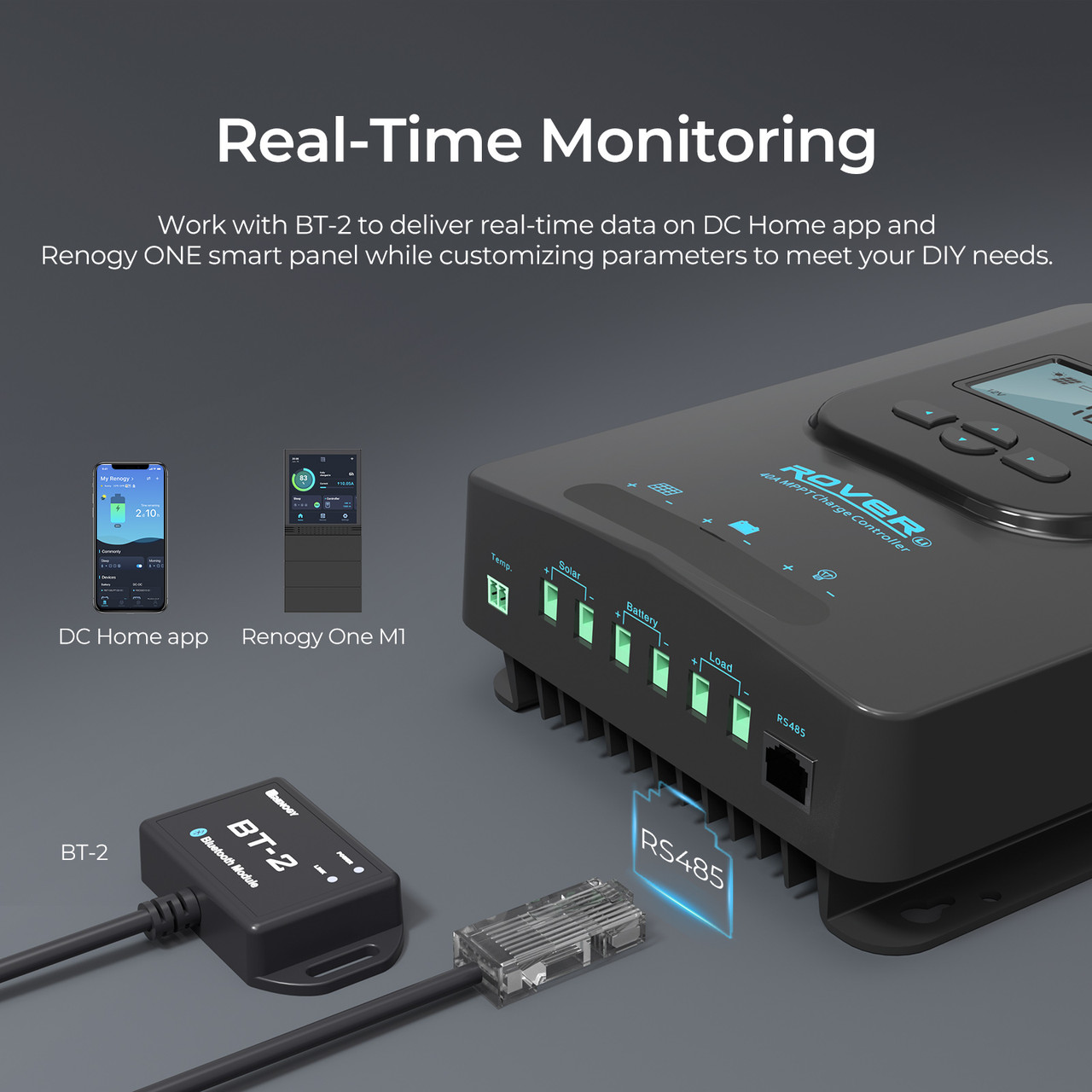

  • Flexible Control & Monitoring: Offers multiple load control options and supports remote system monitoring.

Description

Rover Li 40 Amp MPPT Solar Charge Controller

An advanced charge controller that maximizes the performance of your solar system.

Impressive Output

Maximize Your System Efficiency

The Rover 40A Solar Charge Controller is the ideal choice for both 12V and 24V systems, offering unparalleled versatility, superior performance, and peace of mind. By maximizing power from your solar panels, it ensures optimal charging efficiency, backed by smart features and the best warranty on the market. Perfect for customers who value top-class functionality and innovative design.

Enhanced Safety

Prioritize Safety with Battery Voltage Setting

Setting the battery voltage before connecting the Rover Charge Controller is essential for ensuring enhanced safety and optimal performance.

Simple and Intuitive Programming

Customize settings and monitor charging parameters with ease.

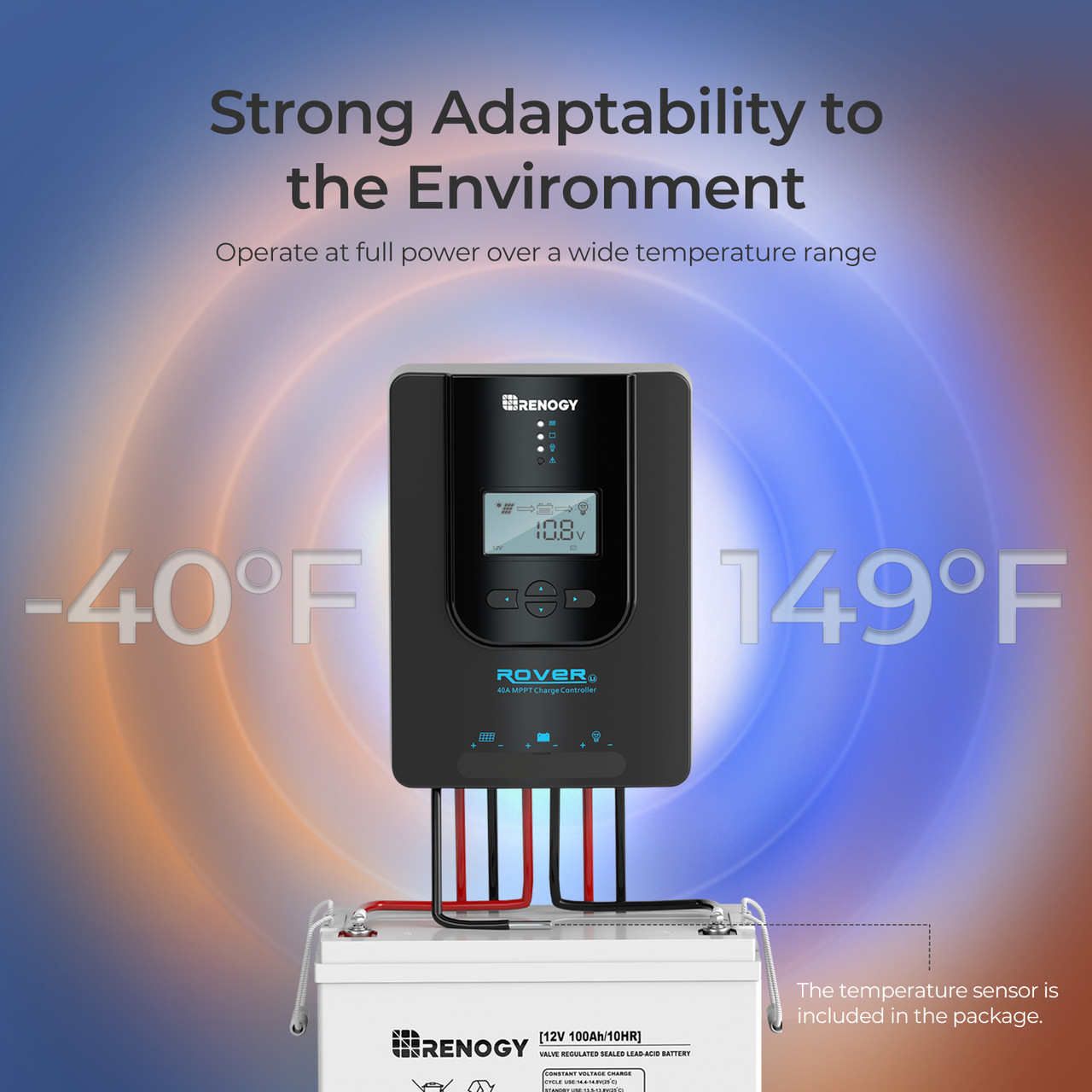

Powerful Heat Dissipation

Operates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.

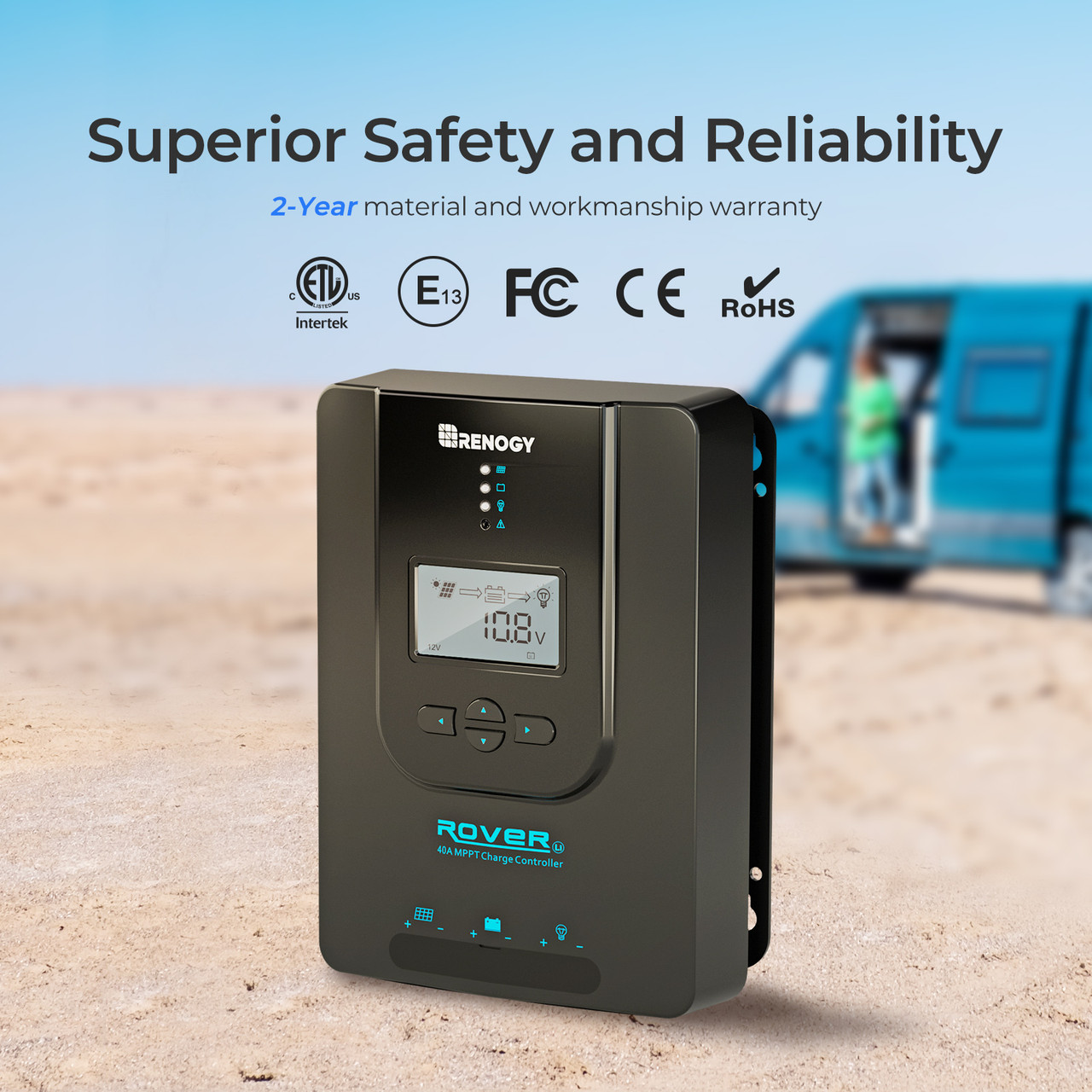

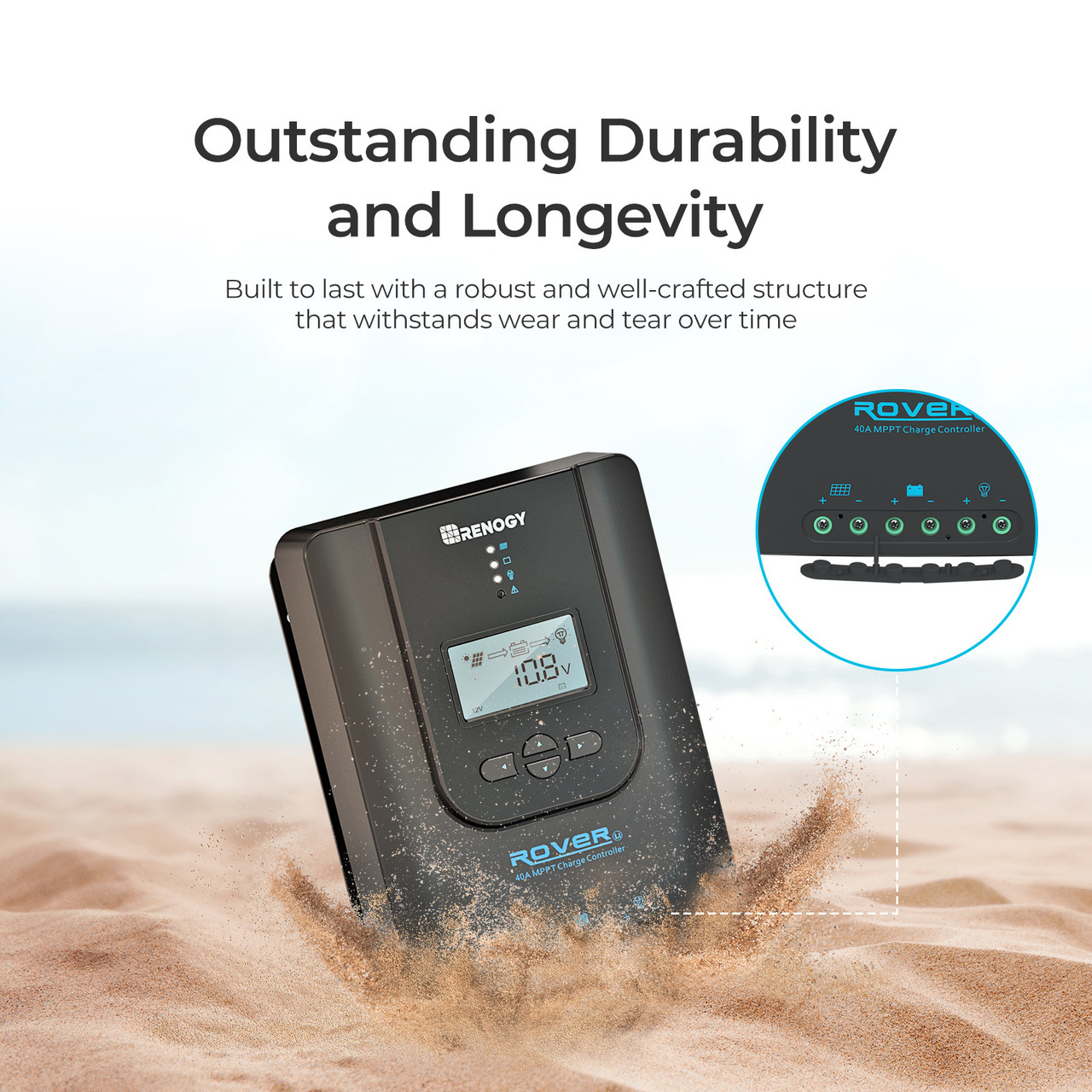

Exceptional Resilience and Long-lasting Performance

Crafted with rust- and corrosion-resistant materials and coatings, the Rover Charge Controller ensures long-lasting durability and reliable performance for your solar energy system.

Wiring Steps

Do not insert the wires into the space below the socket/hatch. This will damage terminals because of loose connections.
Step 1.
Loosen the screws above the terminals to make the socket/hatch descend.
Step 2.
Insert the wires into the socket/hatch. The terminals on the Rover 40A can accept up to 8AWG of wires.
Step 3.
Tighten the screws to elevate the socket/hatch to complete the wiring.

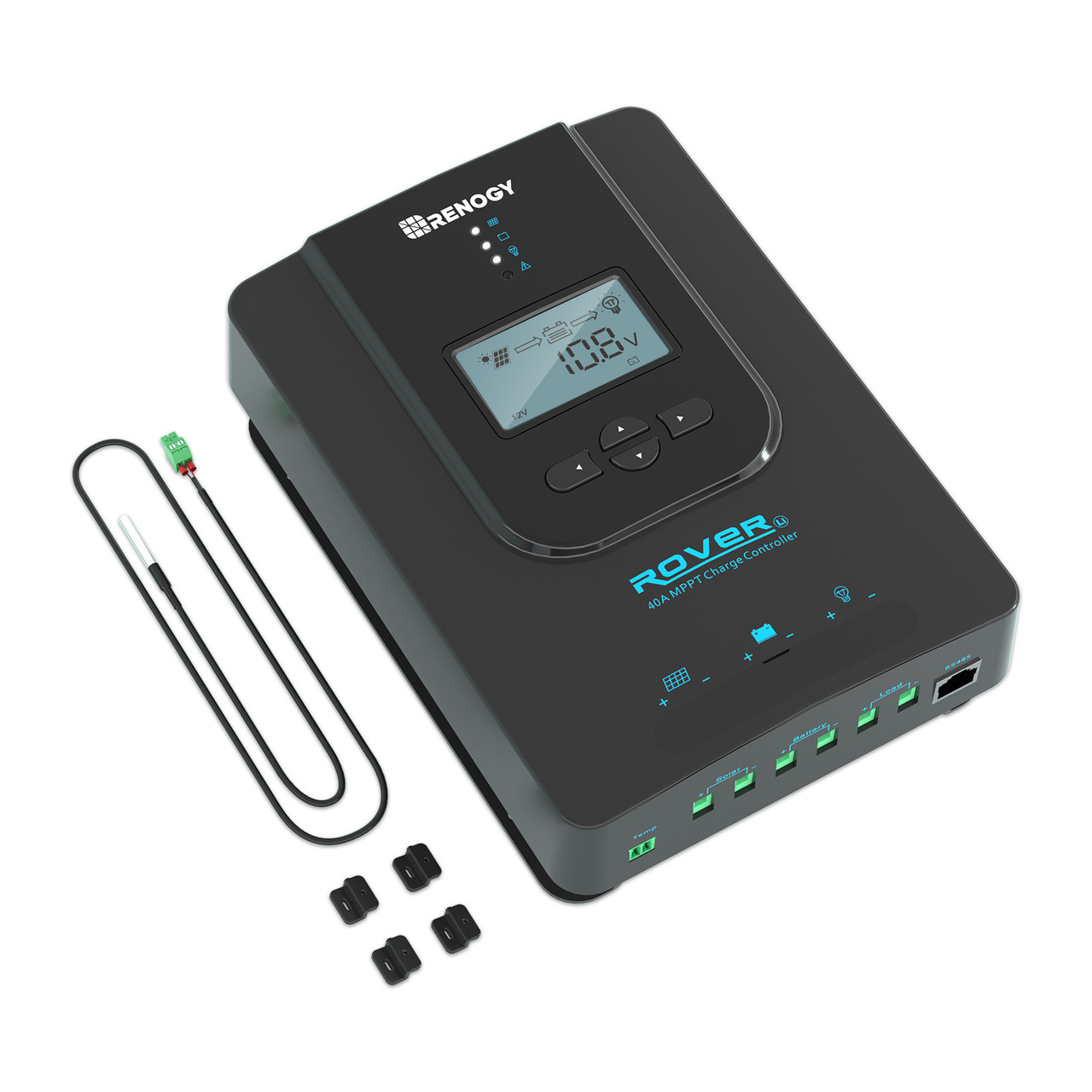

What’s in the box
The Renogy Difference
Going solar is not that complicated. Renogy is here to help you build your system faster so you can roam further!

Specifications

Renogy Rover 40A MPPT Solar Charge Controller (RNG-CTRL-RVR40)
Electrical Parameters Electrical Parameters
Nominal System Voltage 12/24V Auto-Detect Rated Charge Current 40A
Solar Input Voltage Range (Voc) 15VDC ~ 100VDC Max. PV Input Power 12V/520W, 24V/1040W
Battery Input Voltage Range 10VDC ~ 32VDC Power Consumption <100mA/12V; <58mA/24V
Ground Type Negative Electrical Protection Overcharging, over-discharging, overload, short circuit; capable of charging over-discharged lithium batteries
Environmental Data Environmental Data
Protection Level IP32 Operating Temperature -35°C to 45°C / -31°F to 113°F
Storage Temperature -35°C to 75°C / -31°F to 167°F Humidity ≤ 90%, No Condensation
Temperature Compensation -3mV/°C/2V
Mechanical Specifications Certifications & Warranty
Dimensions 238 x 172 x 77 mm / 9.38 x 6.78 x 3.05 in Weight 2.0 kg / 4.41 lb
Max Terminal Size 8 AWG / 10 mm² Temperature Sensor Included (9.8 ft cable length)
CE Certified YES FCC Class B YES
Warranty 3-Year Material & Workmanship
