The Renogy 20A AC-to-DC Charger is an automatic, portable charger intended for 12V Lithium-iron phosphate (LFP) batteries. It includes 12AWG alligator clips and outputs power based on the battery’s power, voltage, and current condition. The unit’s status indicator light illustrates the connected battery’s operating mode and condition. The Portable LFP charger automatically monitors and maintains the battery at full charge.

Description

Key Features

  • Automatic LFP Battery Charging with a wide input voltage range
  • Easy-to-understand LED indicator for charge status
  • Simple Plug-and-Play Technology with Alligator Clips
  • Compatible with Renogy 12.8V Lithium Batteries

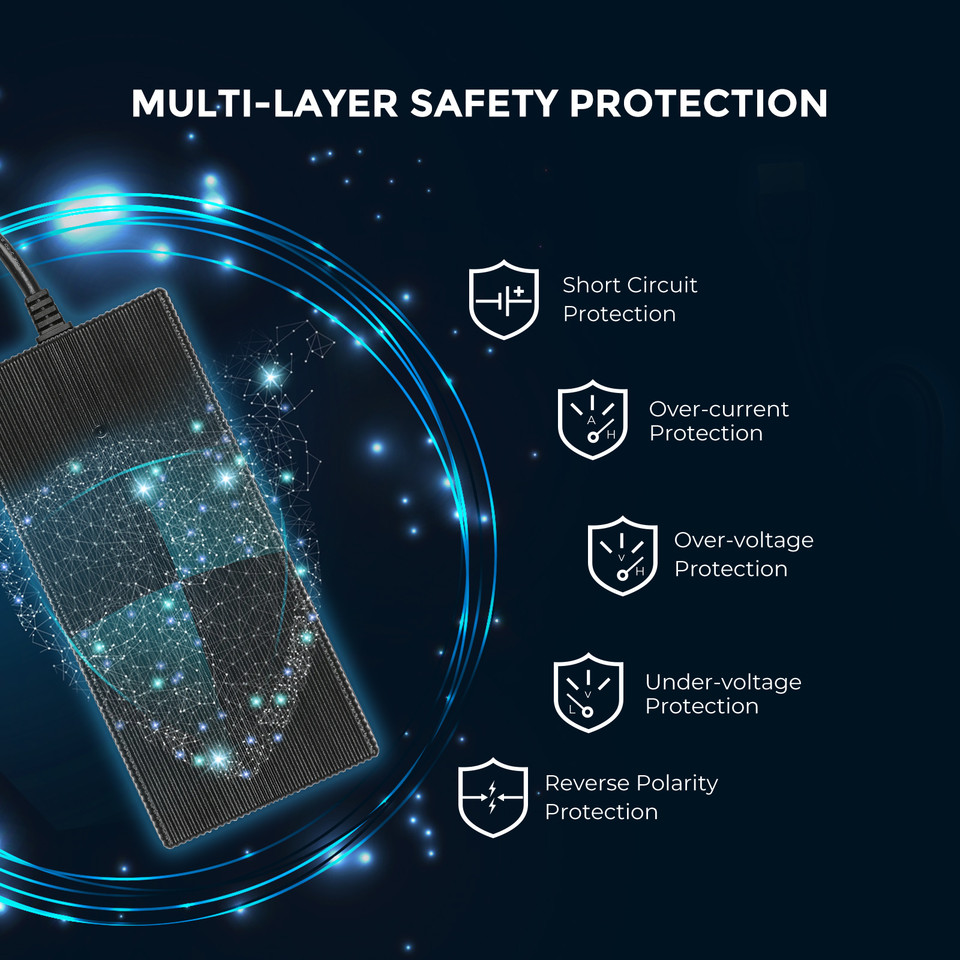

  • Electronic Protections and Lithium Activation

Specifications

20A AC-to-DC LFP Portable Battery Charger
Input Voltage: 100-240 VAC ~ 50/60Hz Input Amps: 5A Max
Output Voltage: 14.6 VDC Output Amps: 20A
Minimum Battery Voltage: 8V Efficiency: 93%
Room Operating Temperature: -29°C~45°C / -20°F~113°F Storage Temperature: -40°C~75°C/ -40°F ~ 167°F
Self-Consumption: 50mA Current Protection: 250V 10A Fuse built in
Dimensions: 9.17 x 4.25 x 2.52in / 233 x 108 x64mm Weight: 3.75 lbs / 1.7kgs

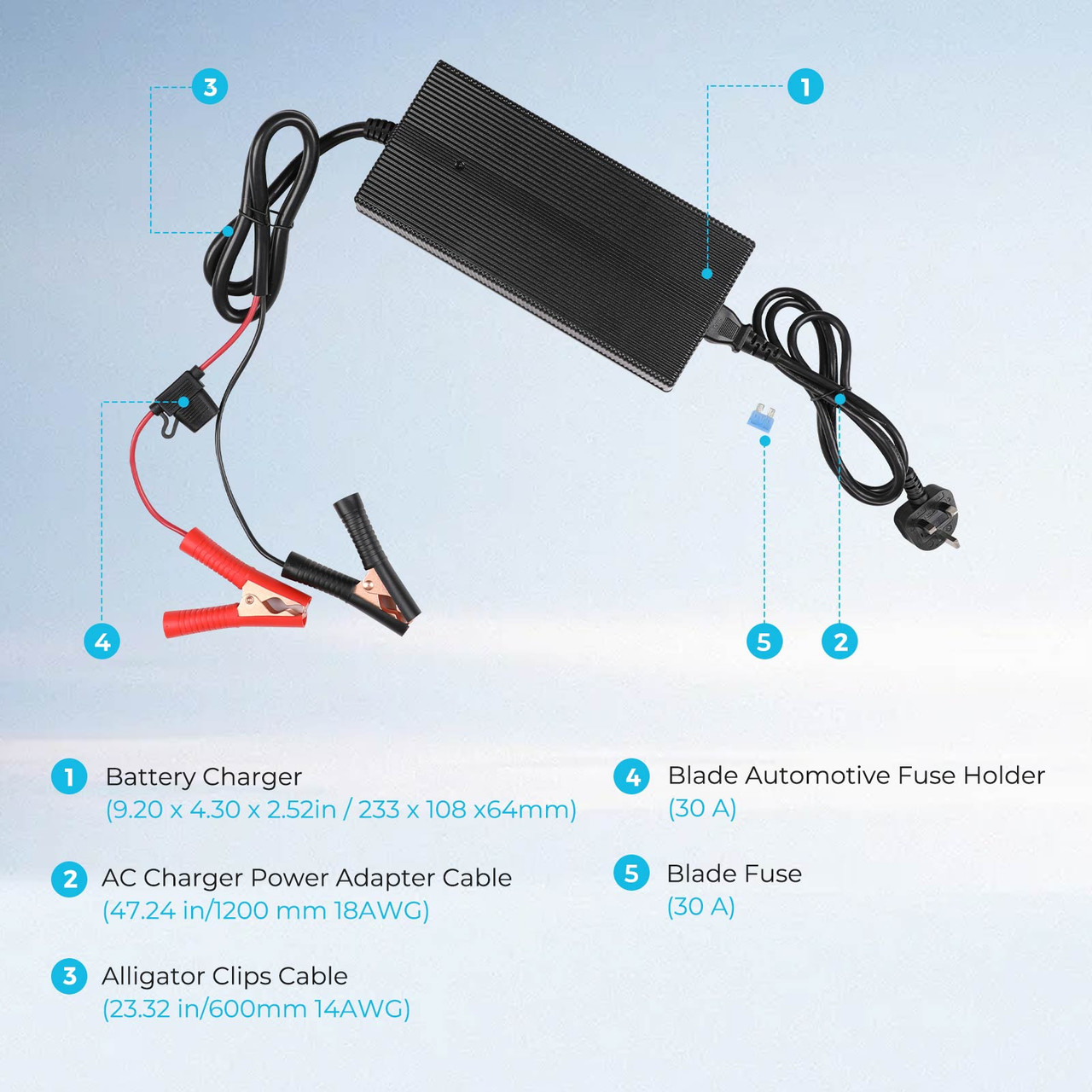

Cable Length: Approx 39in / 1000mm Cable Gauge: 12 AWG
Protection: Overcurrent Protection (Fuse 250V 10A), Short Circuit Protection Certifications: CE, ETL, FCC, TUV
