REGO 30A MPPT, 12/24V 30A 100V

  • Smart Monitoring – Built-in Bluetooth lets you track performance and control settings via the Renogy app or RENOGY ONE Core.

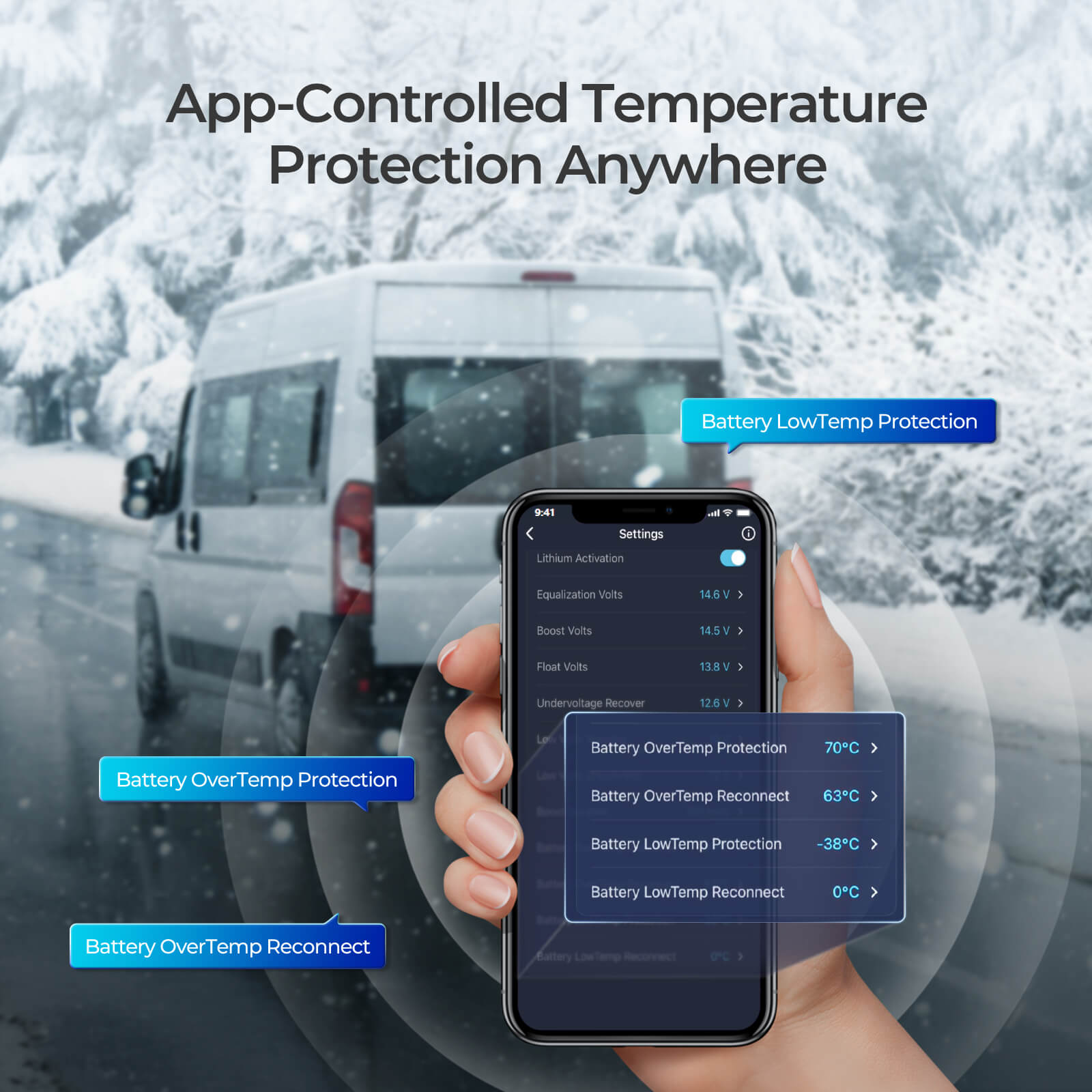

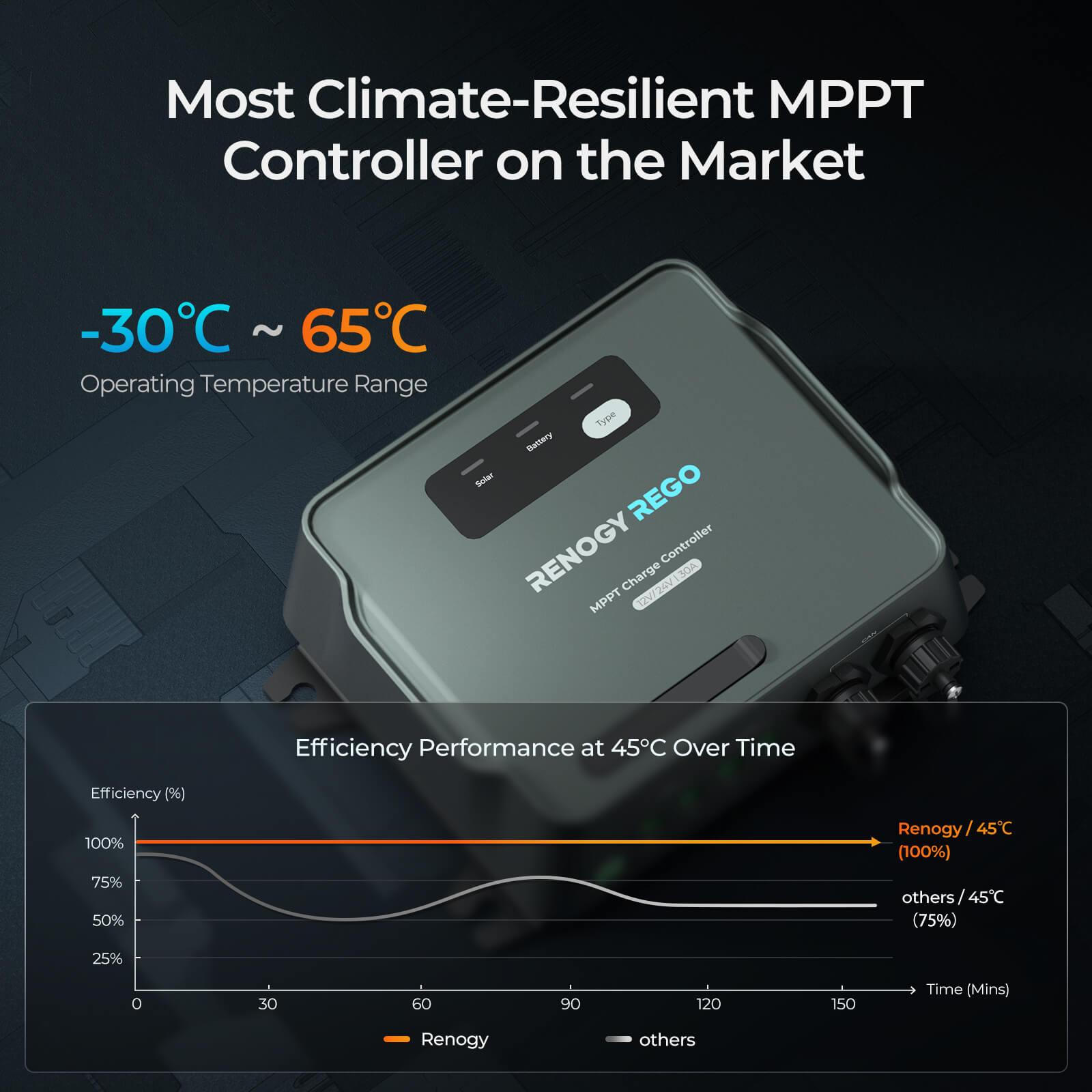

  • All-Weather Ready – Operates from -30℃ to 65℃ with app-managed battery protection in extreme temperatures.

  • Lithium-Ready – Instantly activate lithium batteries through the app—no manual access needed.

  • Quiet & Durable – Die-cast aluminum housing provides efficient cooling and silent performance under 30 dB.

  • Versatile & Safe – Supports 12V/24V systems with 13 advanced protections and delivers up to 900W output.

£214.00

Description

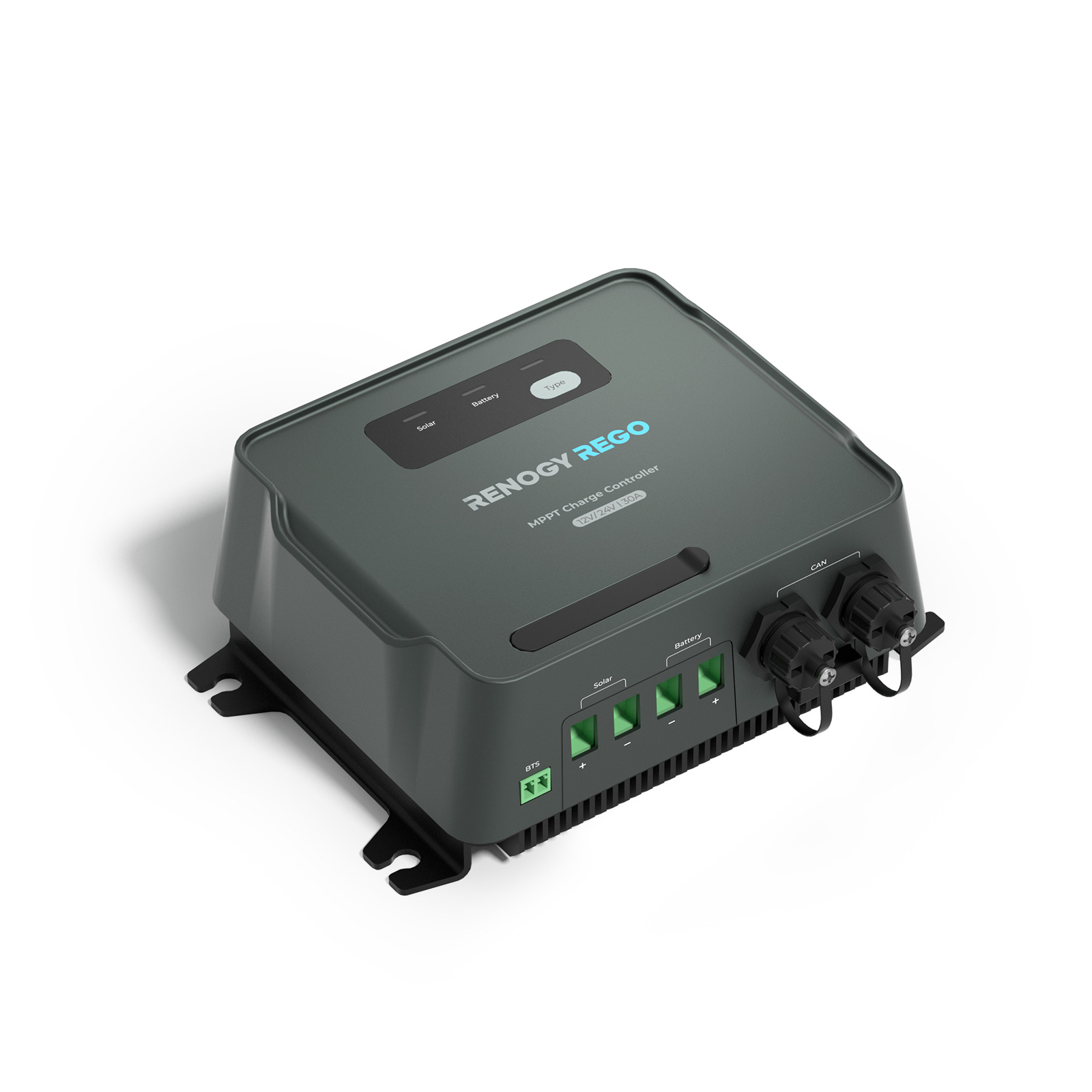

Renogy REGO 30A MPPT Solar Charge Controller

Power made simple—this intelligent controller supports both 12V and 24V systems, delivering up to 900W with high efficiency. Built to endure harsh climates (-30℃ to 65℃), it features built-in Bluetooth for seamless app control and remote monitoring. Enjoy quiet, durable performance with die-cast aluminum cooling, 13 safety protections, and easy lithium battery activation. Installation is quick with included hardware, making it ideal for SUVs, vans, boats, and off-grid setups.

RENOGY REGO 12V/24V 30A MPPT Solar Charge Controller
Engineered for harsh environments, equipped with Bluetooth, and controlled via app—smart power, made simple

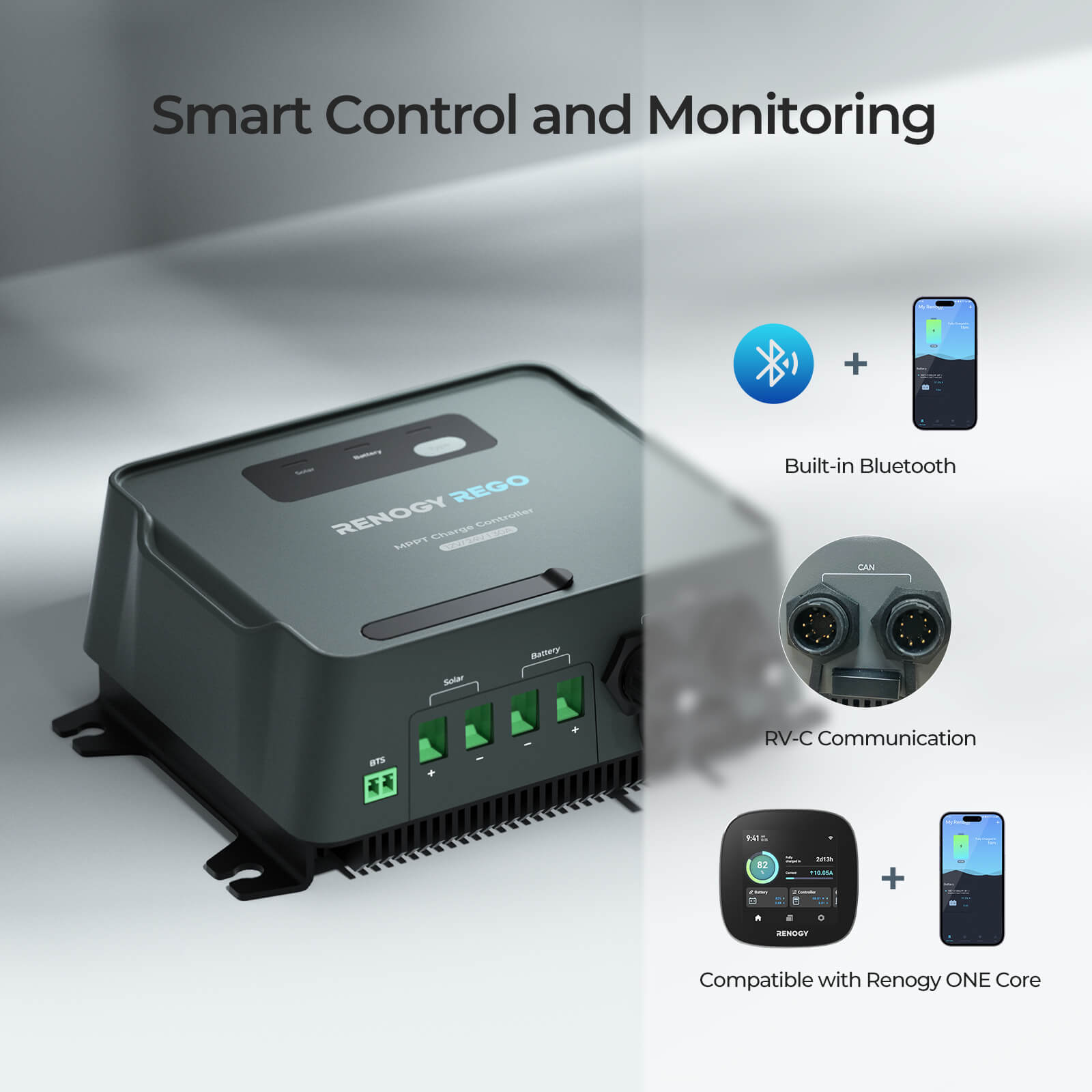

Easy Monitoring with Built-in Bluetooth

Monitor your system via the Renogy app or RENOGY ONE Core with real-time insights, 1-year data storage, and full remote control.

Effortless Lithium Battery Activation

Easily activate lithium batteries anytime through the Renogy app—no manual access required.

Superior Cooling and Silent Performance

Durable die-cast aluminum ensures efficient heat dissipation and ultra-quiet operation under 30 dB.

Versatile Power for 12V and 24V Systems

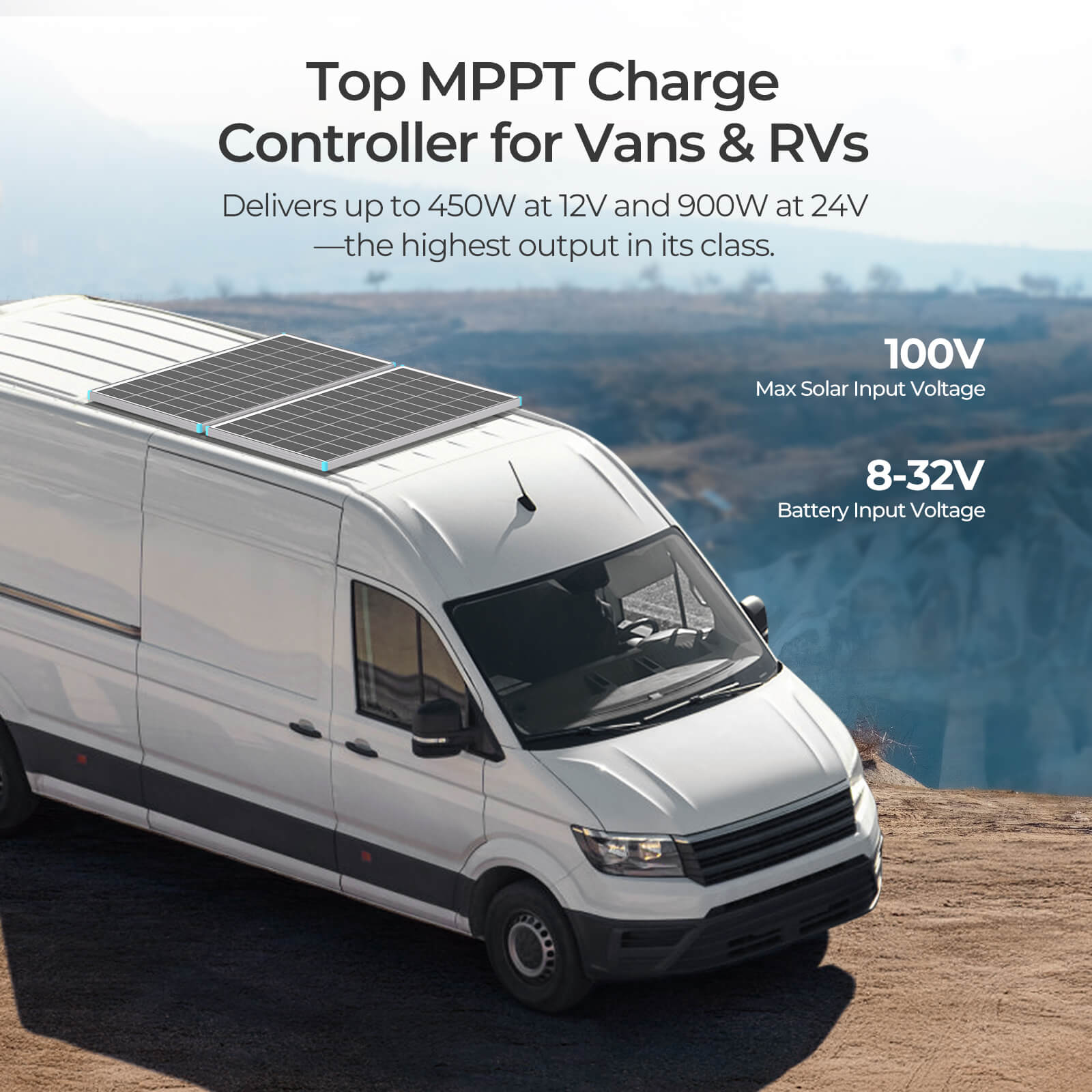

Delivers 450W at 12V and 900W at 24V—ideal for SUVs, vans, yachts, and off-grid setups.

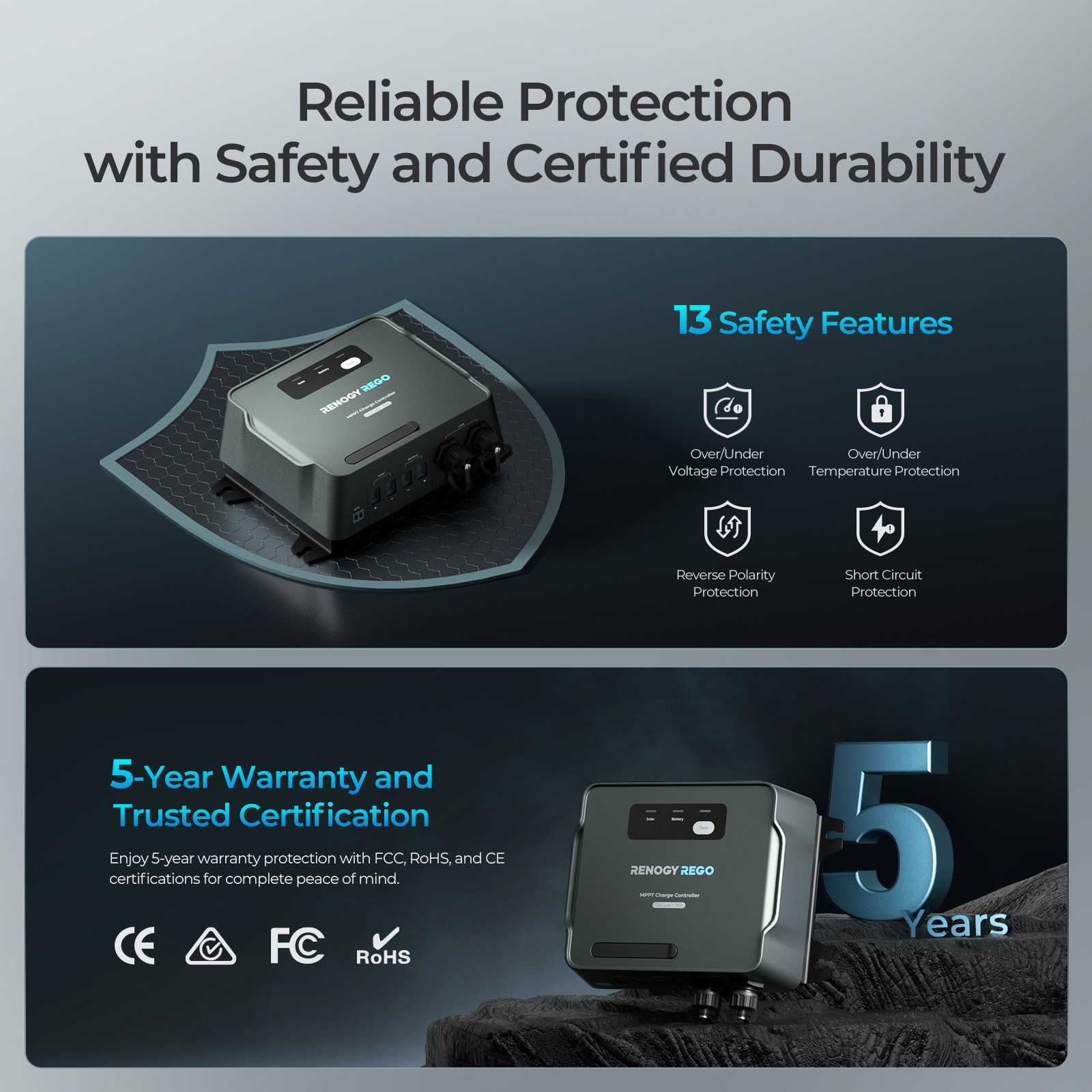

13 Protection Features for Ultimate Safety

Safeguard your system with protections like reverse current, overvoltage, and more.









Complete Package with Easy Setup

Includes mounting screws, temperature sensor, and a quick-start guide for fast installation.









Specifications

Electrical Specifications
Model RCC2430REGO
Nominal System Voltage 12V / 24V
Output Current 30A
Maximum Solar Input Voltage 100VDC

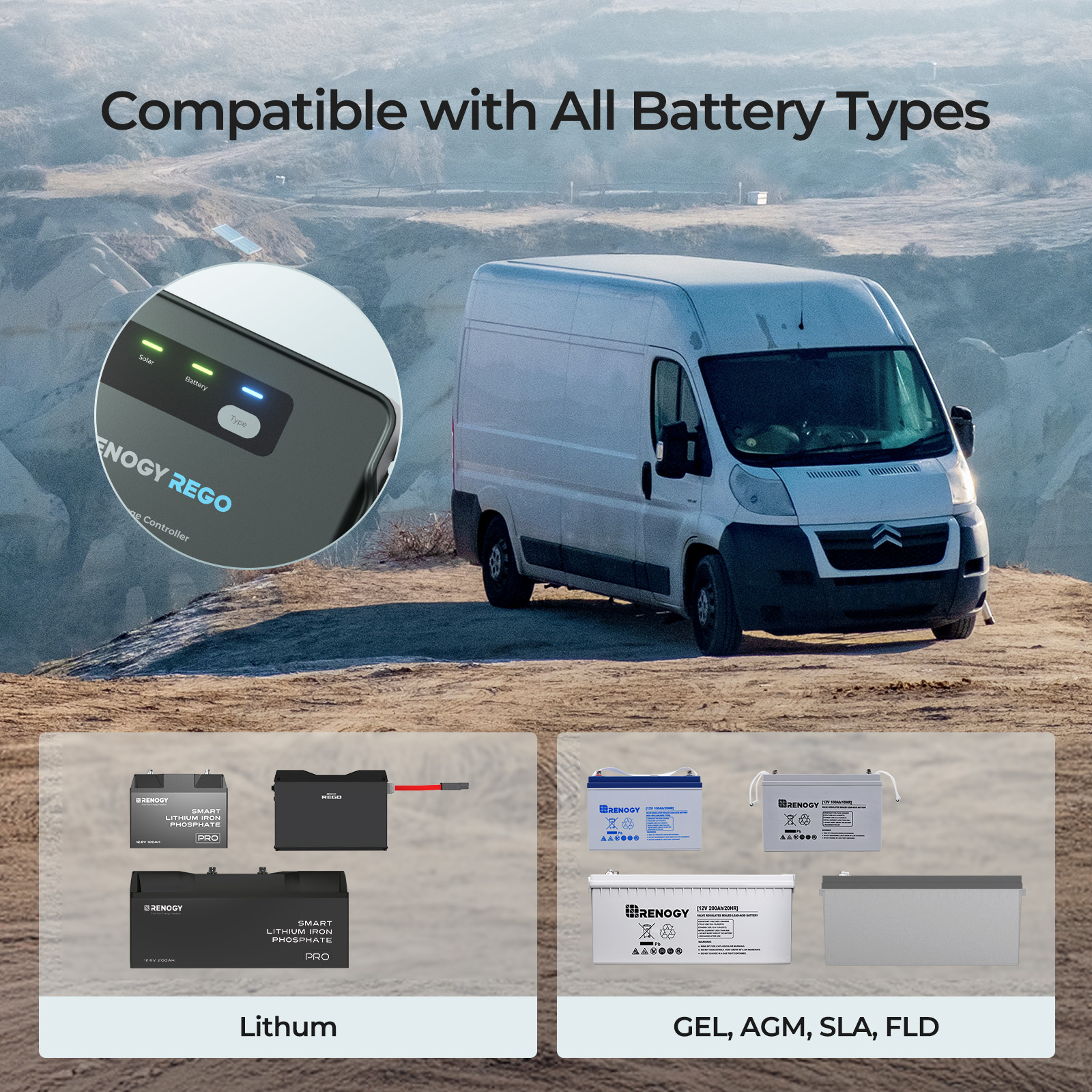

Supported Battery Types AGM, Flooded (FLD), Gel, Lithium (LI), Sealed Lead Acid (SLD), User Defined
Maximum Solar Output Power 450W (12V system), 900W (24V system)
Battery Operating Voltage Range 8V – 32V
Minimum Solar Input Voltage 15V
Maximum Solar Input Current 30A
MPPT Tracking Efficiency >99%
Charge Conversion Efficiency >97%
Temperature Compensation -3 mV / °C / 2V
Self Consumption 80 mA
Mechanical & Environmental Specifications
Grounding Common Negative
Maximum Terminal Size 8 AWG
Operating Temperature -22°F to 176°F (-30°C to 80°C)
Storage Temperature -31°F to 176°F (-35°C to 80°C)
Operating Humidity 0% – 95% RH (No Condensation)
Bluetooth Signal Range <5 m (with obstacles), <20 m (without obstacles)
IP Rating IP43
Communication Bluetooth, RV-C
Cooling Method Natural Cooling
Operating Altitude ≤ 3,000 m

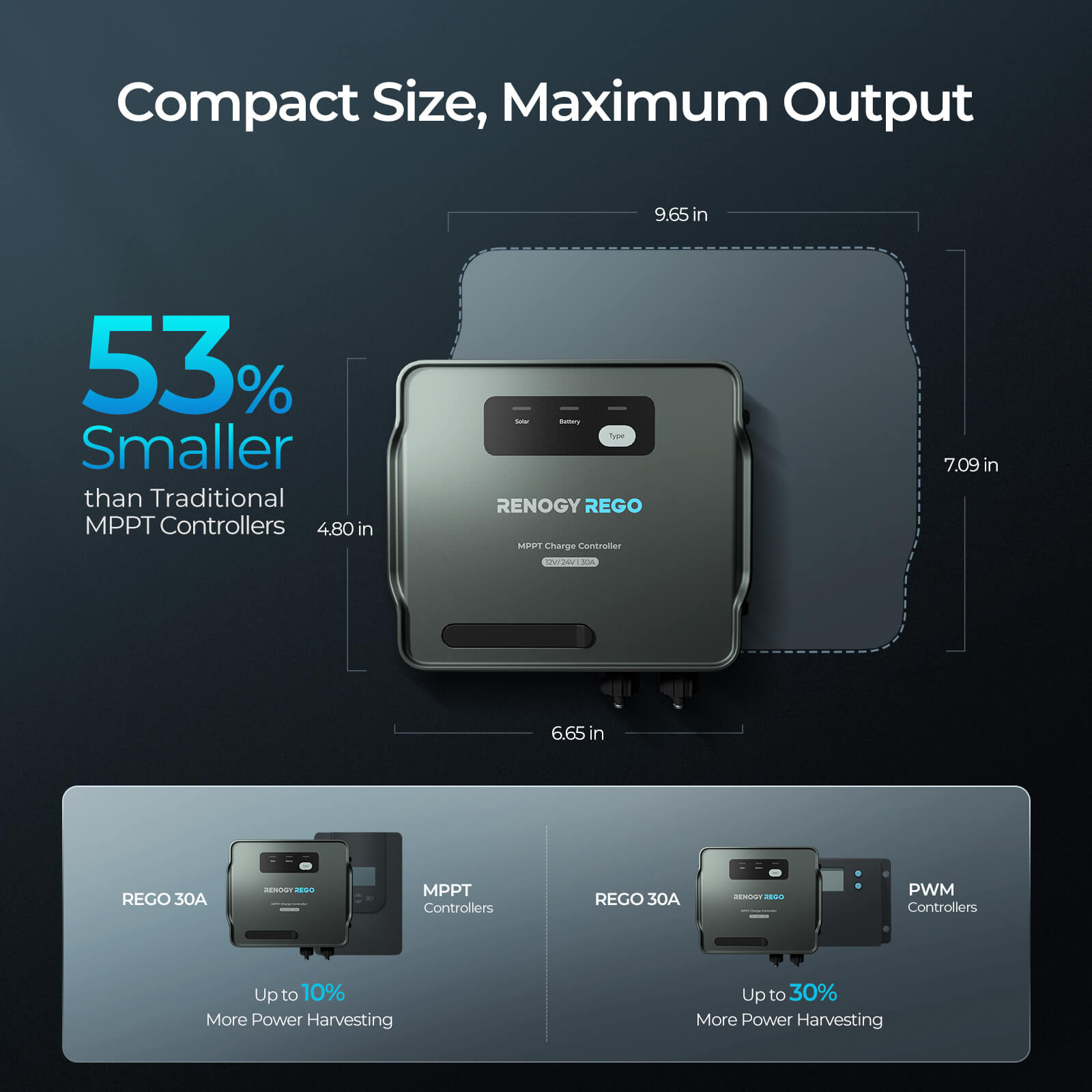

Dimensions (L × W × H) 6.65 × 4.80 × 2.36 in (169 × 122 × 60 mm)
Weight 2.69 lbs (1.22 kg)
Certifications CE, R10, FCC, RCM
Warranty 5 Years
