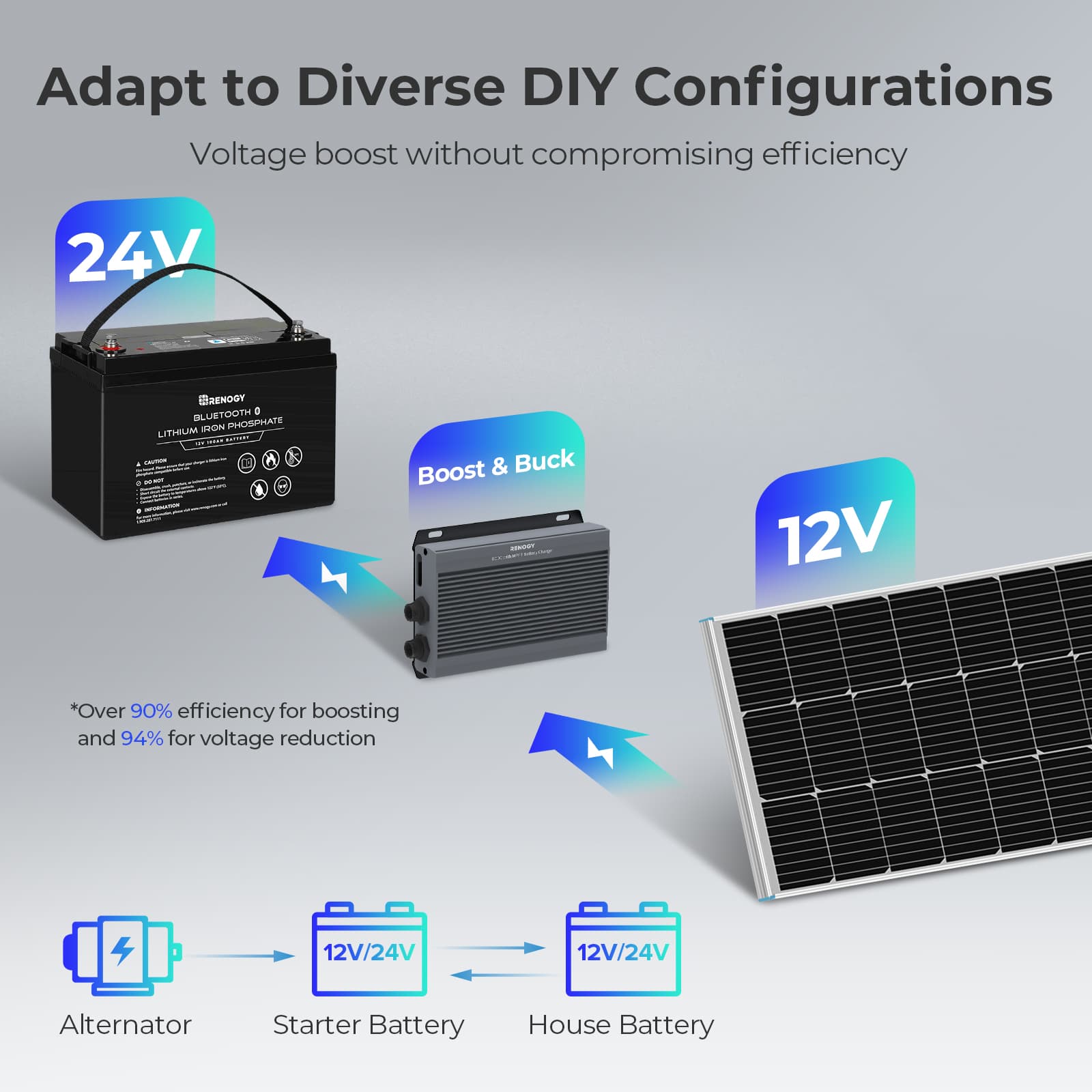

Versatile Dual-Charging: Supports both 12V and 24V systems with intelligent boost and buck functionality.

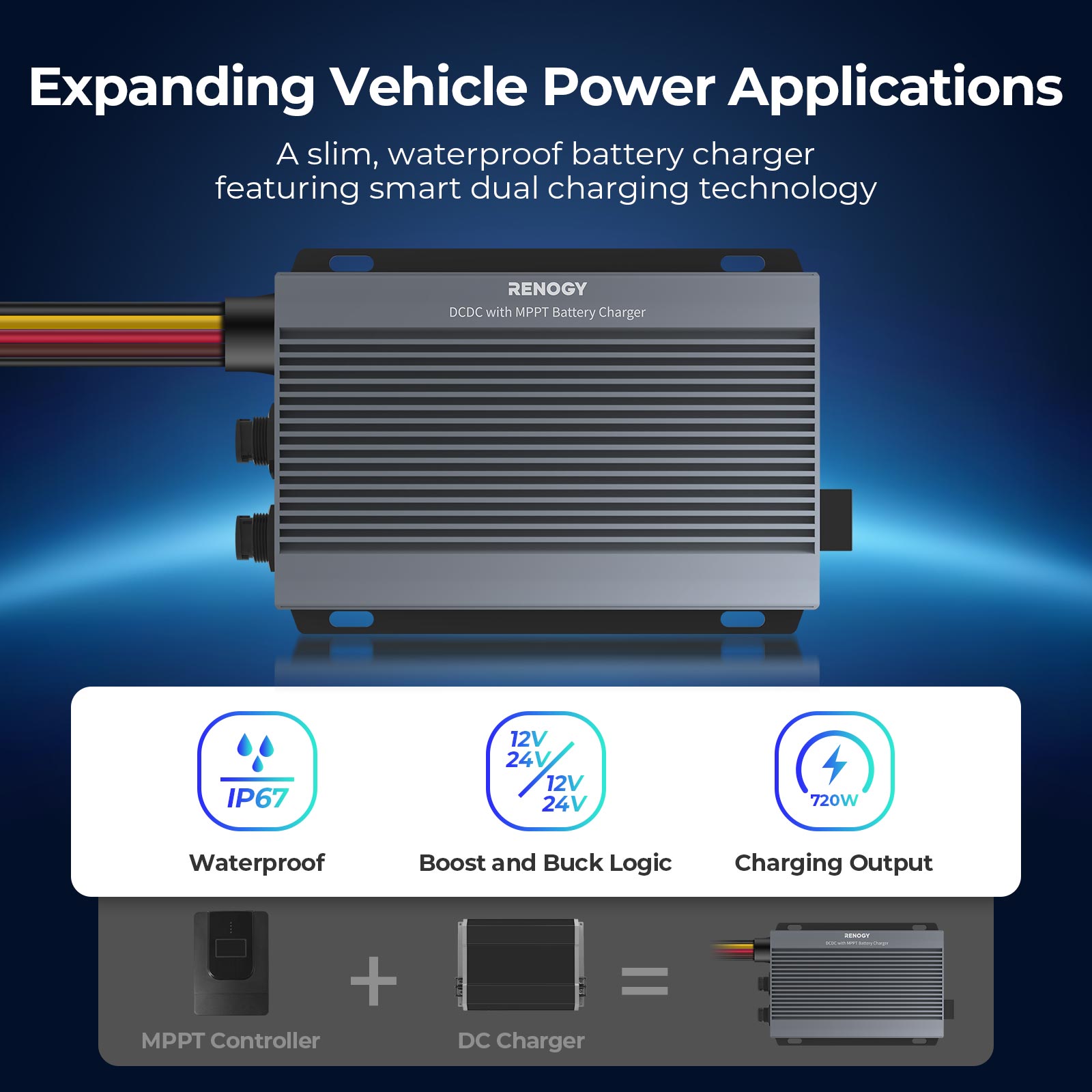

Weatherproof & Portable: Compact, lightweight, and IP67-rated for reliable performance in any environment.

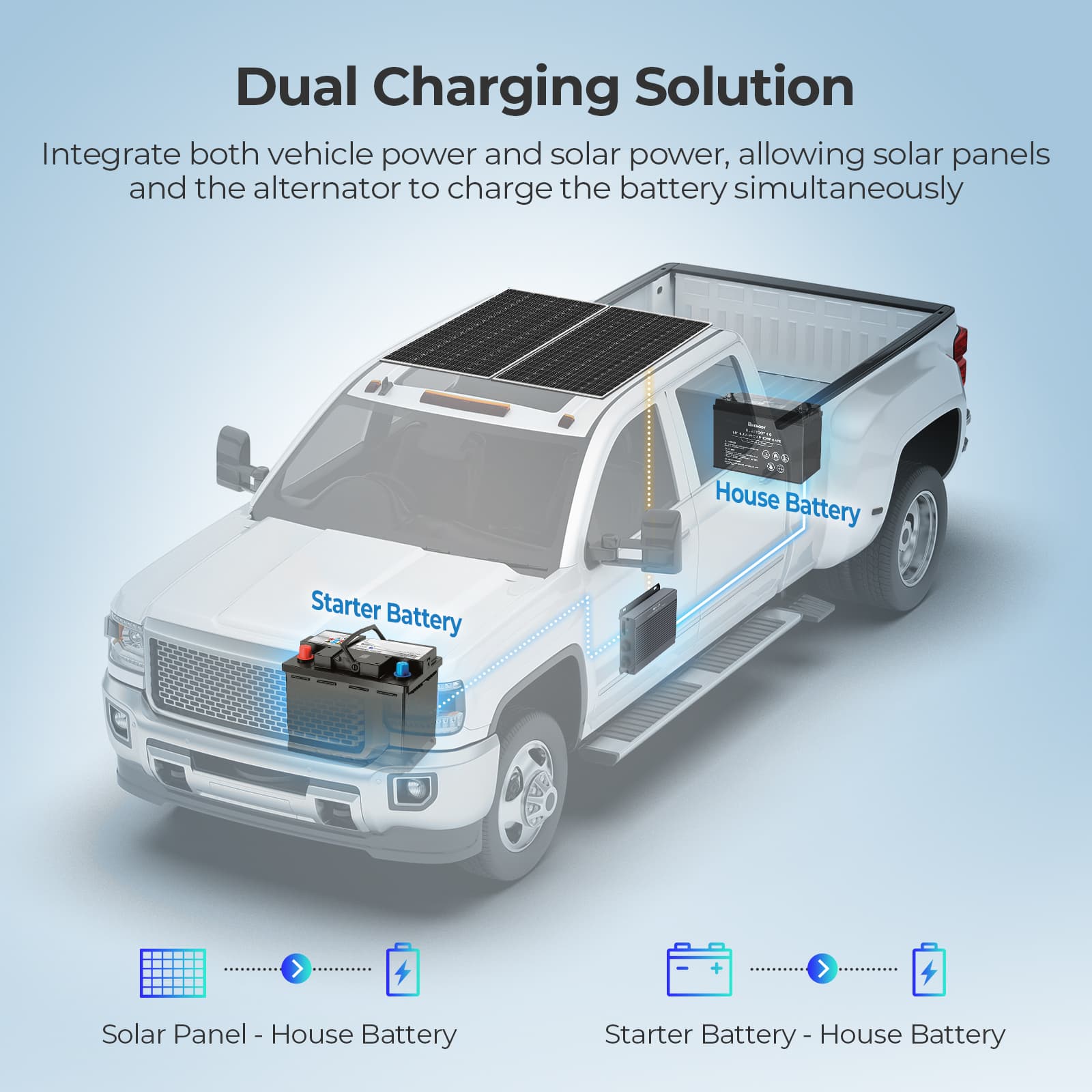

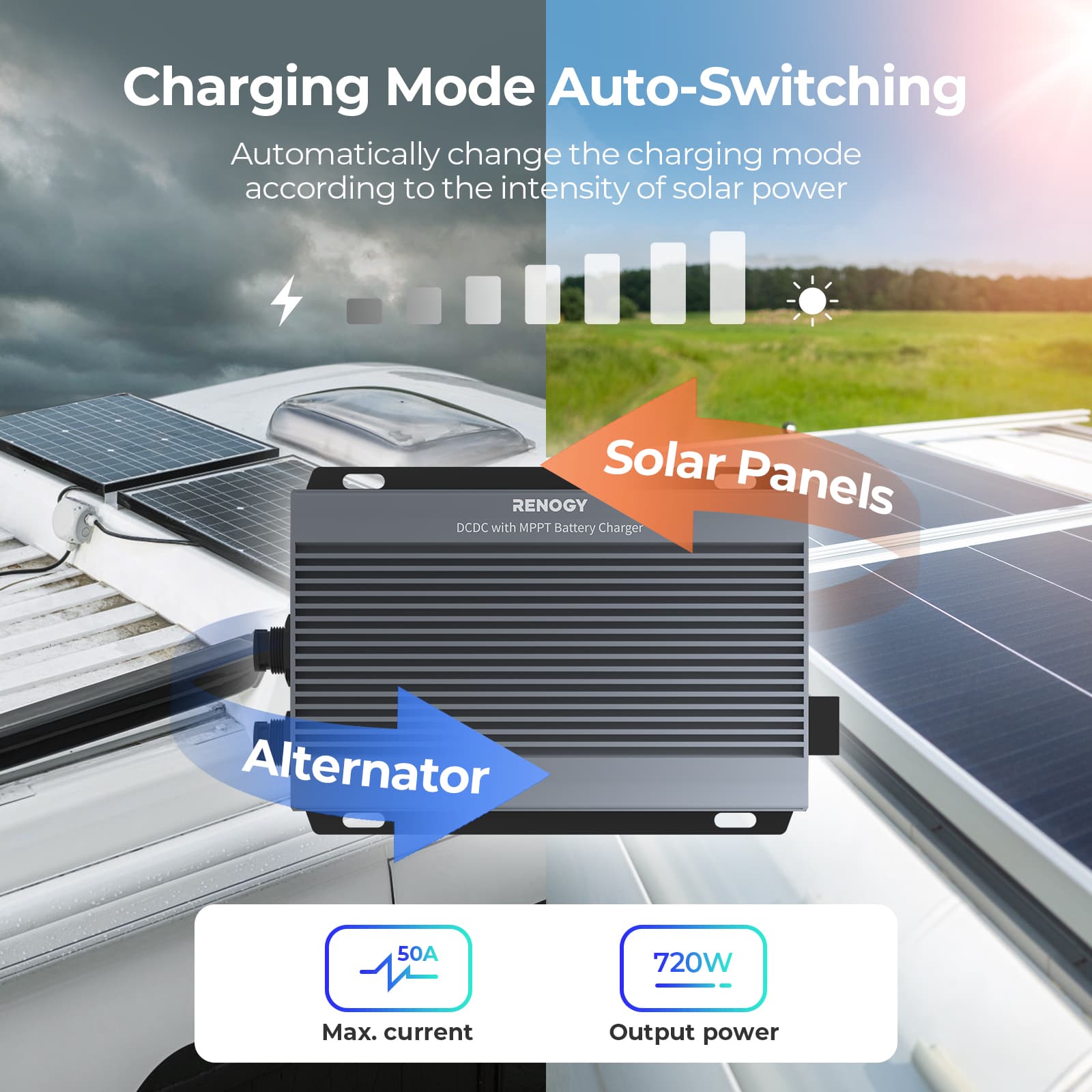

Smart Energy Prioritization: Automatically switches charging sources, favoring solar and green power when available.
Certified Safe & Tested: CE, FCC, and RoHS certified with full compliance and verified testing.
Connected Power Monitoring: Features Bluetooth monitoring and wired CAN communication for real-time data access.
£305.99

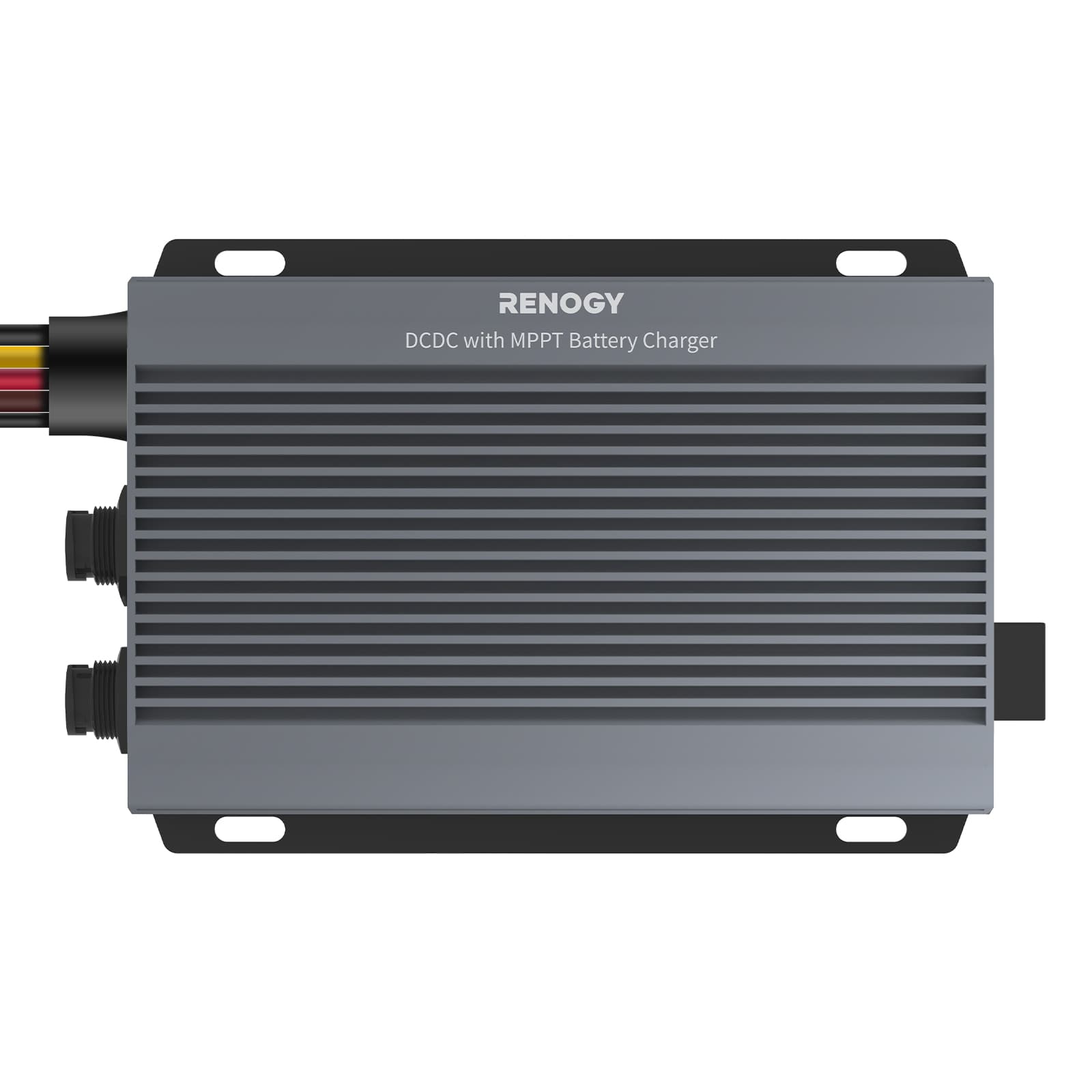

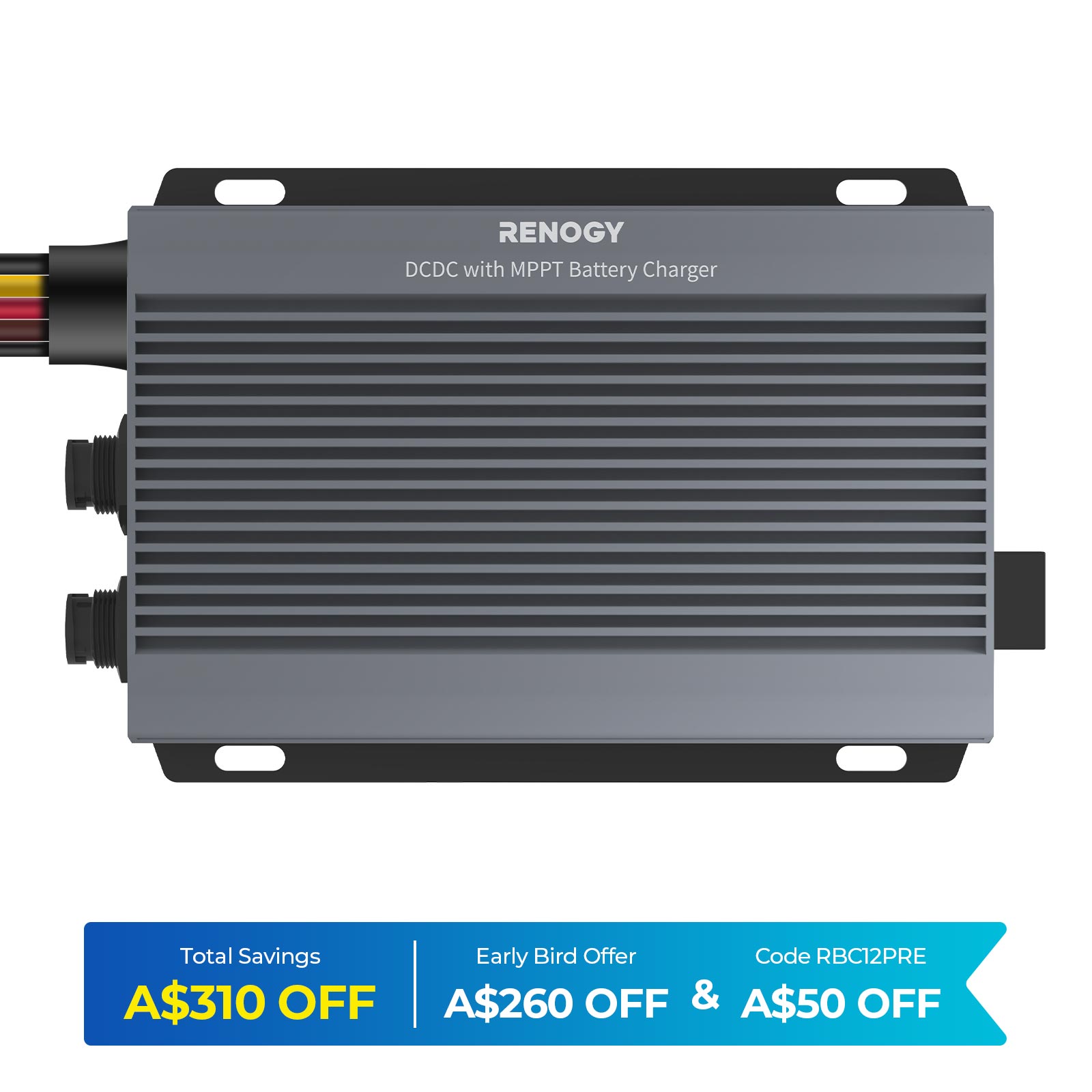

The Renogy IP67 50A DC-DC Dual Input Battery Charger with MPPT is a slim and waterproof solution for tight spaces. With intelligent boost and buck logic, this charger supports 12V/24V-12V/24V systems and prioritizes solar energy to efficiently charge your house battery and reduce generator load. It has a current of 50A and an output of 720W, automatically switching between solar and generator power for continuous charging. Designed for the environmentally conscious user, it strikes a balance between energy efficiency and spaciousness and performance. Transform sustainable energy with Renogy’s cutting-edge technology.
| Renogy IP67 50A DC-DC Battery Charger with MPPT | |||
|---|---|---|---|
| Electrical Specifications | Electrical Specifications | ||
| System Voltage | 12V / 24V – 12V / 24V | Solar Input Voltage | 50 VDC |
| Output Voltage | 9–32 VDC | Alternator Input | 9–32 VDC |
| Max Output Current | 50A @ 12V；25A @ 24V | Output Power | 720W |

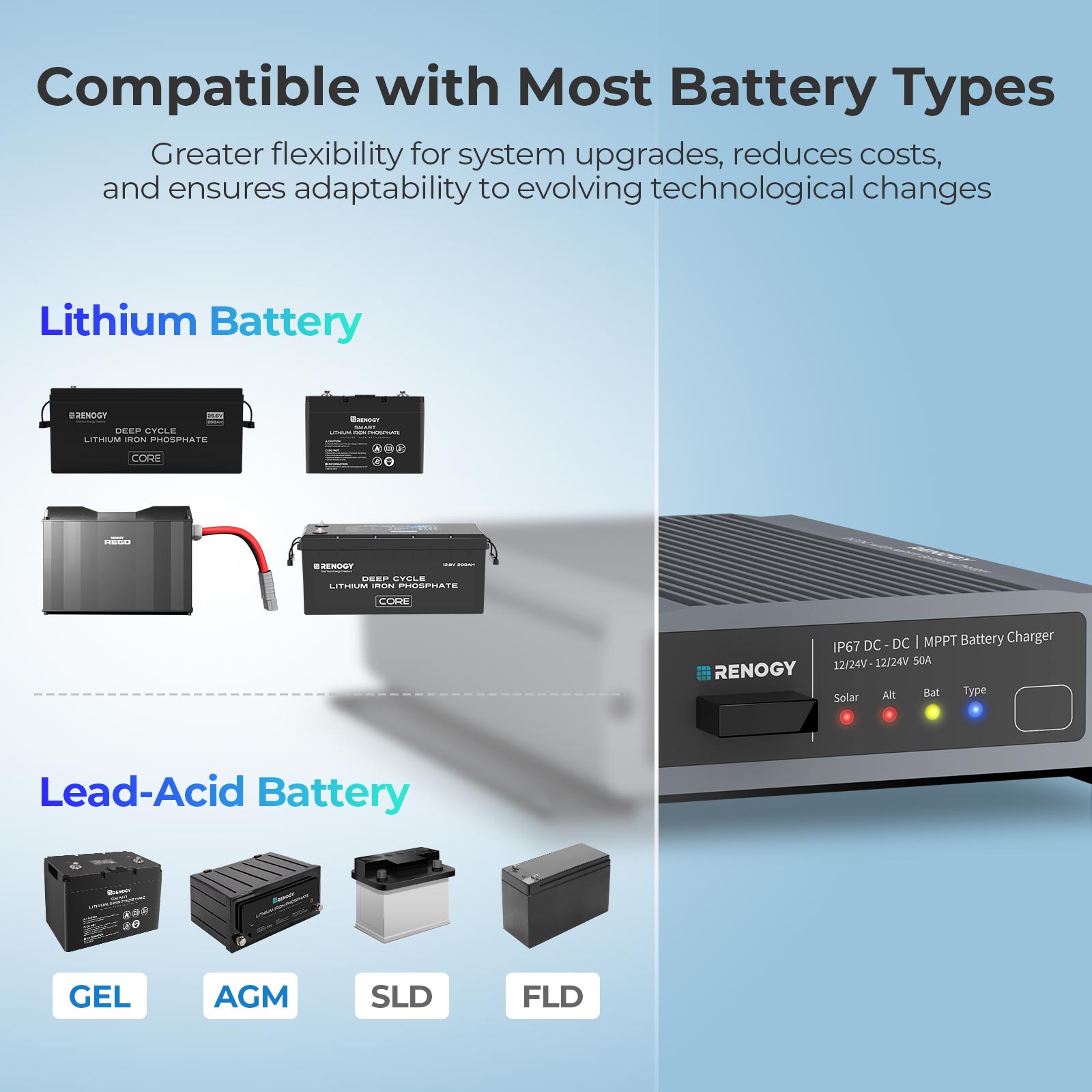

| Battery Types | AGM/SLD, GEL, FLD, LI, USER | ||
| Input Fuse Rating | 75A–100A | Output Fuse Rating | 75A–100A |
| Charging Efficiency | 0.97 | Temperature Compensation | -3mV/°C/2V (Non-Lithium); 0mV/°C/2V (Lithium) |

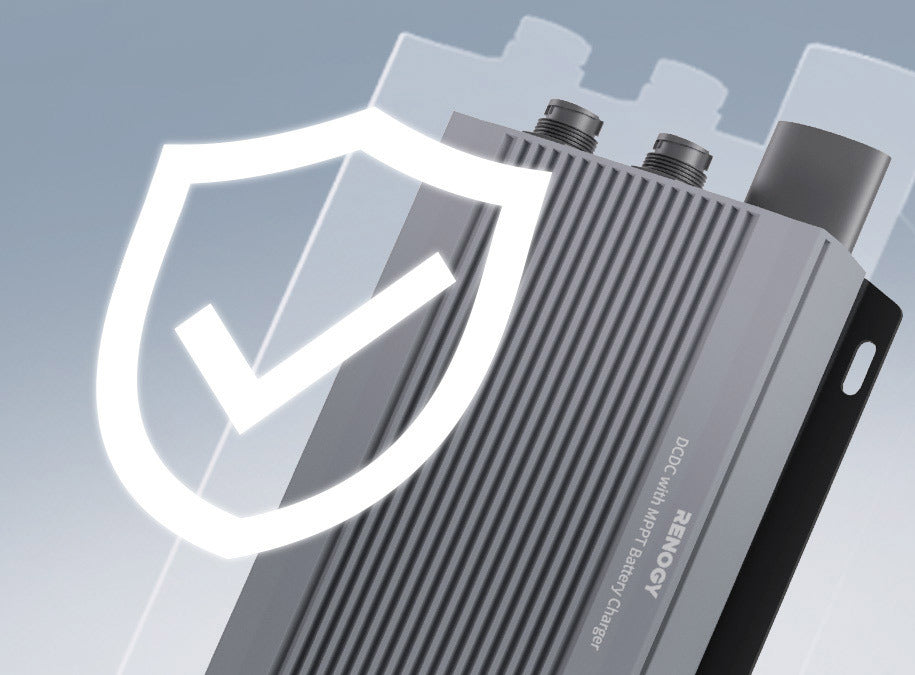

| Idle Power Consumption | <100mA | Protection | Reverse Polarity, Overvoltage, Over Discharge, Overcurrent, Over Temperature |
| General Data | Environmental & Mechanical | ||
| Terminal Range | 8AWG–4AWG | Communication Protocol | Modbus, RV-C |

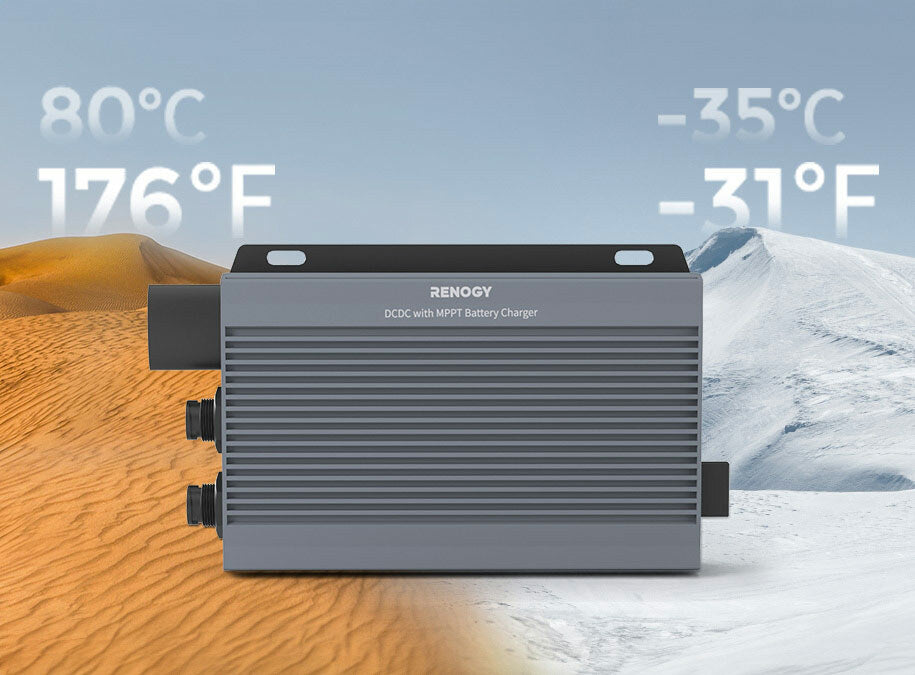

| Operating Temperature | -31℉ to 176℉ / -35℃ to 80℃ | Storage Temperature | -40℉ to 176℉ / -40℃ to 80℃ |
| Humidity | 0%–95%, No Condensation | Max Operating Altitude | 3,500 m |
| Enclosure Rating | IP67 | Dimensions | 7.01 x 4.78 x 1.47 in / 178.2 x 121.5 x 37.5 mm |
| Weight | 4.10 lb / 1.86 kg | Certifications | CE, RoHS, FCC Part 15 Class B |
| Warranty | 2-Year Material Warranty | ||
