120W ShadowFlux Anti-shading N-Type Solar Panel

Revolutionize your solar setup with the market’s first N-Type solar panel, powered by advanced ShadowFlux anti-shading technology for stable, uninterrupted performance—day or night.
  • Maximizes output in partial shading with ShadowFlux technology.

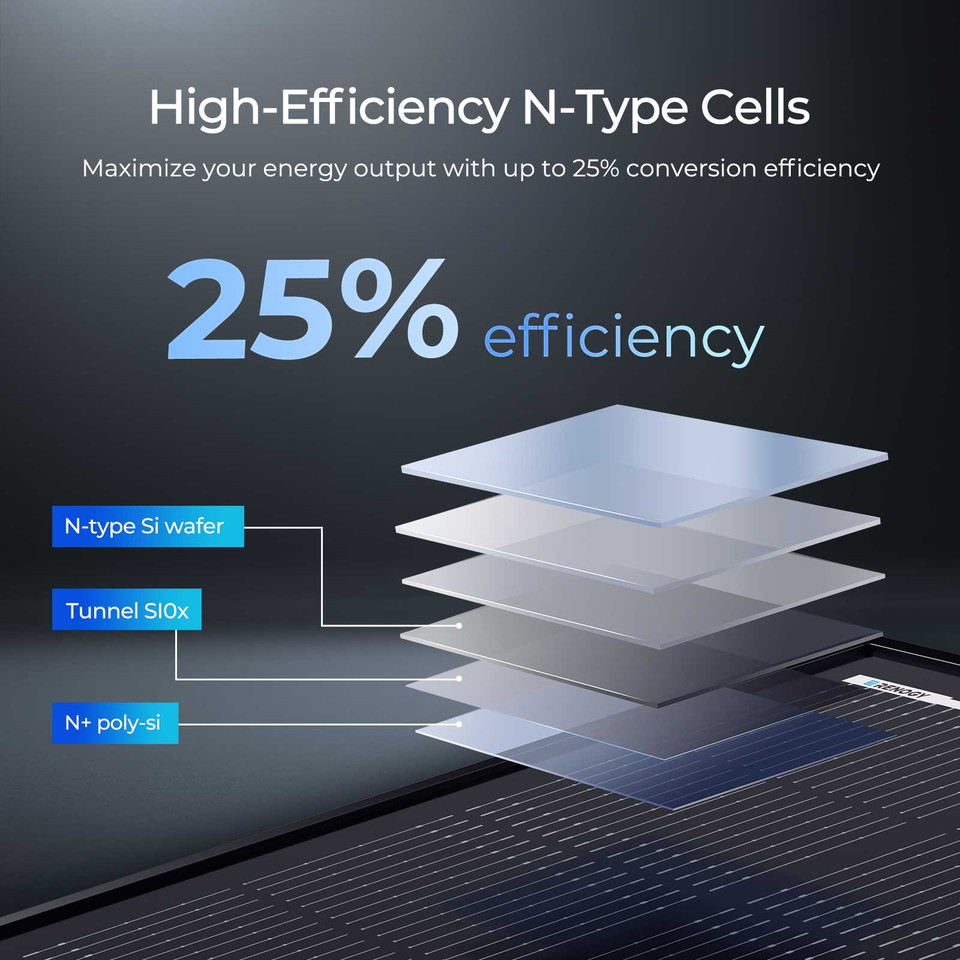

  • 25% efficiency with anti-hotpsot tech for less overheating.
  • 10% smaller, 10% lighter than other panels for easy install.
  • Rated ≥IP67 for protection against to water, dust, and stress.
  • Consistent 33.69V VOC output – even when partially shaded.

Description

120W ShadowFlux Anti-shading N-Type Solar Panel
Revolutionize your solar setup with the market’s first N-Type solar panel, powered by advanced ShadowFlux anti-shading technology for stable, uninterrupted performance—day or night.

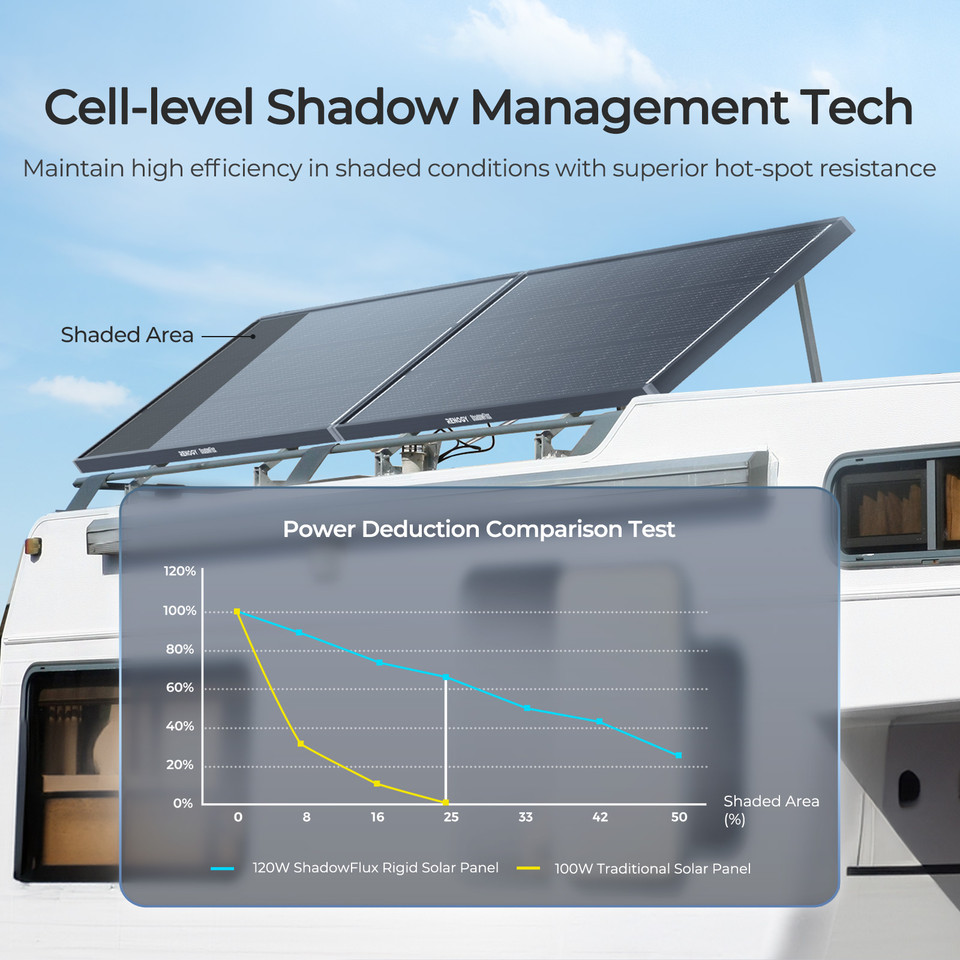

Cell-Level Shadow Management Technology
Innovative cell optimization minimizes energy loss, ensuring every cell operates at its full potential.
Built to Perform, Even in the Shade
From dappled shadows to snow-covered days, ShadowFlux technology guarantees maximum power output, eliminating concerns over shading or debris.
Compact Panels, Maximum Output
Engineered for high efficiency in a smaller footprint, these panels pack serious power without the bulk.
No More Shading Worries
Delivering stable power output, this panel excels in varying sunlight angles or partially shaded environments.

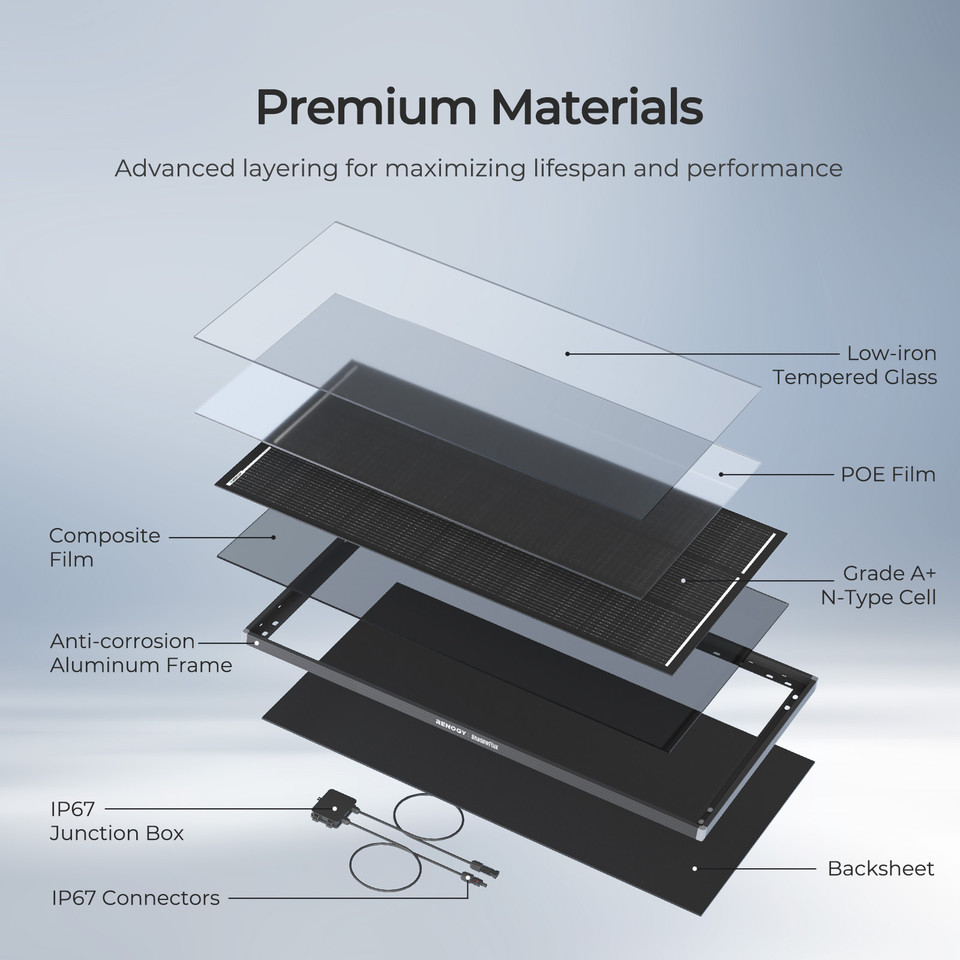

Stronger Frames for Enhanced Durability
Built with a 1.1mm thick aluminum alloy frame, this panel offers superior protection and longevity, even in extreme weather.

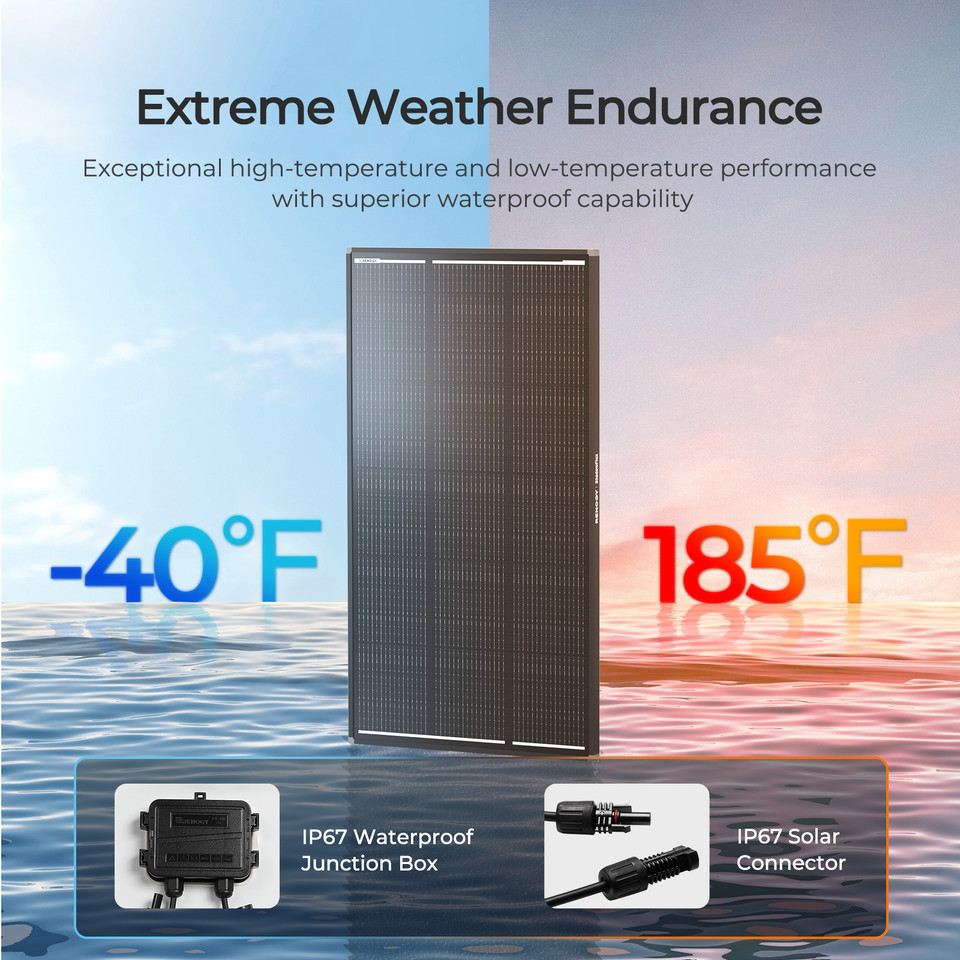

Power That You Can Rely On
Designed to withstand heavy snow loads and strong winds, ShadowFlux ensures consistent, dependable energy in even the harshest of conditions.
Enhanced Hot-Spot Resistance
Advanced cell-level technology prevents performance dips from hotspots caused by dirt, shading, or physical damage.
Effortless Setup, Every Time
Pre-drilled mounting holes make installation straightforward, perfect for both first-time and experienced users.
Your Off-Grid Solution for Any Adventure
Perfect for RVs, motorhomes, backyards, or sailboats, ShadowFlux panels are your ultimate partner for creating energy independence in any scenario.
Superior Packaging for Maximum Protection
Featuring enhanced padding and secure wrapping to safeguard your purchase every step of the way.

Specifications

Max Power at STC
120W

Open Circuit Voltage
33.69V

Short Circuit Current
4.57 A

Optimum Operating Voltage
28.89V

Optimum Operating Current
4.21A

Maximum System Voltage
1000VDC

Maximum Series Fuse Rating
15A

Operating Temperature
-40°F~185°F / -40℃~85℃

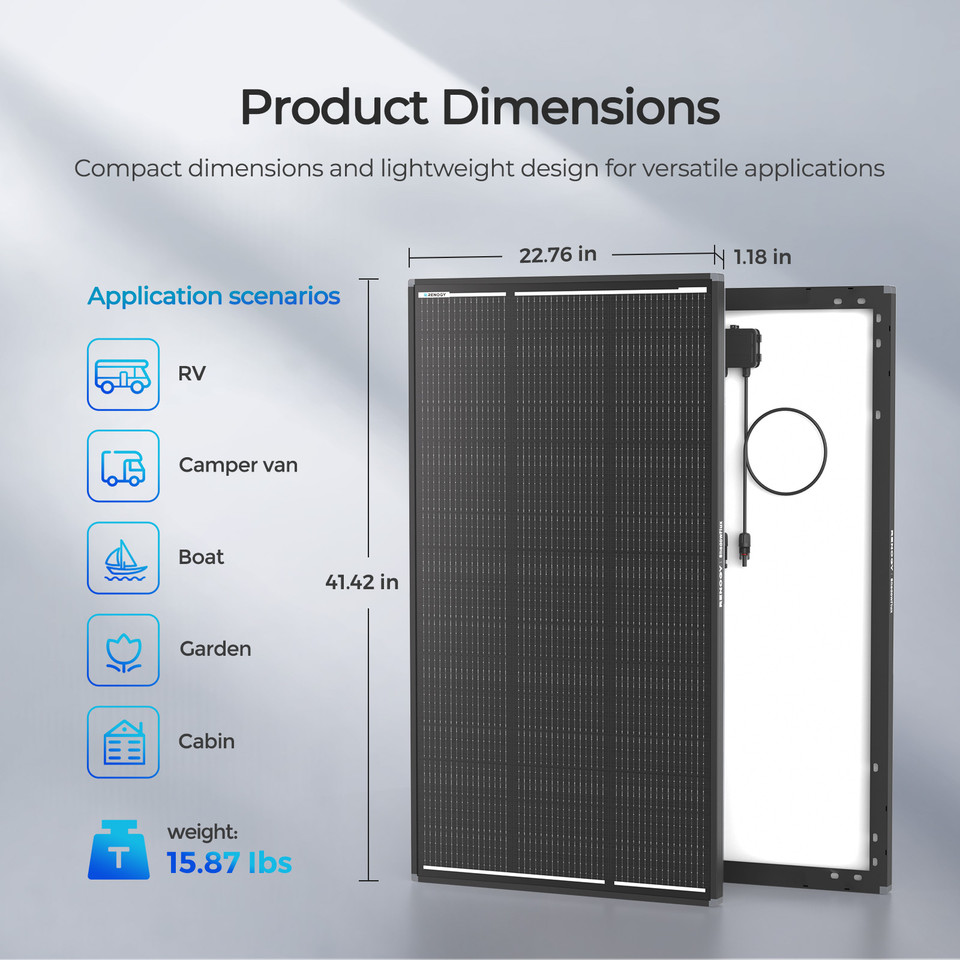

Dimensions
1052*578*30mm/41.42*22.76*1.18inch

Weight
6.80kg/15.87lb

Material and workmanship warranty
5-year warranty

Performance Warranty
25-year 80% output warranty
