It works with most curved surfaces, bending up to 240 degrees.
Presenting an all-black glare-free appearance.

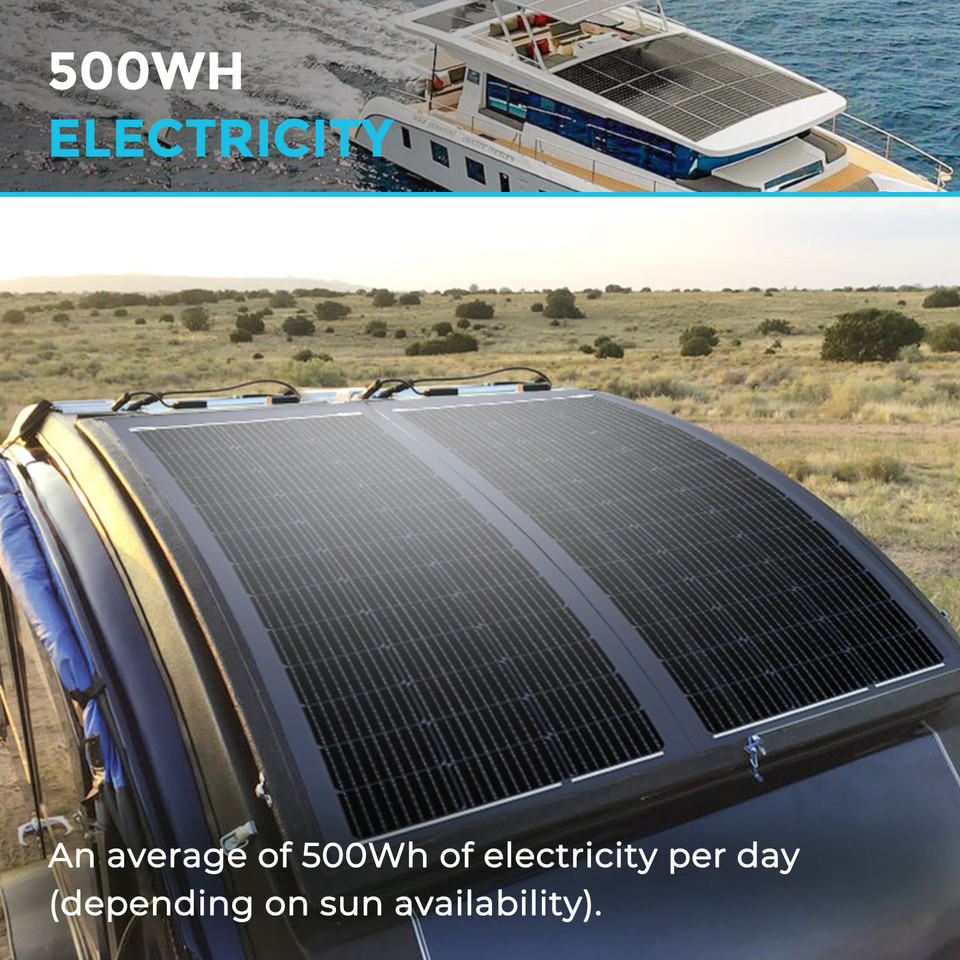

This Renogy solar panel provides an average of 500 watt-hours of electricity per day, depending on sunlight.
It offers 5-year material and workmanship warranty and has passed the CE test.

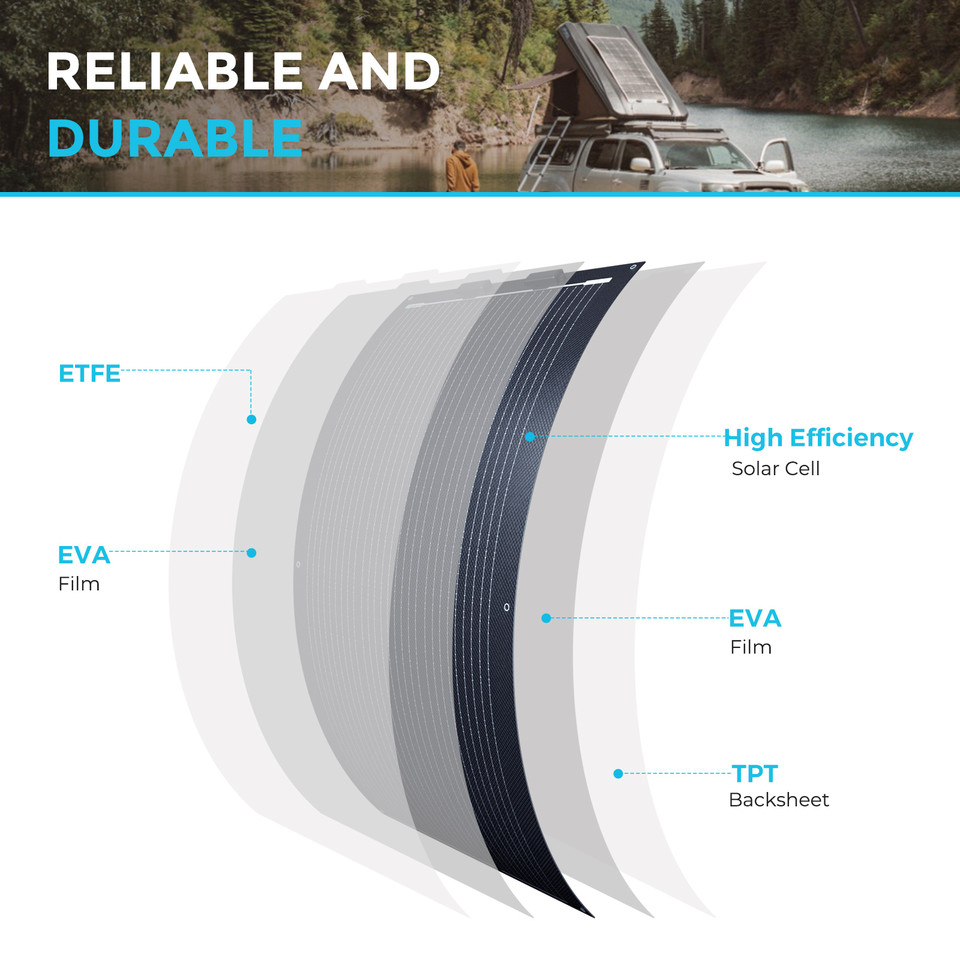

This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.
Withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind load.
Provide excellent durability in a harsh environment.
When there is no sunlight, the diode prevents reverse current flow from the battery to the solar panel, protecting the panel from current damage.
This Renogy solar panel comes with pre-drilled holes for quick installation. Besides, it can also be bonded to the surface by using silicone adhesive or velcro.
The 2.3-foot solar connector cables ensure no length limitations.
The IP67 rated waterproof junction box and solar connectors ensure that water and dust will not enter during extended outdoor use.
Cables attached on the back with Solar Connectors are ready for connection and extension.
| Built-in Components | |
|---|---|
| Black Division 100W Lightweight Monocrystalline Solar Panel | Output Cables: 12 AWG (2.3ft per cable) |

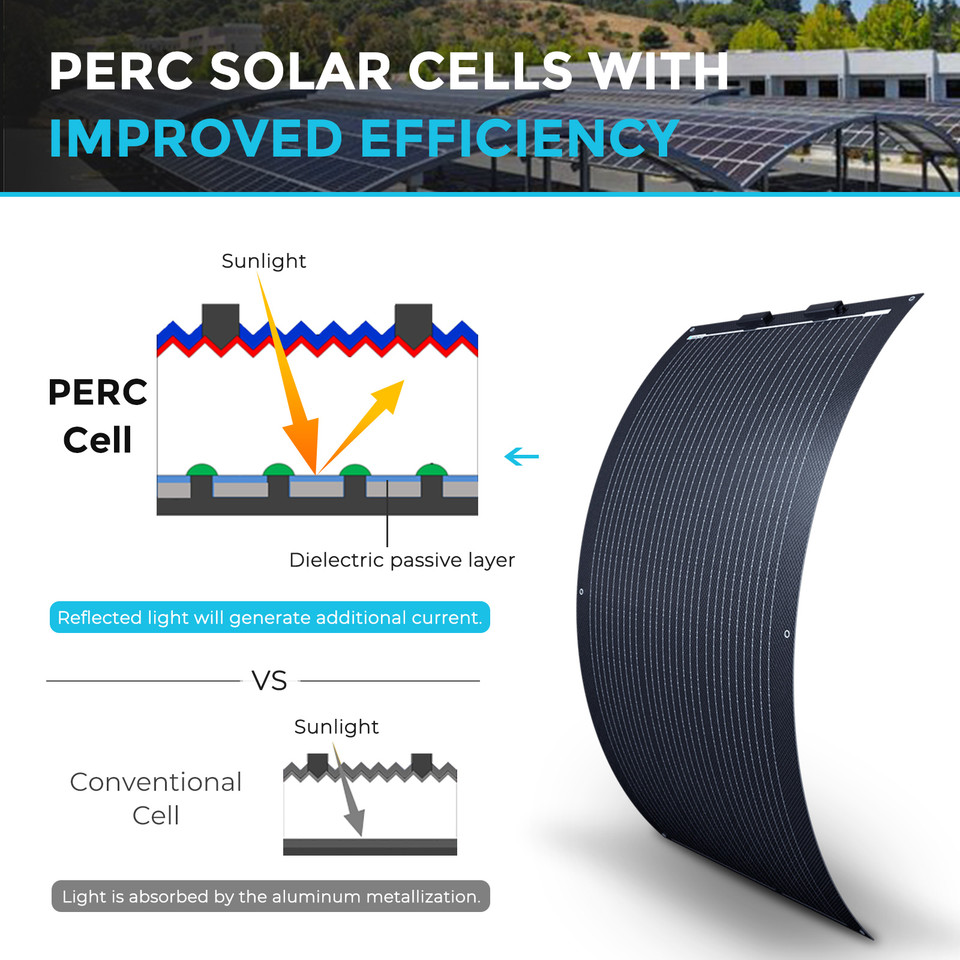

| Cell Type: PERC Monocrystalline (6.5 x 3.3 in) | Number of Cells: 36 (12 x 3) |
| Junction Box: IP 67 | Fire Rating: Class A |
| Specifications | |
|---|---|
| Maximum Power at STC: 100W | Module Efficiency: 15.7% |
| Optimum Operating Voltage (Vmp): 19.4V | Open-Circuit Voltage (Voc): 23.5V |
| Optimum Operating Current (Imp): 5.20A | Short-Circuit Current (Isc): 5.51A |
| Operating Temperature: -40℃ to 80℃ (-40℉ to 176℉) | Maximum Series Fuse Rating: 15A |
| Maximum System Voltage: 600V DC | Rated Current (MC4 Solar Connectors): 35 A |

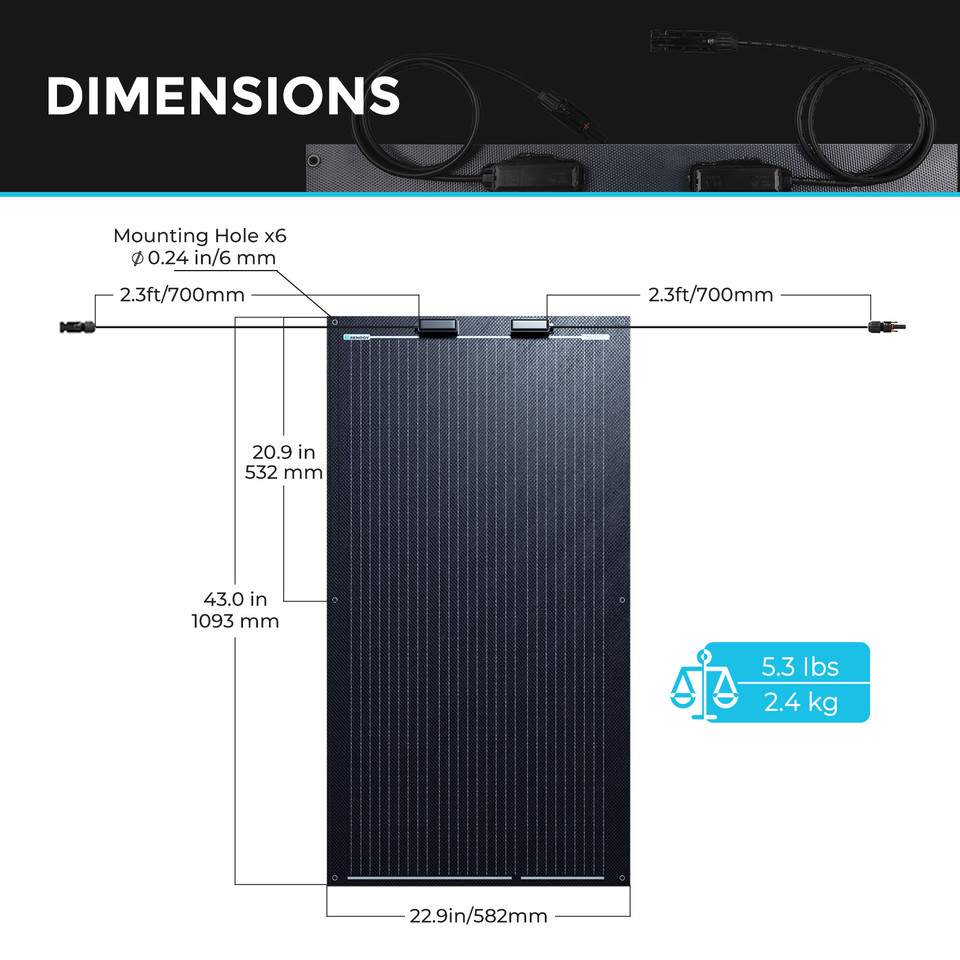

| Weight: 2.4 kg / 5.3 Lb | Dimensions: 1093.0 x 582.0 x 3 mm (43 x 22.9 x 0.1 in) |
| Maximum AWG Size Range (MC4): 10 AWG | Certifications: CE, ISO |
| Material and workmanship warranty: 5 years | Performance：5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty |
