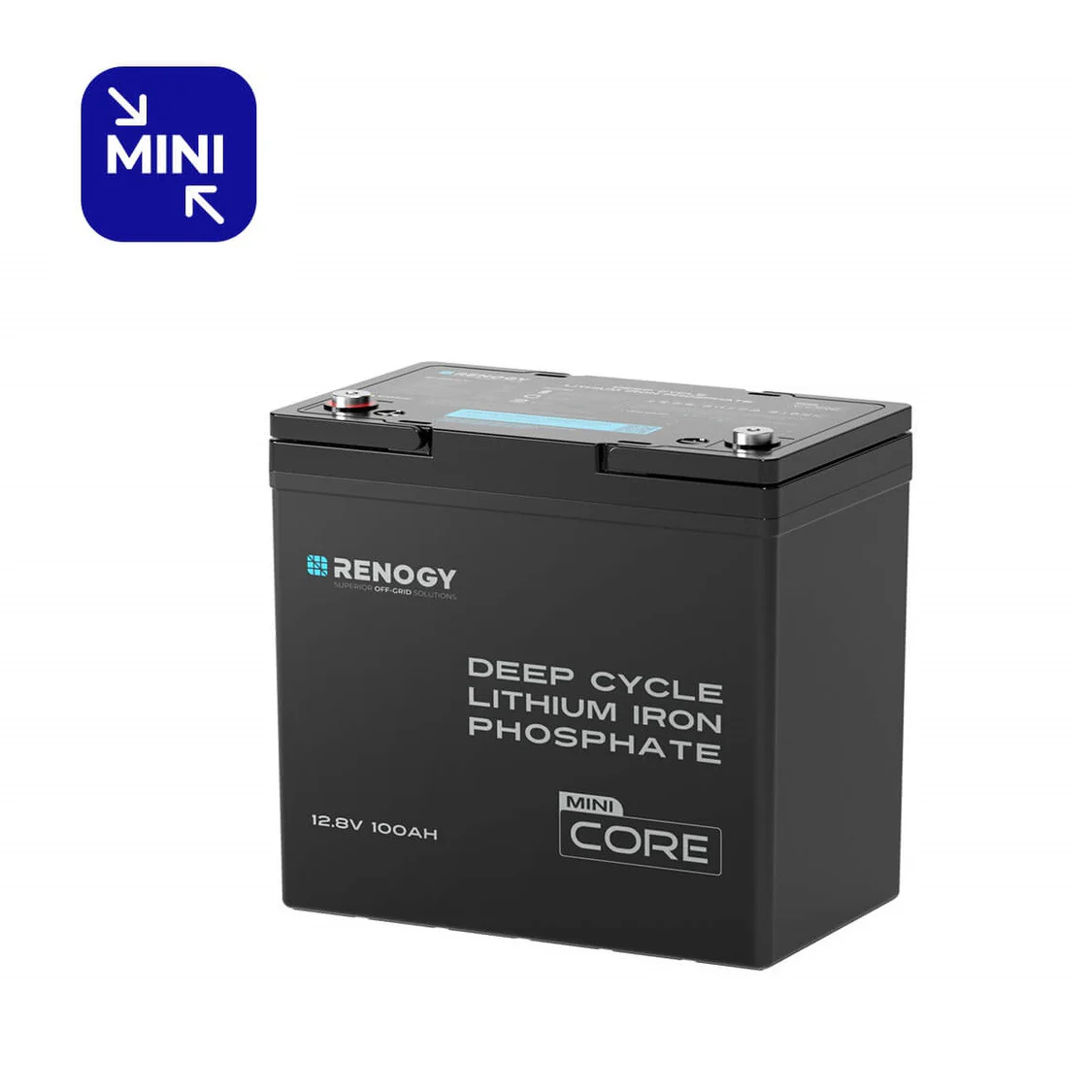

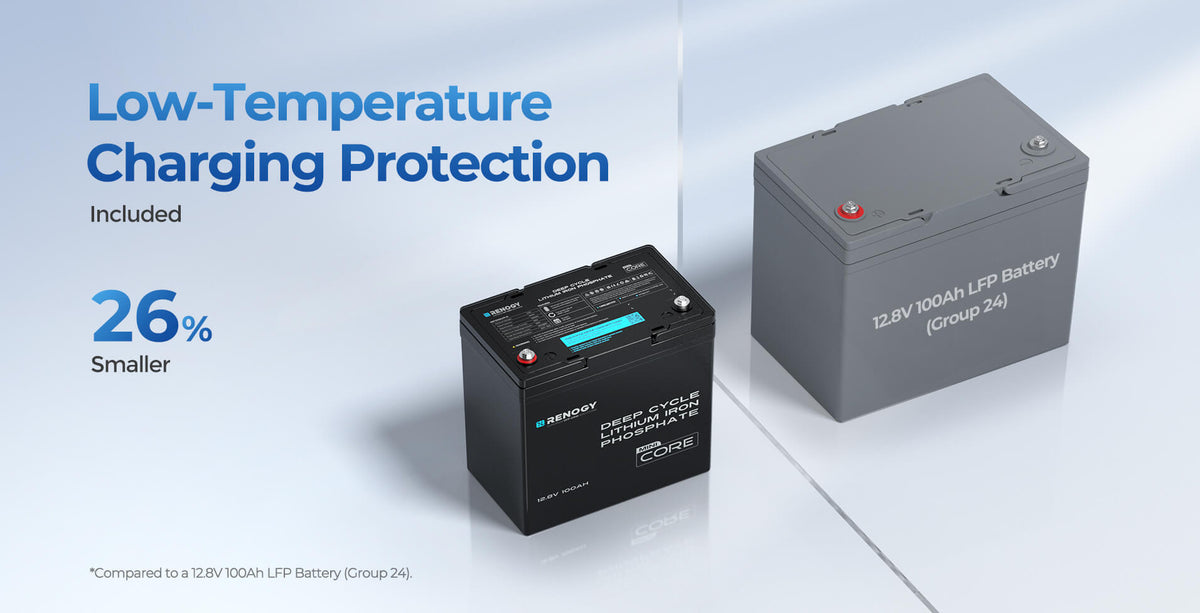

Introducing the Core Mini: Renogy’s most compact 12.8V 100Ah LiFePO4 battery, delivering maximum power in half the space.
Revolutionary in size yet uncompromising in performance, the Core Mini packs full-sized power into a package half the size of a traditional Group 31 battery. Perfect for space-conscious installations in teardrop trailers, kayaks, and other compact spaces, this powerhouse opens new possibilities for outdoor adventures.

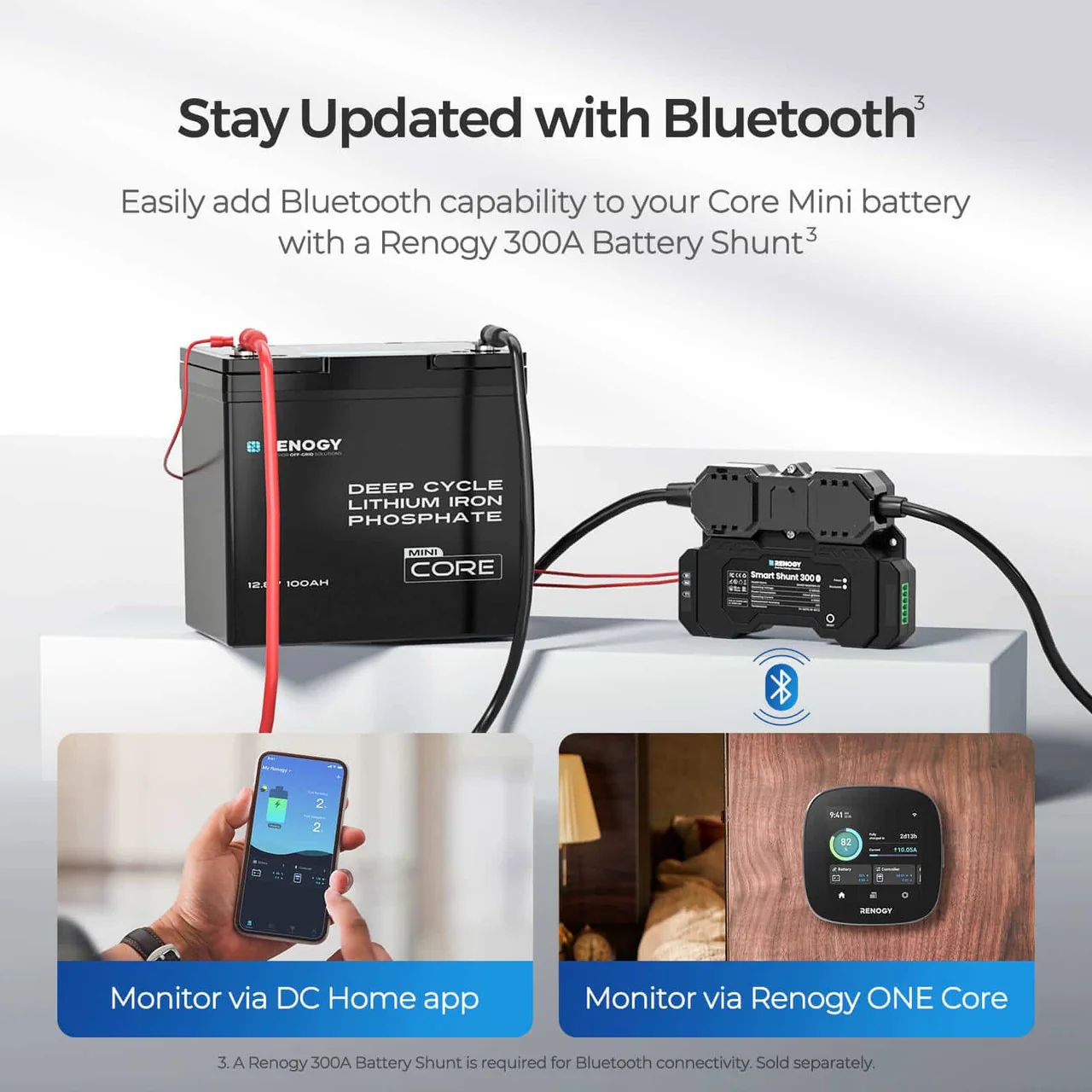

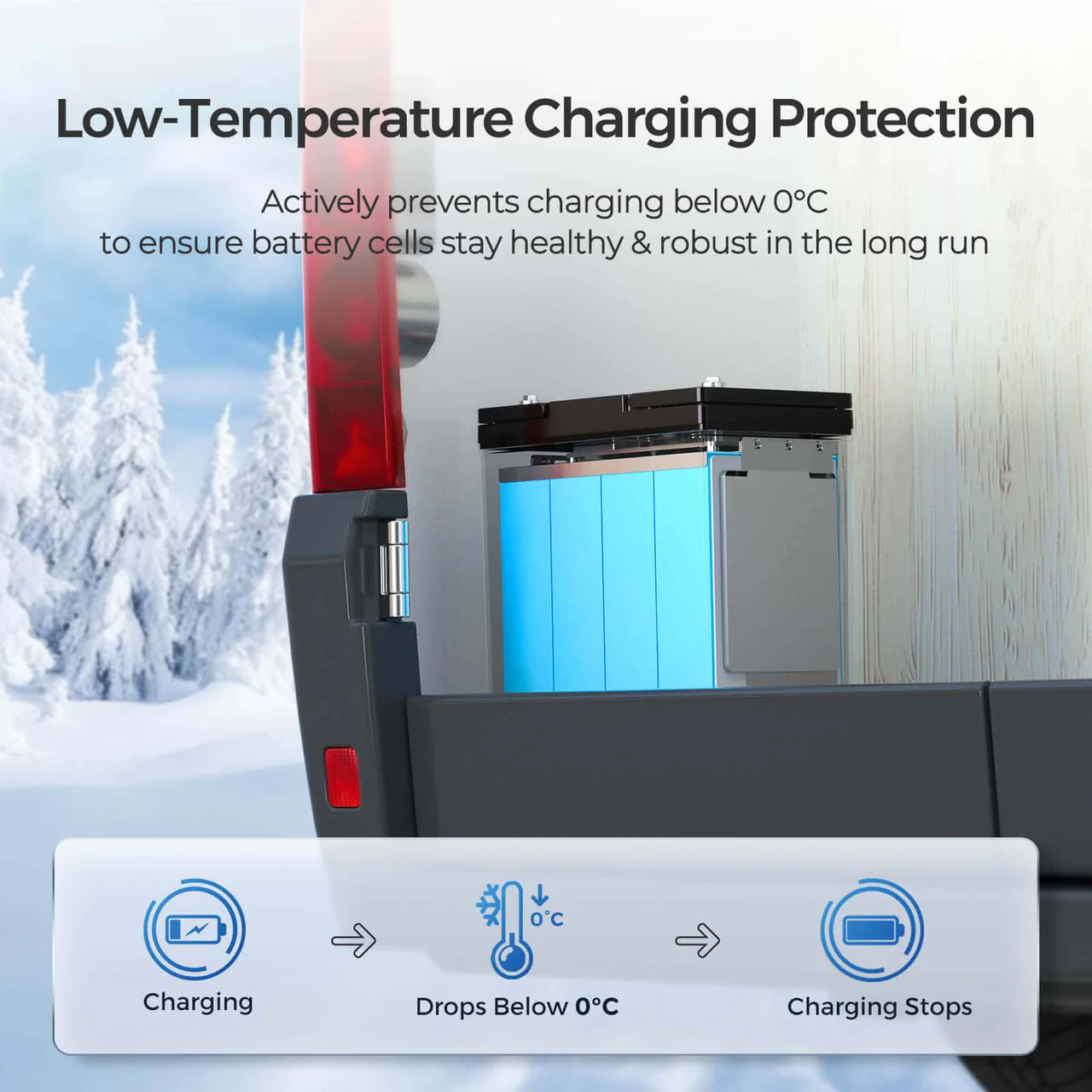

Built for the demands of outdoor life, the Core Mini features: Advanced low-temperature charging protection for safe winter operation IP65-rated weatherproof construction Vibration-resistant design for rough terrain Seamless integration with the DC Home app or Renogy ONE when paired with a Renogy 300A Battery Shunt (sold separately)

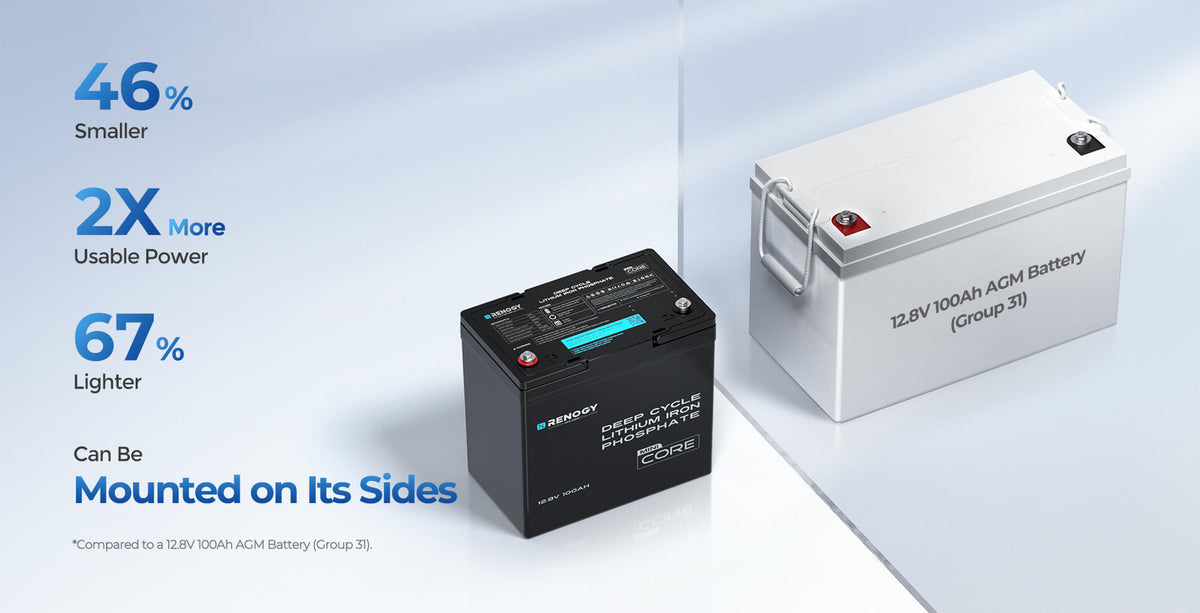

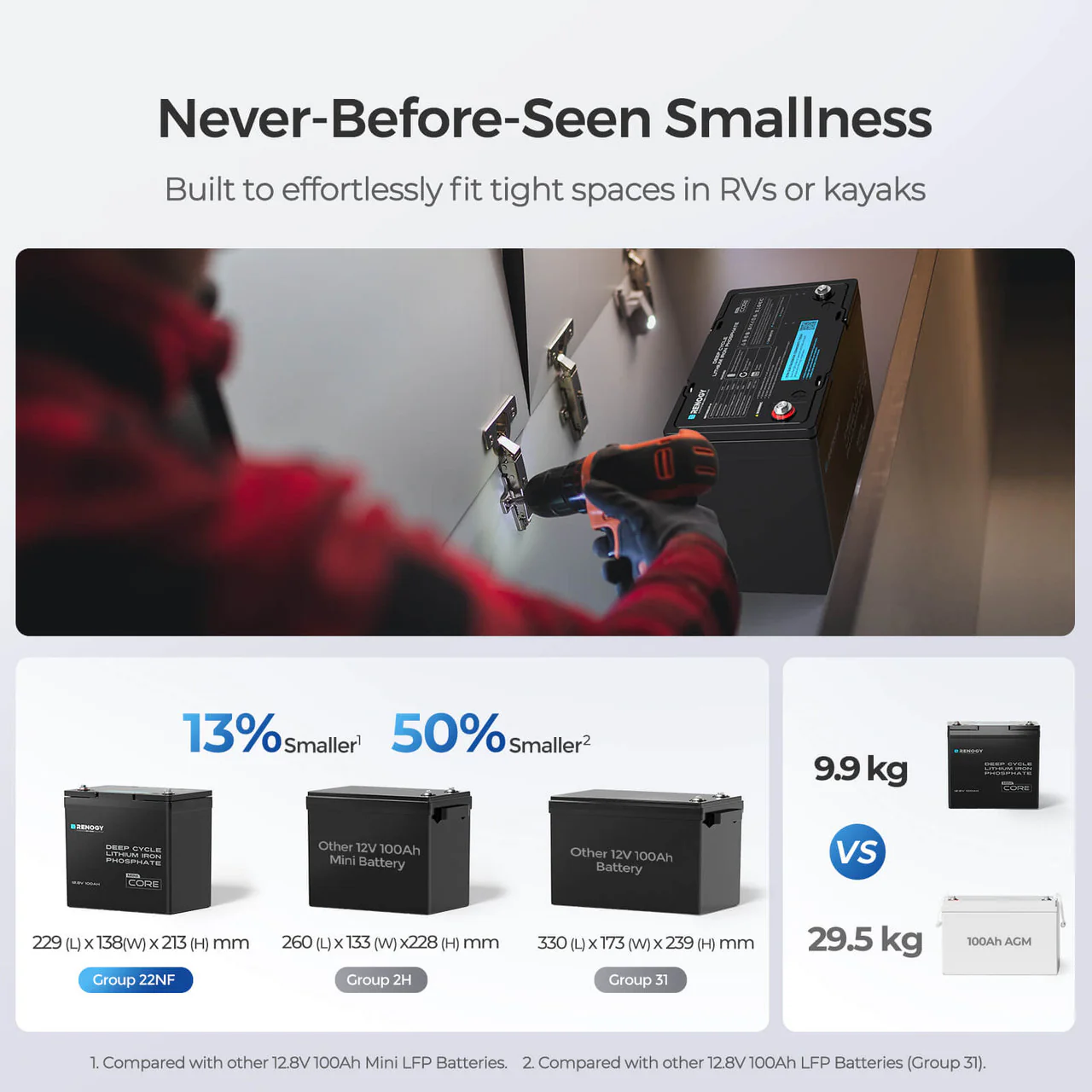

Lead-Acid vs Core Mini
Same power output in a lighter, more compact design
The Compact Advantage
Next-gen design with premium safety and full power

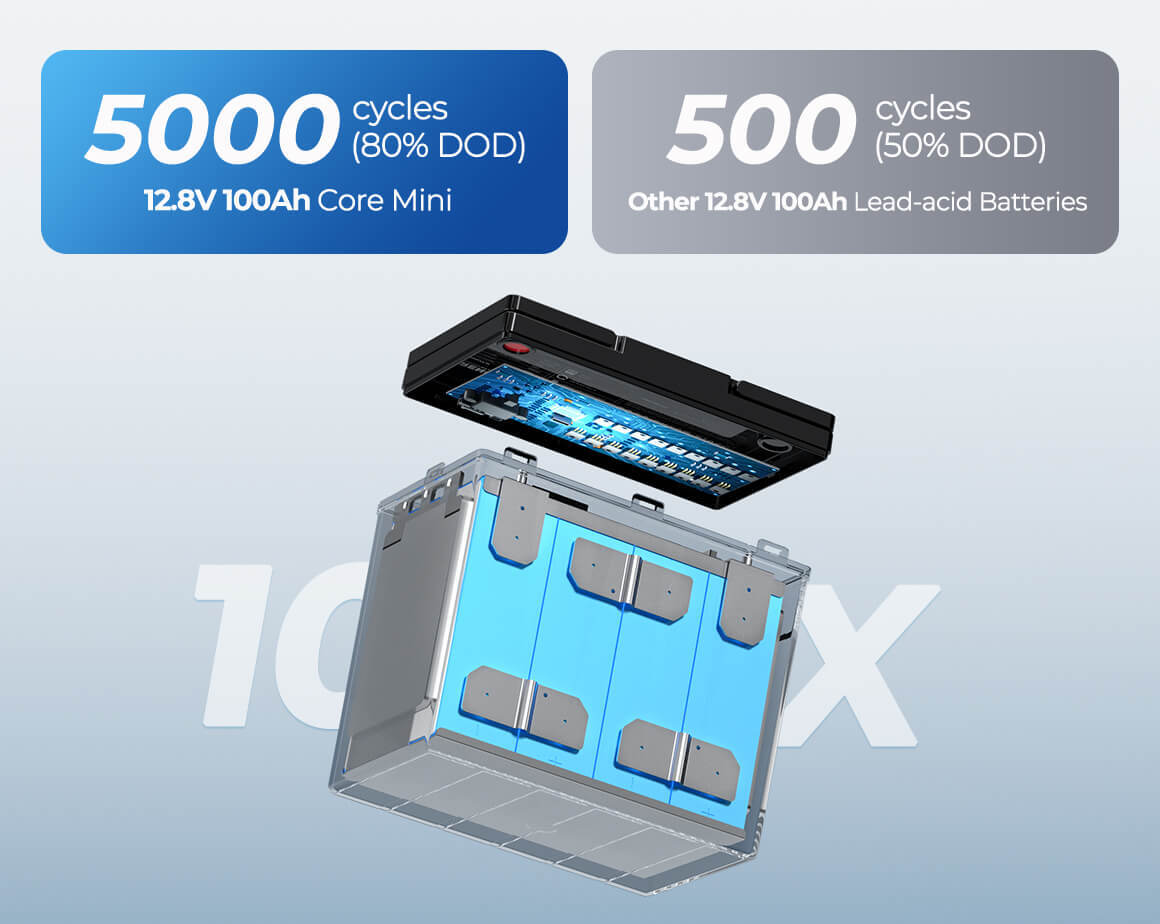

10X More Battery Life
Premium EV-grade cells deliver 5000 cycles at 80% discharge – outperforming traditional lead-acid batteries in both lifespan and reliability

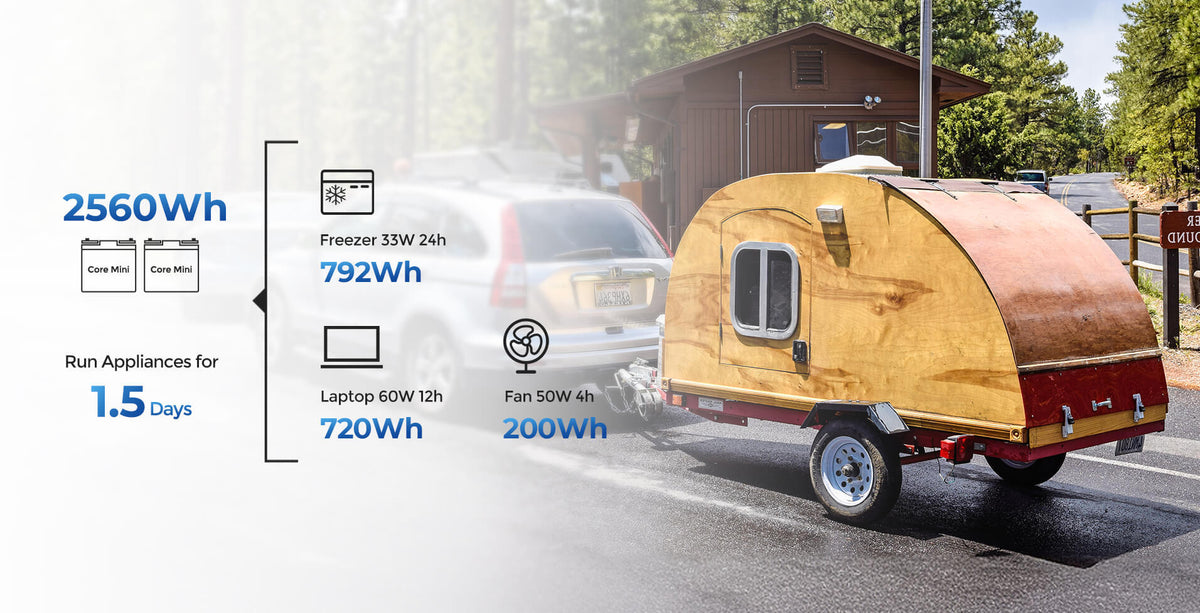

Compact Power for Endless Adventure
The perfect power solution for teardrop trailers and compact RVs

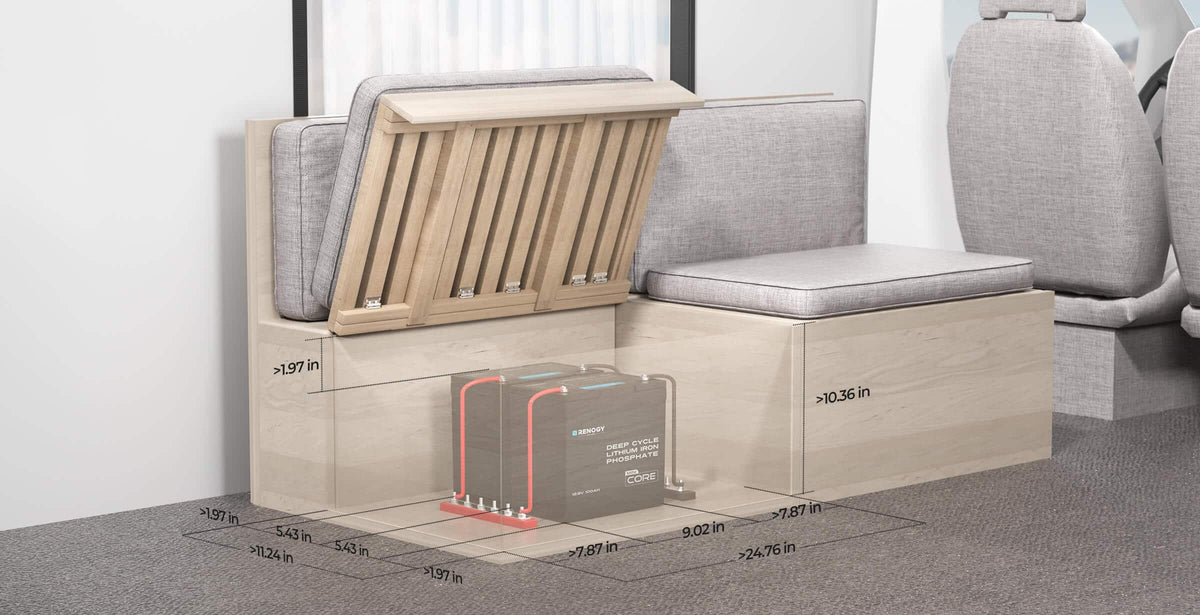

Sizing Guide
Before installing the battery, please note that you need to leave 50-100 mm (1.97-3.94 in) for the top of the battery; the side with busbars needs to be left at least 200 mm (7.87 in).
Additional information
Specifications
Battery Type
Lithium Iron Phosphate
Nominal Voltage
12.8V
Rated Capacity
100Ah (0.5C, 25℃)
Voltage Range
10V to 14.8V
Dimensions
229 x 138 x 213 mm / 9.02 x 5.43 x 8.39 in
Weight
21.8 lbs / 9.9 kg
Connection Method
Series & Parallel (4S4P)
Maximum Charge Current
100A
Maximum Discharge Current
100A
Protection Rating
IP65
Charge Temperature Range
32°F to 122°F (0°C to 50°C)
Discharge Temperature Range
-4°F to 140°F (-20°C to 60°C)
Storage Temperature Range
-13°F to 149°F (-25°C to 65°C)
Terminal Bolt Size
M8 x 1.25 x 12 mm
Recommended Terminal Torque
88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m
Peak Discharge Current
300A@5s
Cycle Life (0.5C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
